Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744203CMC 500UH 400MA 4LN SMD |
385 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 500 µH @ 100 kHz | 400mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
7446122001CMC 1MH 2A 2LN TH |
2,015 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

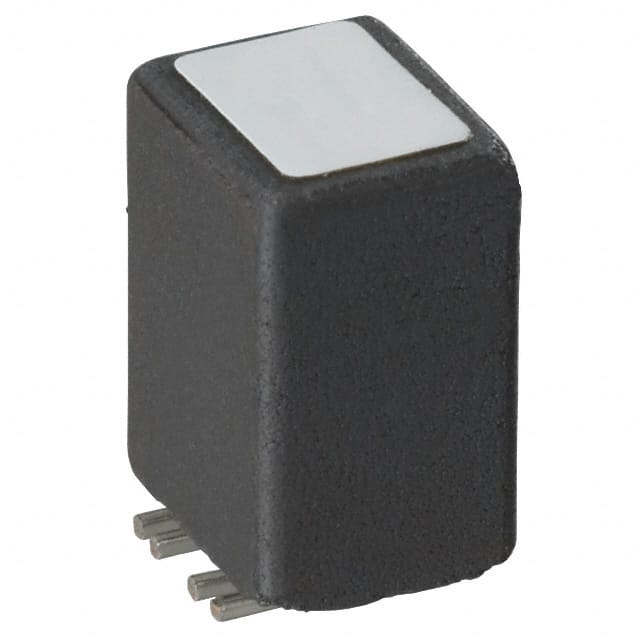

CM2722R201R-10CMC 5A 4LN 200 OHM SMD |
9,216 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 200 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82734R2322B030CMC 6.8MH 3.2A 2LN TH |
320 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 3.2A | 85mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
744272472CMC 4.7MH 350MA 2LN 13K OHM SMD |
11,422 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 13 kOhms @ 1 MHz | 4.7 mH @ 100 kHz | 350mA | 720mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMS1-3-RCMC 12.6UH 4.1A 2LN SMD |
4,979 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 12.6 µH @ 100 kHz | 4.1A | 77mOhm | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
744272222CMC 2.2MH 750MA 2LN 7.5K OHM SMD |
946 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 7.5 kOhms @ 4 MHz | 2.2 mH @ 100 kHz | 750mA | 300mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272392CMC 3.9MH 520MA 2LN 9.6K OHM SMD |
826 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 9.6 kOhms @ 3 MHz | 3.9 mH @ 100 kHz | 520mA | 540mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SH-432CMC 30UH 2.4A 2LN TH |
303 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 2.4A | 51mOhm | 50V | - | -25°C ~ 60°C | - | - | - | - | - |
|
M-532CTCMC 500MA 3LN SMD |
1,307 |
|
Datasheet |
Vertical, 6 Gull Wing | Signal Line | 3 | - | - | 500mA | 90mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
RN204-2-02-1M1CMC 1.1MH 2A 2LN TH |
528 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 57mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
CMS2-11-RCMC 700UH 800MA 2LN SMD |
6,959 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 700 µH @ 100 kHz | 800mA | 230mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
SN8D-500CMC 125UH 2A 2LN TH |
1,634 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 125 µH @ 100 kHz | 2A | 100mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
PAC6006.503NLTCMC 17A 2LN 350 OHM SMD |
1,180 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 350 Ohms @ 3.4 MHz | - | 17A | 1.8mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PM3927NLTIND CMC 800UH 3A |
1,112 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3A | 27mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82723A2402N001CMC 2.7MH 4A 2LN TH |
839 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 4A | 60mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PAC6006.604NLTCMC 6.7A 2LN 2.5K OHM SMD |
286 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 2.5 kOhms @ 3.9 MHz | - | 6.7A | 15mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
APPM00151365432XY0CMC 5A 2LN 4.3K OHM SMD AEC-Q200 |
685 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 4.3 kOhms @ 30 MHz | - | 5A | 21mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PAC6006.204NLTCMC 12A 2LN 1K OHM SMD |
1,012 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 1 kOhms @ 7 MHz | - | 12A | 4.8mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

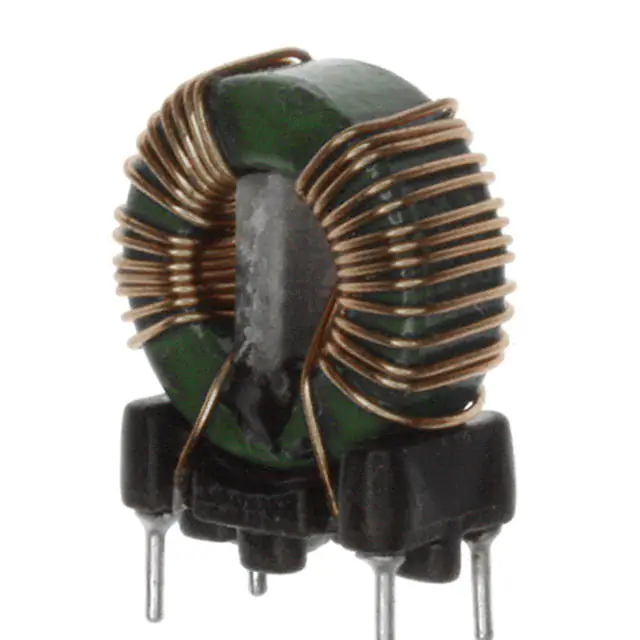

744841210CMC 100UH 1.5A 2LN TH |
1,389 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 10 kHz | 1.5A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
