Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82731M2112A030CMC 10MH 1.1A 2LN TH |
3,694 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.1A | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PA2754NLCMC 10A 2LN SMD |
1,623 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 10A | 3.75mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
B82732R2112B030CMC 15MH 1.1A 2LN TH |
1,270 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.1A | 440mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82721A2362N001CMC 400UH 3.6A 2LN TH |
1,972 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 3.6A | 35mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82723J2402N001CMC 2.7MH 4A 2LN TH |
1,462 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 4A | 60mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82721K2202N001CMC 1MH 2A 2LN TH |
1,079 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

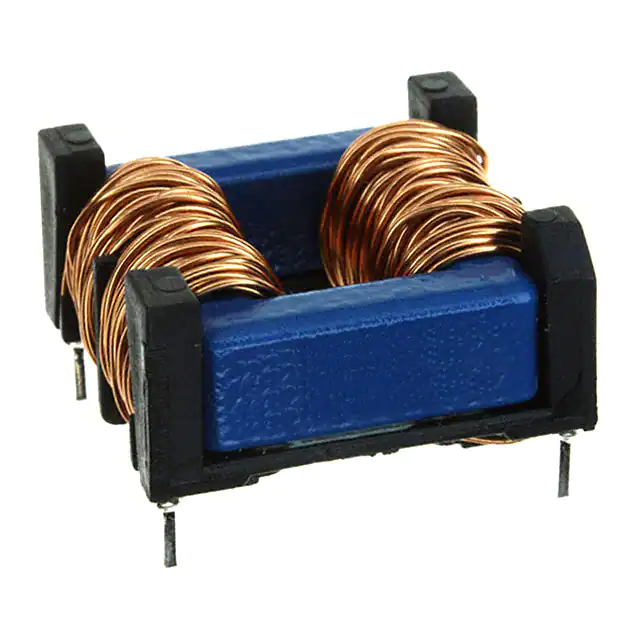

B82733F2232B001CMC 10MH 2.3A 2LN TH |
888 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.3A | 188mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82732F2162B001CMC 10MH 1.6A 2LN TH |
385 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.6A | 290mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82731M2182A030CMC 3.3MH 1.8A 2LN TH |
3,463 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.8A | 140mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721K2262N001CMC 400UH 2.6A 2LN TH |
562 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 2.6A | 55mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721A2262N001CMC 400UH 2.6A 2LN TH |
296 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 2.6A | 55mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
ECMT1V1717S-150-RCMC 15MH 1A 2LN TH |
2,452 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 1 kHz | 1A | 600mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SRF1206A-102YCMC 12.5UH 6A 2LN 1KOHM SMD |
1,484 |
|
Datasheet |
4-SMD | Power Line | 2 | 1 kOhms @ 100 MHz | 12.5 µH @ 100 kHz | 6A | 14mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
B82721K2152N001CMC 3.3MH 1.5A 2LN TH |
3,506 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 180mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721K2362N001CMC 400UH 3.6A 2LN TH |
636 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 3.6A | 35mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN218-1.7-02-6M8CMC 6.8MH 1.7A 2LN TH |
221 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.7A | 180mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721K2602N020CMC 200UH 6A 2LN TH |
164 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 6A | 15mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

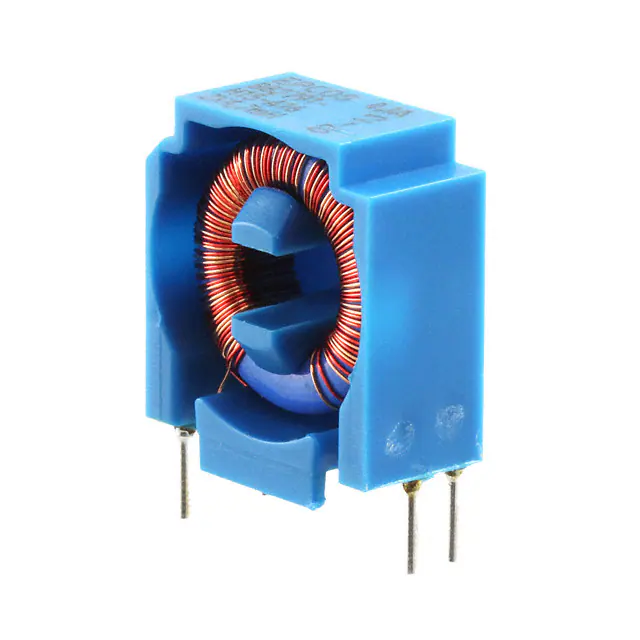

B82791H0015A016CMC 4.7MH 100MA 2LN TH |
595 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 100mA | 850mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

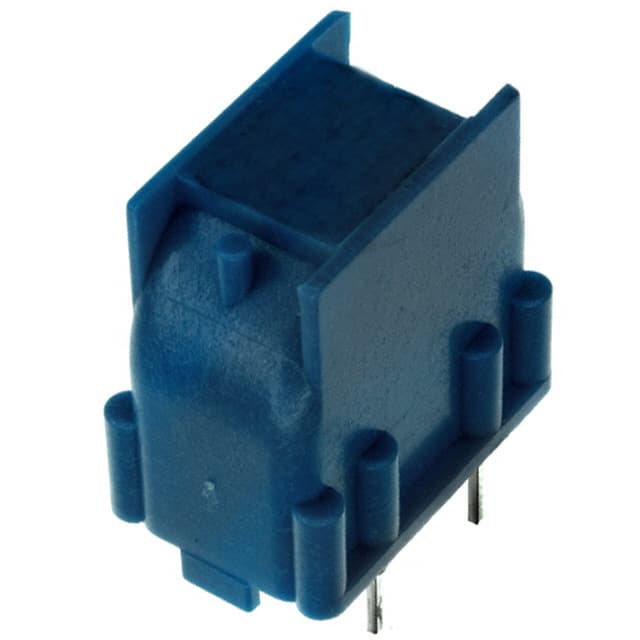

B82722J2202N001CMC 2.2MH 2A 2LN TH |
419 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
P0420NLTCMC 3.3A 2LN SMD |
2,205 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
