Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

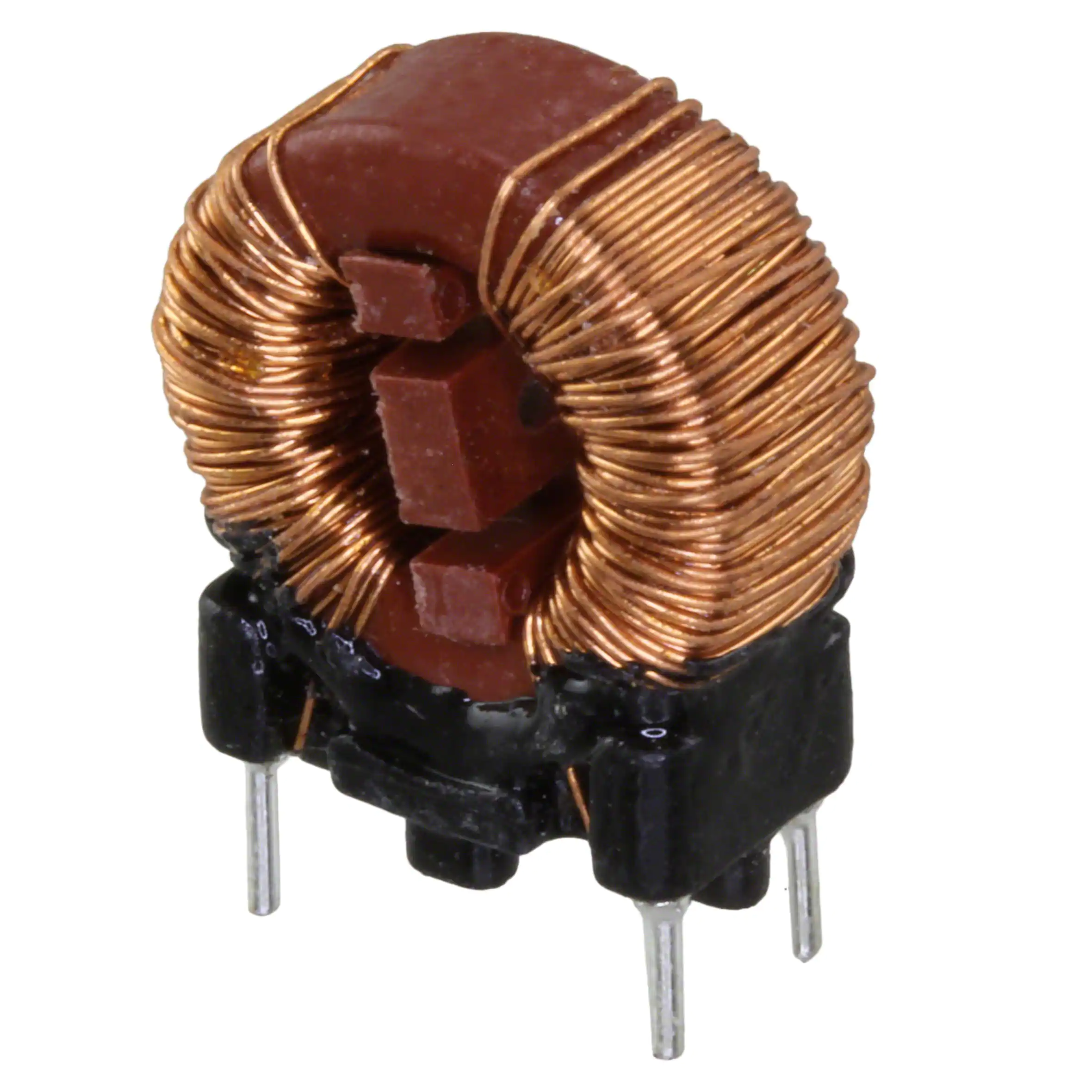

744821120CMC 20MH 500MA 2LN TH |
6,403 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 500mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82723A2602N001CMC 1MH 6A 2LN TH |
3,522 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

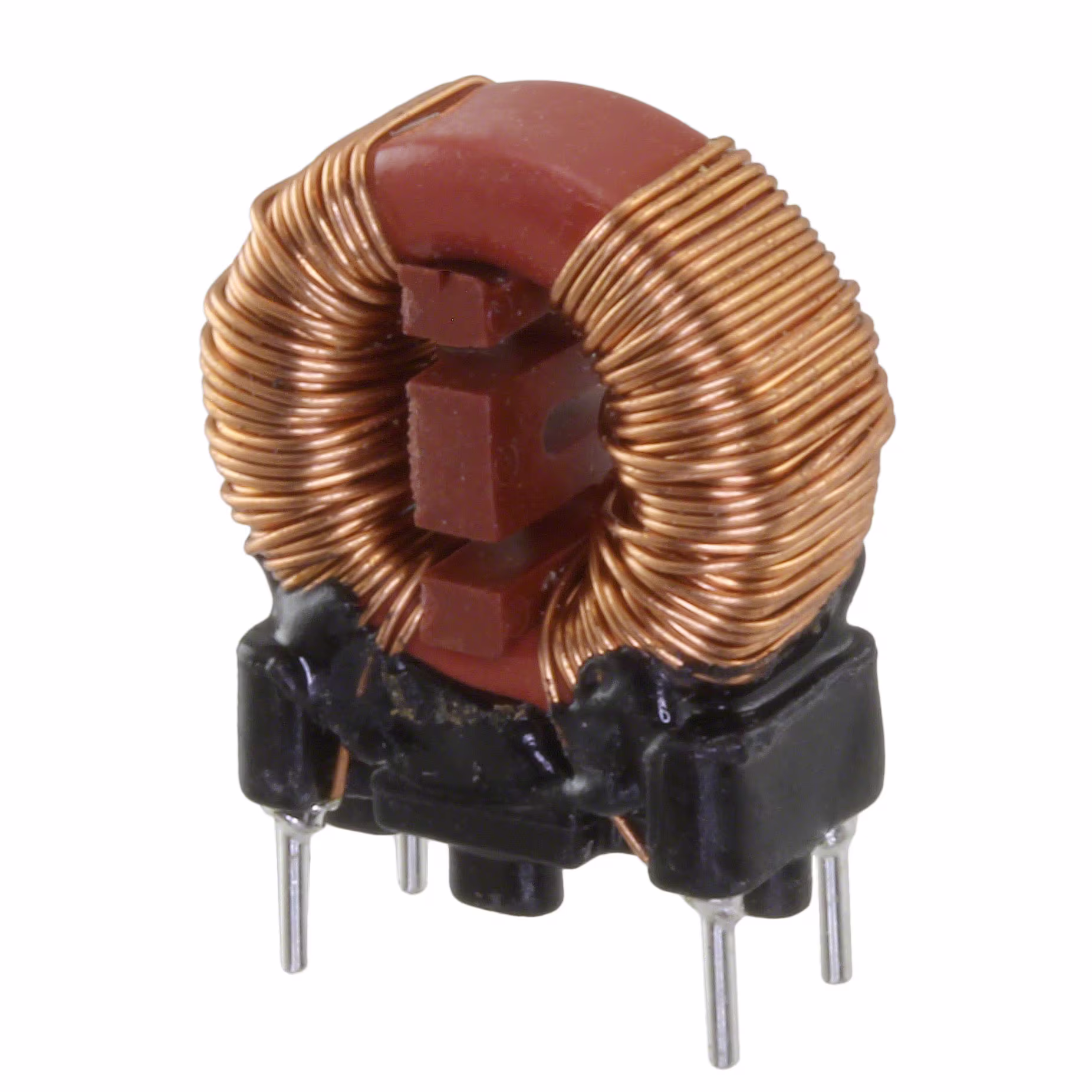

744821110CMC 10MH 700MA 2LN TH |
2,050 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 350mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744821240CMC 4MH 1.5A 2LN TH |
1,186 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 1.5A | 140mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744821201CMC 1MH 2A 2LN TH |
1,110 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 45mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
23Z104SMNLTCMC 4LN SMD |
192 |
|
Datasheet |
8-SOIC (0.265", 6.73mm Width) | Signal Line | 4 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
B82724J2602N041CMC 3.3MH 6A 2LN TH |
1,471 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6A | 25mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724J8162N040CMC 47MH 1.6A 2LN TH |
518 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.6A | - | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

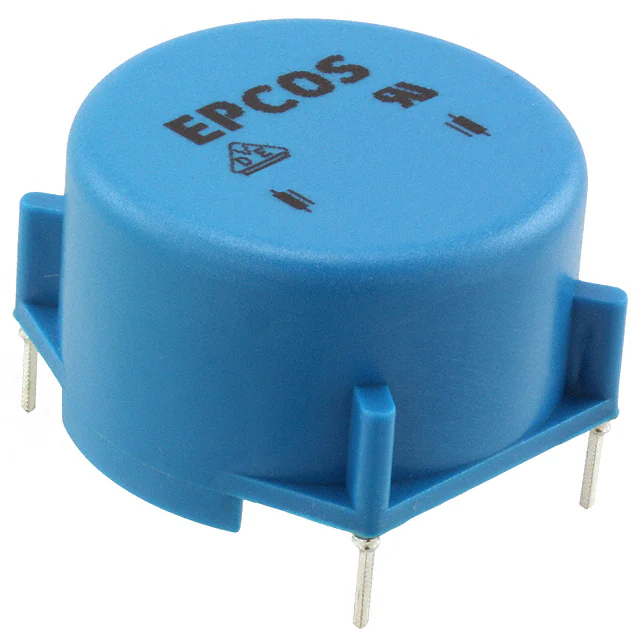

B82724A2142N001CMC 27MH 1.4A 2LN TH |
2,079 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
744821039CMC 39MH 300MA 2LN TH |
4,973 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 300mA | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

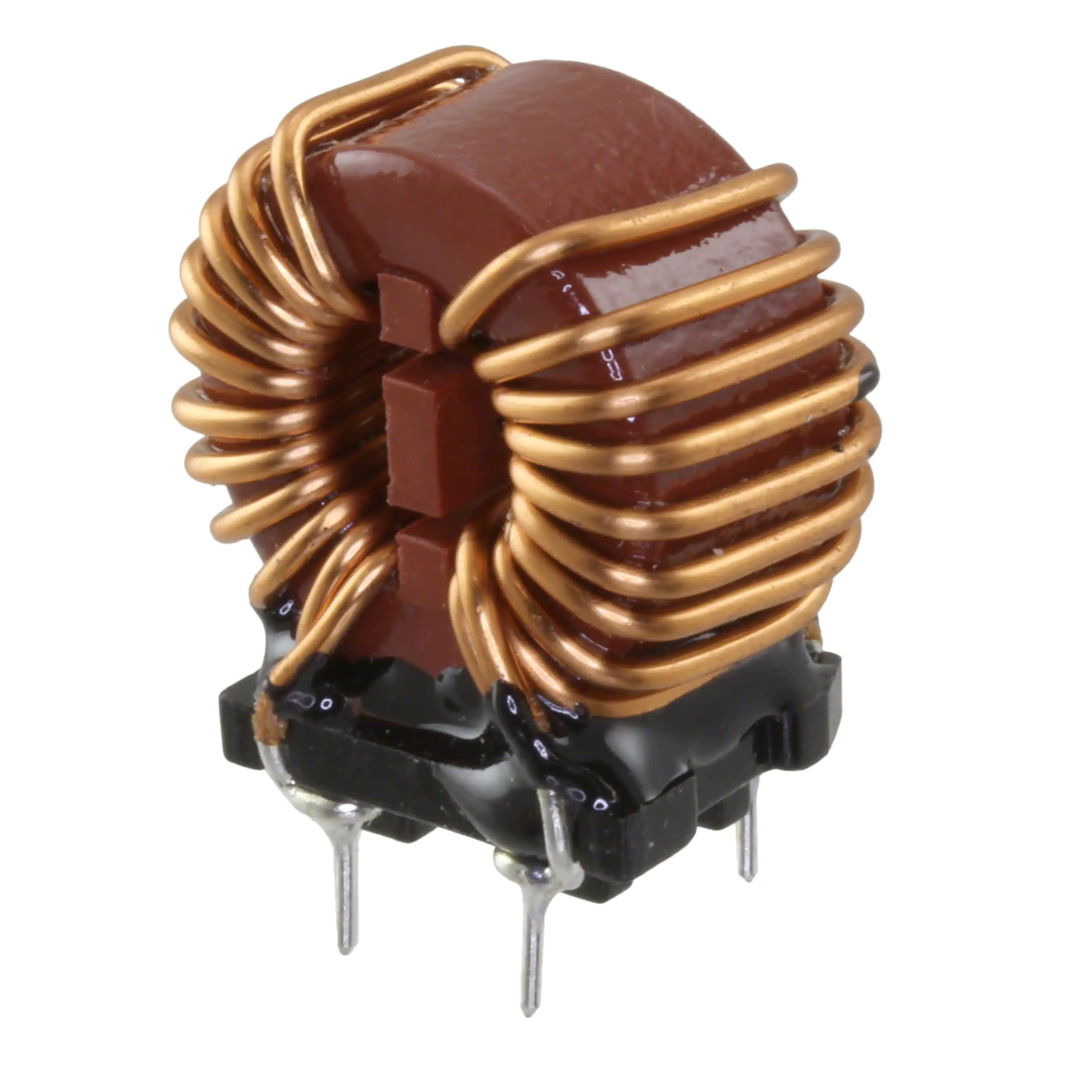

744821150CMC 5MH 1A 2LN TH |
2,429 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1A | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744862250CMC 25MH 250MA 2LN TH |
690 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 10 kHz | 250mA | 3.6Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
PMC9539.903NLCMC 25A 2LN 250 OHM TH |
1,202 |
|
Datasheet |
Radial - 4 Leads | - | 2 | 250 Ohms @ 2.1 MHz | - | 25A | 1.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-10GSCMC 1MH 2A 2LN TH |
1,512 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 80mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

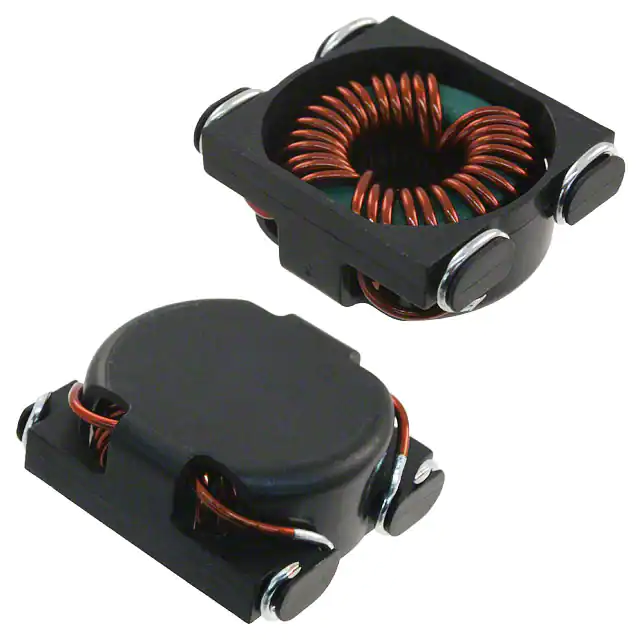

P0469NLCMC 11.6A 2LN SMD |
328 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CMS2-2-RCMC 40UH 4.4A 2LN SMD |
1,388 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 40 µH @ 100 kHz | 4.4A | 8mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
PG1265NLCMC 20A 2LN SMD |
312 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 20A | 4.1mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B4003NLCMC 2LN SMD |
788 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 2 | - | - | - | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

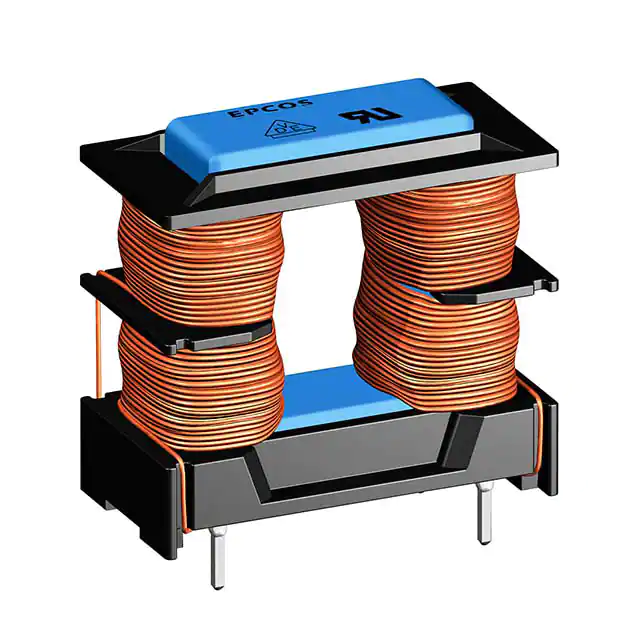

B82733V2142B001CMC 27MH 1.4A 2LN TH |
450 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
DKFP-6248-02D5CMC 2A 2LN TH |
164 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 2A | 50mOhm | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
