Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
744252220CMC 22UH 700MA 2LN SMD |
2,126 |
|
Datasheet |
- | Signal Line | 2 | - | 22 µH @ 100 kHz | 700mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744252101CMC 100UH 500MA 2LN SMD |
1,762 |
|
Datasheet |
- | Signal Line | 2 | - | 100 µH @ 100 kHz | 500mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
RN114-2.5-02-3M3CMC 3.3MH 2.5A 2LN TH |
4,453 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.5A | 63mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

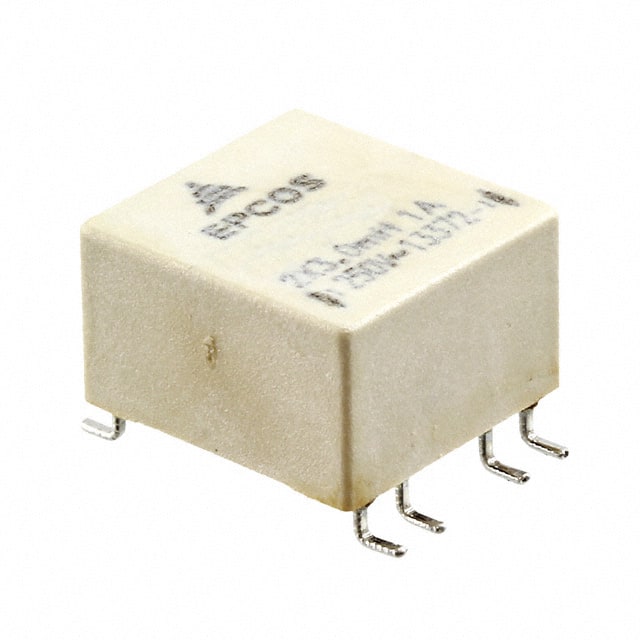

B82720S2102N040CMC 3MH 1A 2LN SMD |
4,180 |
|
Datasheet |
Horizontal, 8 Gull Wing | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 220mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82720S2601N040CMC 4.4MH 600MA 2LN SMD |
930 |
|
Datasheet |
Horizontal, 8 Gull Wing | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN114-2-02-4M2CMC 4.2MH 2A 2LN TH |
686 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 2A | 100mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN214-2.5-02-3M3CMC 3.3MH 2.5A 2LN TH |
437 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.5A | 63mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN214-3-02-2M0CMC 2MH 3A 2LN TH |
364 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 3A | 52mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
M-524CTCMC 500MA 2LN 700 OHM SMD |
1,947 |
|
Datasheet |
Vertical, 4 Gull Wing | Signal Line | 2 | 700 Ohms @ 10 MHz | - | 500mA | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
744227SCMC 51UH 1A 2LN 5.5K OHM SMD |
15,371 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 5.5 kOhms @ 30 MHz | 51 µH @ 1 kHz | 1A | 160mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744229CMC 6.5MH 400MA 2LN 18.4KOHM SMD |
9,516 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 18.4 kOhms @ 700 kHz | 6.5 mH @ 10 kHz | 400mA | 950mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744228CMC 25UH 1A 2LN 2.8K OHM SMD |
6,357 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 2.8 kOhms @ 45 MHz | 25 µH @ 1 kHz | 1A | 120mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744224CMC 250UH 1.2A 2LN 1.8K OHM SMD |
3,259 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.8 kOhms @ 8 MHz | 250 µH @ 100 kHz | 1.2A | 130mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744220203CMC 20MH 200MA 2LN SMD |
1,794 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 20 mH @ 10 kHz | 200mA | 2.6Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744226SCMC 10UH 1.6A 2LN 920 OHM SMD |
648 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 920 Ohms @ 110 MHz | 10 µH @ 1 kHz | 1.6A | 80mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744220103CMC 10MH 350MA 2LN SMD |
537 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 10 mH @ 10 kHz | 350mA | 1.2Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN114-3-02-2M0CMC 2MH 3A 2LN TH |
531 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 3A | 52mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN114-4-02-1M5CMC 1.5MH 4A 2LN TH |
343 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 4A | 34mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82732F2701B001CMC 47MH 700MA 2LN TH |
281 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 700mA | 1.26Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82732F2801B001CMC 39MH 800MA 2LN TH |
178 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 800mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
