Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7416-RCCMC 30MH 500MA 2LN TH |
1,261 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 500mA | 1.73Ohm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
B82790S0253N201CMC 25UH 500MA 2LN SMD AEC-Q200 |
810 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 25 µH @ 100 kHz | 500mA | 110mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EV20-2.0-02-0M8CMC 820UH 2A 2LN TH |
17,519 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 820 µH @ 400 Hz | 2A | 38mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
B82722A2302N001CMC 1.2MH 3A 2LN TH |
3,037 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 3A | 56mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82722A2102N001CMC 10MH 1A 2LN TH |
403 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 480mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CM5740Z171R-10CMC 20A 4LN 170 OHM SMD |
1,266 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM4440Z111R-10CMC 20A 3LN 110 OHM SMD |
420 |
|
Datasheet |
Vertical, 6 Flat Lead | Power Line | 3 | 110 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
744281100CMC 10UH 1.1A 2LN 10K OHM SMD |
3,172 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 10 kOhms @ 25 MHz | 10 µH @ 100 kHz | 1.1A | 120mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

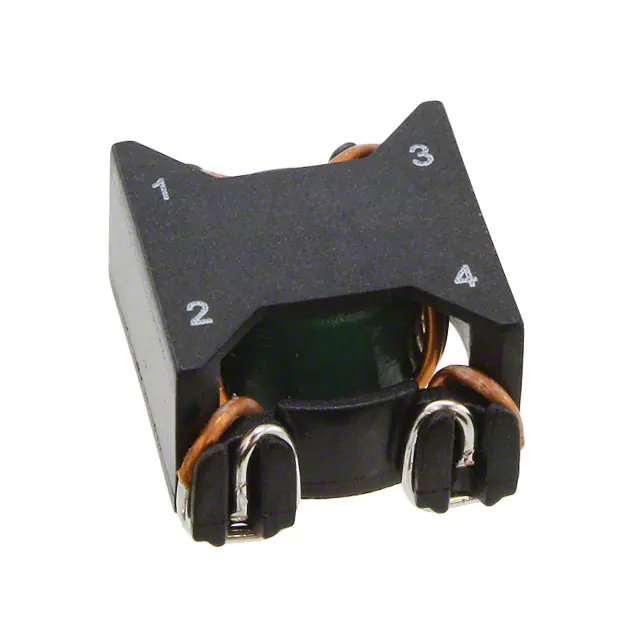

PA2750NLCMC 6A 2LN SMD |
1,347 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 6A | 9.4mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
P0354NLCMC 1.22A 2LN SMD |
1,028 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.22A | 200mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
B82790C0474N215CMC 470UH 500MA 2LN SMD AEC-Q200 |
8,393 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 470 µH @ 100 kHz | 500mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PE-53912NLTCMC 2.5A 2LN SMD |
2,073 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.5A | 80mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
PM3700-80-RCCMC 20MH 1A 2LN SMD |
16,864 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 20 mH @ 1 kHz | 1A | 250mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-20-RCCMC 500UH 6A 2LN SMD |
2,825 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 1 kHz | 6A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-40-RCCMC 1MH 4A 2LN SMD |
2,153 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 1 kHz | 4A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-10-RCCMC 200UH 7A 2LN SMD |
1,771 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 200 µH @ 1 kHz | 7A | 6mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-60-RCCMC 5MH 2A 2LN SMD |
885 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 5 mH @ 1 kHz | 2A | 70mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
51505CCMC 1.2A 2LN TH |
510 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.2A | 197mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-30-RCCMC 750UH 5.5A 2LN SMD |
471 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 1 kHz | 5.5A | 12mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
51504CCMC 4.1A 2LN TH |
435 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4.1A | 27mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
