Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2670NLTCMC 16A 2LN SMD |
1,163 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | - | - | 16A | 4.25mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
CMS2-14-RCMC 1.34MH 500MA 2LN SMD |
731 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.34 mH @ 100 kHz | 500mA | 620mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

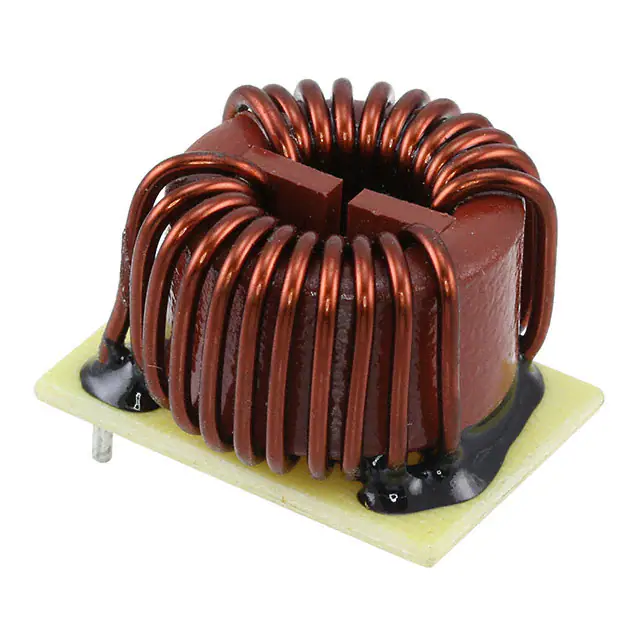

S14100037CMC 1MH 15A 2LN TH |
193 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1 mH @ 10 kHz | 15A | 7.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMS2-8-RCMC 360UH 1.35A 2LN SMD |
628 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 360 µH @ 100 kHz | 1.35A | 84mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
744212331CMC 330UH 300MA 2LN 2K OHM SMD |
2,291 |
|
Datasheet |
Horizontal, 4 J-Lead | Power, Signal Line | 2 | 2 kOhms @ 20 MHz | 330 µH @ 100 kHz | 300mA | 300mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212100CMC 10UH 300MA 2LN 1.2K OHM SMD |
1,302 |
|
Datasheet |
Horizontal, 4 J-Lead | Signal Line | 2 | 1.2 kOhms @ 135 MHz | 10 µH @ 100 kHz | 300mA | 240mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212181CMC 180UH 300MA 2LN 1K OHM SMD |
121 |
|
Datasheet |
Horizontal, 4 J-Lead | Signal Line | 2 | 1 kOhms @ 40 MHz | 180 µH @ 100 kHz | 300mA | 250mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMS2-1-RCMC 25UH 5.35A 2LN SMD |
1,564 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 25 µH @ 100 kHz | 5.35A | 5mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
AE5002CMC 100UH 100MA 2LN SMD AEC-Q200 |
8,899 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 100mA | 4.2Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

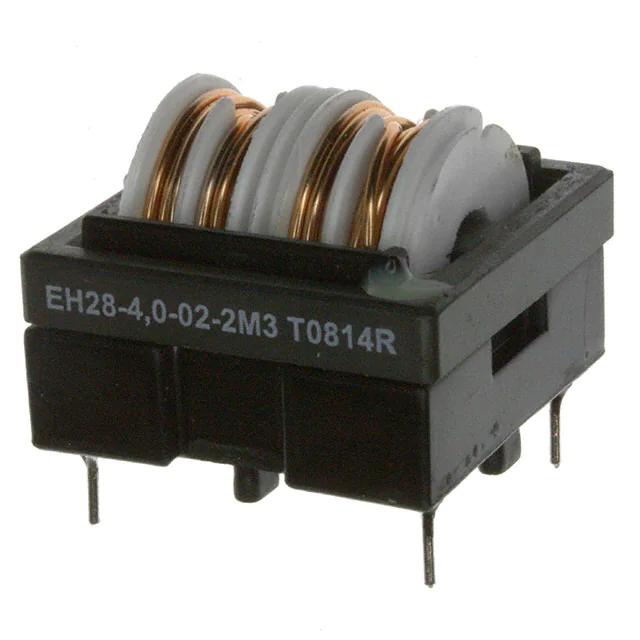

EH28-4.0-02-2M3CMC 2.3MH 4A 2LN TH |
789 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.3 mH @ 10 kHz | 4A | 40mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
744822222CMC 2.2MH 2A 2LN TH |
1,100 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 70mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744822301CMC 1MH 3A 2LN TH |
1,001 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 3A | 35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

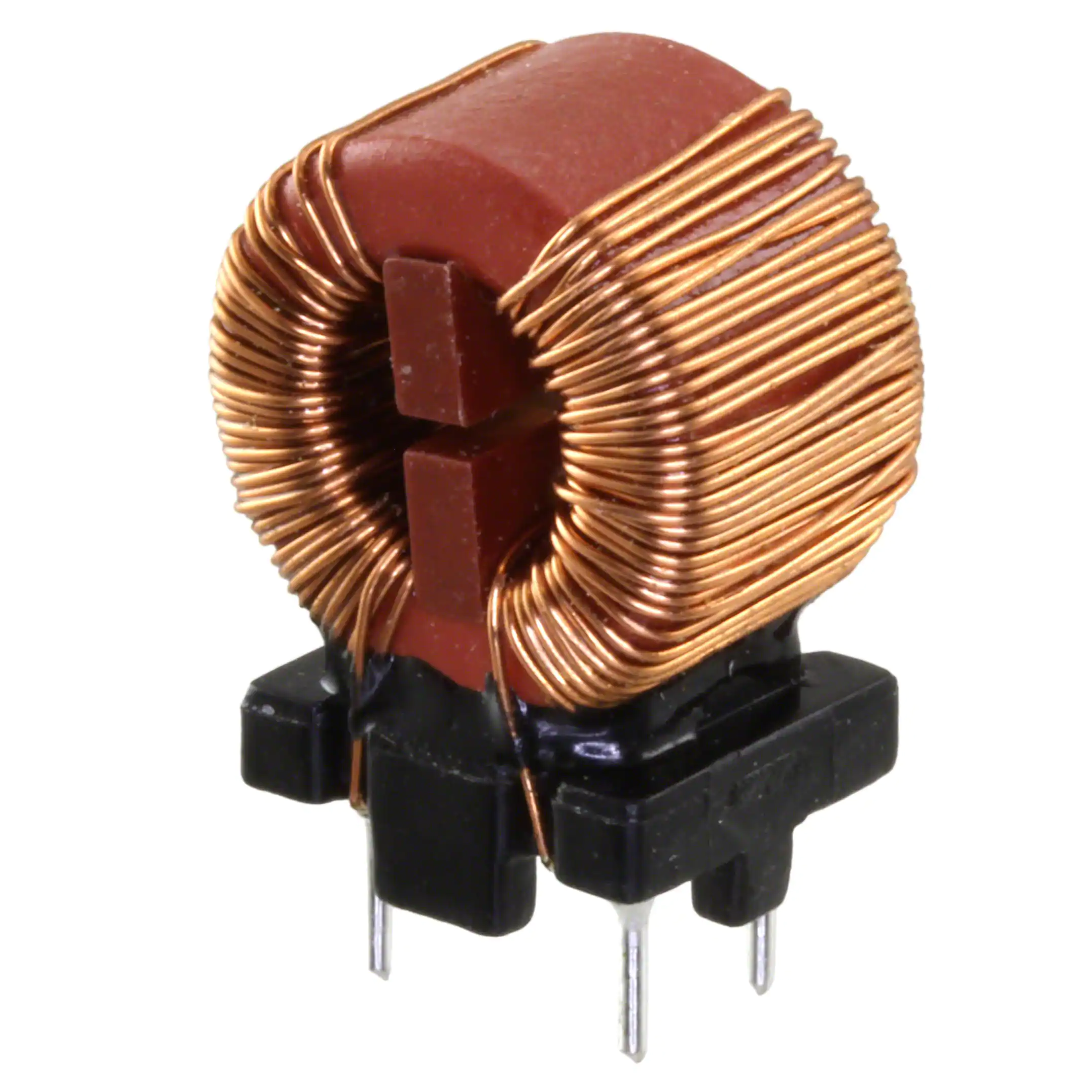

744822110CMC 10MH 1A 2LN TH |
365 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 360mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82721S0322A020CMC 1.32MH 3.2A 2LN SMD |
276 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.32 mH @ 10 kHz | 3.2A | 50mOhm | 80V | 48V | - | - | - | - | - | - |
|
744290560CMC 56UH 7A 2LN SMD |
1,809 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 56 µH @ 10 kHz | 7A | 4.7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290104CMC 100MH 150MA 2LN SMD |
600 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 100 mH @ 10 kHz | 150mA | 8.5Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

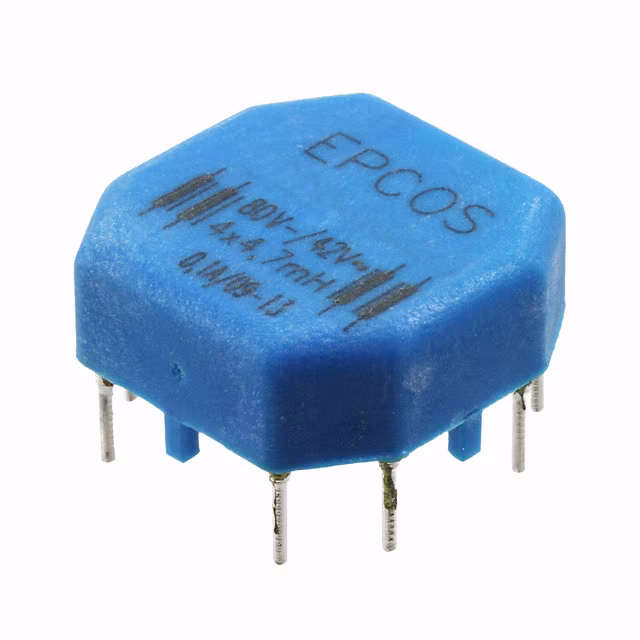

B82791G0014A016CMC 4.7MH 100MA 4LN TH |
320 |
|
Datasheet |
Horizontal, 8 PC Pin | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 100mA | 850mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290683CMC 68MH 200MA 2LN SMD |
130 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 68 mH @ 10 kHz | 200mA | 5Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

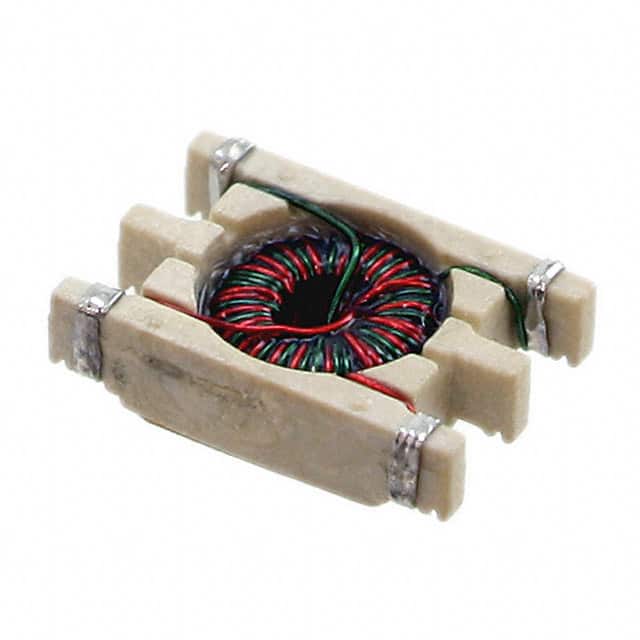

PE-68624NLCMC 2LN SMD |
248 |
|
Datasheet |
Vertical, 6 Flat Lead | Signal Line | 2 | - | - | - | 400mOhm | - | - | - | - | - | - | - | - |
|
DKFS-6248-D504CMC 500MA 2LN SMD |
322 |
|
Datasheet |
4-SMD | - | 2 | - | - | 500mA | 500mOhm | - | 250V | -25°C ~ 100°C | - | UR | - | - | - |
