Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

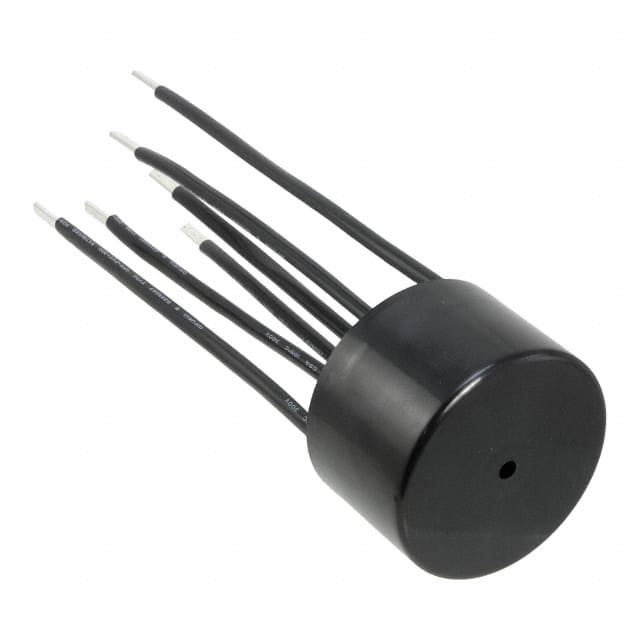

RD8137-50-0M6CMC 600UH 50A 3LN TH |
0 |
|
Datasheet |
- | Power Line | 3 | - | 600 µH @ 400 Hz | 50A (Typ) | 2.15mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD8147-16-3M0CMC 3MH 16A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 3 mH @ 400 Hz | 16A (Typ) | 9.25mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DLFL-0132-45D2CMC 45A 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 45A | 6mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DLFP-0132-45D2CMC 45A 2LN TH |
1 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 45A | 6mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DKIP-0333-3602CMC 36A 3LN TH |
0 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 36A | 7.6mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKLP-0333-0840CMC 8A 3LN TH |
0 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 8A | 110mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKIP-0233-5002CMC 50A 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 50A | 5mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
EXC-14CP121UCMC 300MA 2LN 120 OHM SMD |
0 |
|
Datasheet |
0302 (0806 Metric) | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 300mA | 500mOhm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
BWCU00201212901M02CMC 80MA 2LN 900 OHM SMD |
6 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 100 MHz | - | 80mA | 600mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00201212121M02CMC 400MA 2LN 120 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00201212371M02CMC 280MA 2LN 370 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00121008900M02CMC 250MA 2LN 90 OHM SMD |
99 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 250mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
EXC-24CH900URCMC 130MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 130mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
MCZ1210AD221TCMC 350MA 2LN 220 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 350mA | 300mOhm | 5V | - | - | - | - | - | - | - |
|
|
BWCU00160811900M02CMC 500MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 500mA | 142mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
DLW43SH220XK2LCMC 22UH 310MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | - | 22 µH @ 100 kHz | 310mA | 600mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW5ATN231TQ2LCMC 4A 2LN 230 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 230 Ohms @ 100 MHz | - | 4A | 27mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5ATN331MQ2LCMC 4A 2LN 330 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 330 Ohms @ 100 MHz | - | 4A | 27mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
DLW5ATN500MQ2LCMC 6A 2LN 50 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 50 Ohms @ 100 MHz | - | 6A | 13mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
ECMT1V1717S-850-RCMC 85MH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 85 mH @ 1 kHz | 300mA | 5.7Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
