Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECMT1V1717S-470-RCMC 47MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 1 kHz | 500mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1717S-400-RCMC 40MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 40 mH @ 1 kHz | 500mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1717S-350-RCMC 35MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 500mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1717S-500-RCMC 50MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 50 mH @ 1 kHz | 500mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1717S-200-RCMC 20MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 800mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
ECMT1V1714H-300-RCMC 30MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 600mA | 1.6Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1714H-400-RCMC 40MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 40 mH @ 1 kHz | 500mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1714H-470-RCMC 47MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 1 kHz | 500mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1714H-500-RCMC 50MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 50 mH @ 1 kHz | 500mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1714H-600-RCMC 60MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 60 mH @ 1 kHz | 400mA | 3.3Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1714H-850-RCMC 85MH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 85 mH @ 1 kHz | 300mA | 5.7Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V1714H-350-RCMC 35MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 500mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

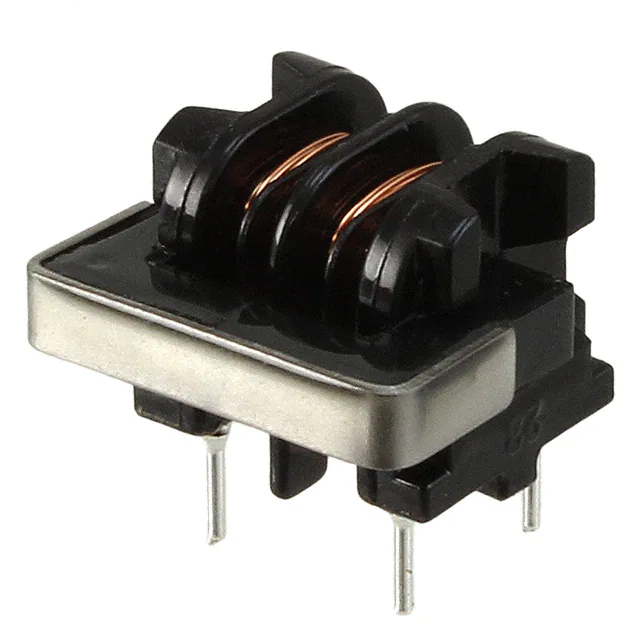

SU9HF-05030CMC 3MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 1 kHz | 500mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
VFB4532-101VCMC SMD 100.0UH AUTO GRADE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | - | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
VFB4532-101CMC SMD 100.0UH AUTO GRADE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 6 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 80V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
BPPM00070638701X00CMC 4A 2LN 700 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
AWCU00201212900Y03CMC 500MA 2LN 90OHM SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 500mA | 300mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ECMT1V2017H-300-RCMC 30MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 800mA | 900mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMT1V2017H-600-RCMC 60MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 60 mH @ 1 kHz | 400mA | 2.1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
ECMT1V2023S-300-RCMC 30MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 800mA | 900mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
