Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744861056CMC 5.6MH 600MA 2LN TH |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 600mA | 830mOhm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|

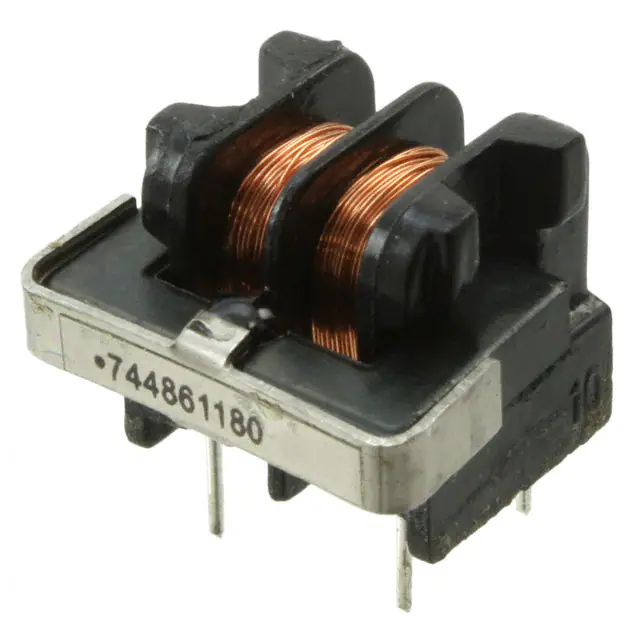

744861180CMC 18MH 300MA 2LN TH |
72 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 300mA | 3.1Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
750311898CMC 57MH 180MA 2LN TH |
73 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 57 mH @ 10 kHz | 180mA | 15.7Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

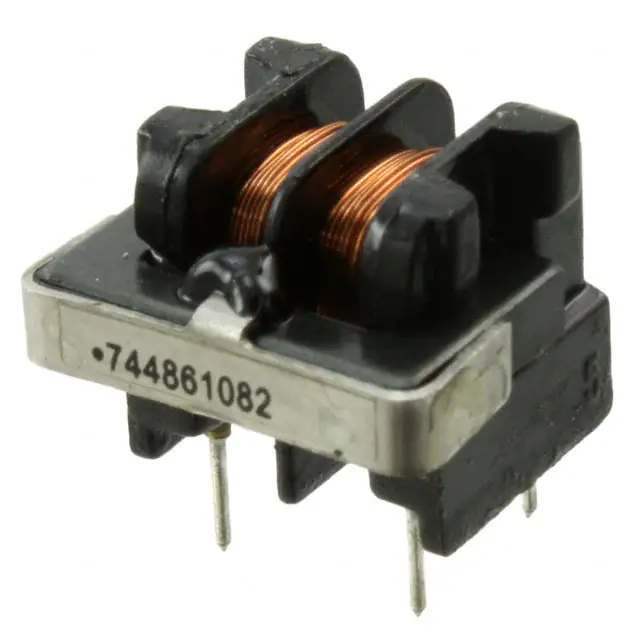

744861082CMC 8.2MH 500MA 2LN TH |
88 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8.2 mH @ 10 kHz | 500mA | 1.3Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
744861120CMC 12MH 400MA 2LN TH |
88 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 400mA | 2Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
CAO-5.0-1.5CMC 1.5MH 5A 2LN TH |
70 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 5A | 22mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7106-RCCMC 510UH 2A 2LN TH |
86 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 510 µH @ 1 kHz | 2A | 30mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
PM9407.304NLTIND CMC 280UH 14A |
48 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | - | - | 14A | 4.8mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PM9407.404NLTIND CMC 360UH 12A |
154 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | - | - | 12A | 5.3mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PM9407.504NLTIND CMC 480UH 10A |
132 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | - | - | 10A | 7.8mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
7446722004CMC 4.2MH 1.9A 2LN TH |
48 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 1.9A | 120mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCR-060-0R9A040JCMC 4MH 6A 2LN TH |
47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 6A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN16P-400JNMC 108.0UH 8.0A 0.0270 OHM TH |
100 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN13-500CMC 143UH 6A 2LN TH |
96 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 143 µH @ 100 kHz | 6A | 36mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN20P-240NMC 40.0UH 20.0A 0.0100 OHM TH |
90 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 40 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
744834220WE-CMBH COMMON MODE POWER LINE C |
35 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2A | 230mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, VDE | - | - | - |
|
DSO1-175-0002CMC 630MA 2LN TH |
90 |
|
Datasheet |
Radial | - | 2 | - | - | 630mA | 550mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DS1-20-0001CMC 630MA 2LN TH |
60 |
|
Datasheet |
Radial | - | 2 | - | - | 630mA | 700mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SN16-400CMC 108UH 8A 2LN TH |
100 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | 8A | 27mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
DSO1-30-0003CMC 3.15A 2LN TH |
100 |
|
Datasheet |
Radial | - | 2 | - | - | 3.15A | 70mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
