Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCR39XV-320-2R0B006JHINDUCTOR CMC 0.47MH 32A |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 470 µH @ 100 kHz | 32A | 1.13mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-400-2R2B005JHINDUCTOR CMC 0.33MH 40A |
92 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 40A | 0.78mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-120-1R6A024JHINDUCTOR CMC 7.6MH 12A |
85 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.6 mH @ 100 kHz | 12A | 13.6mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
LDFW021252YBUV0ECMC 2.5MH 21A 2LN TH |
78 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 100 kHz | 21A | 4.5mOhm (Typ) | 700V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
DKIH-3352-16D5CMC 16A 3LN TH |
18 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | - | 16A | 3mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
|
LDFW015372YBUV0ECMC 3.7MH 15A 2LN TH |
90 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.7 mH @ 100 kHz | 15A | 6.7mOhm | 700V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-280-S2R4A006JHINDUCTOR CMC 0.47MH 28A |
96 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 470 µH @ 100 kHz | 28A | 1.61mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-400-S2R2B003JHINDUCTOR CMC 0.118MH 40 |
90 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 118 µH @ 100 kHz | 40A | 0.4mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
DKIH-3352-20D4CMC 20A 3LN TH |
20 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | - | 20A | 1.5mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
|
SCR39XV-210-S2R0A008JHINDUCTOR CMC 0.84MH 21A |
96 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 840 µH @ 100 kHz | 21A | 3mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-320-2R0B006JHCOMMON MODE 0.268MH 32A 1.130M |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 268 µH @ 100 kHz | 32A | 1.13mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-190-2R1A014JHCOMMON MODE 1.46MH 19A 5.030 MOH |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.46 mH @ 100 kHz | 19A | 5.03mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-200-2R2A013JHCOMMON MODE 1.26MH 20A 4.280 MOH |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.26 mH @ 100 kHz | 20A | 4.28mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-310-1R9B007JHCOMMON MODE 0.364MH 31A 1.480MOH |
91 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 364 µH @ 100 kHz | 31A | 1.48mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
LDFW026152YBUV0ECMC 1.5MH 26A 2LN TH |
41 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 26A | 2.9mOhm | 700V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
B82767S4263N030RING CORE CHOKE 4X0.43MH 26A |
82 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 430 µH @ 100 kHz | 26A | 1.5mOhm (Typ) | - | 500/300V | -40°C ~ 125°C | - | - | - | - | - |
|

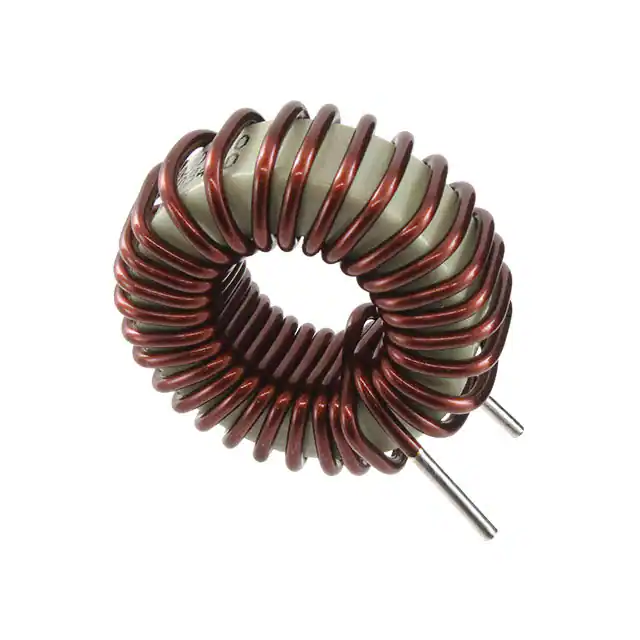

PHBC20-1R7A0054VCMC 54UH 12A 2LN TH |
24 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 54 µH @ 100 kHz | 12A | 11.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCT39XV-230-S2R2A007JHCOMMON MODE 0.364MH 23A 2.230M |
96 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 364 µH @ 100 kHz | 23A | 2.23mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-400-S2R2B003JHCOMMON MODE 0.067MH 40A 0.400M |
96 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 67 µH @ 100 kHz | 40A | 0.4mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-210-S2R0A008JHCOMMON MODE 0.476MH 21A 3.000M |
96 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 476 µH @ 100 kHz | 21A | 3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
