Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

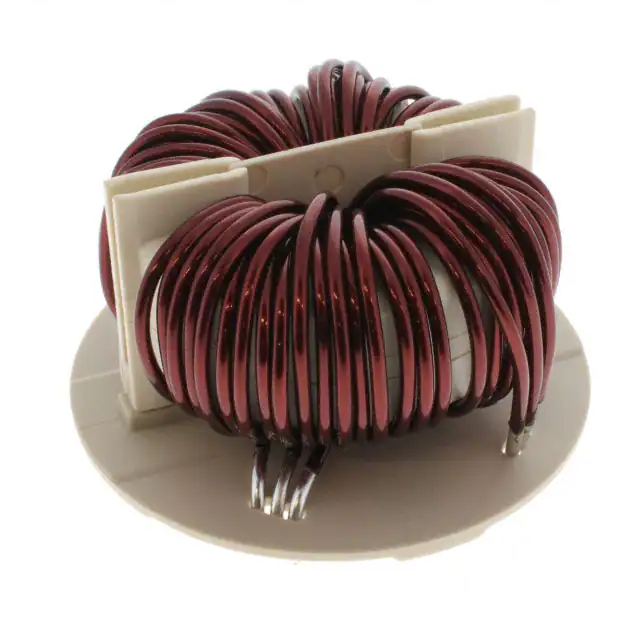

SCF47C-400-1R8C040JHCMC 4MH 40A 2LN TH |
68 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 40A | 2.1mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
RT8122-20-3M0CMC 3MH 20A 2LN TH |
54 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 20A | 7mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|

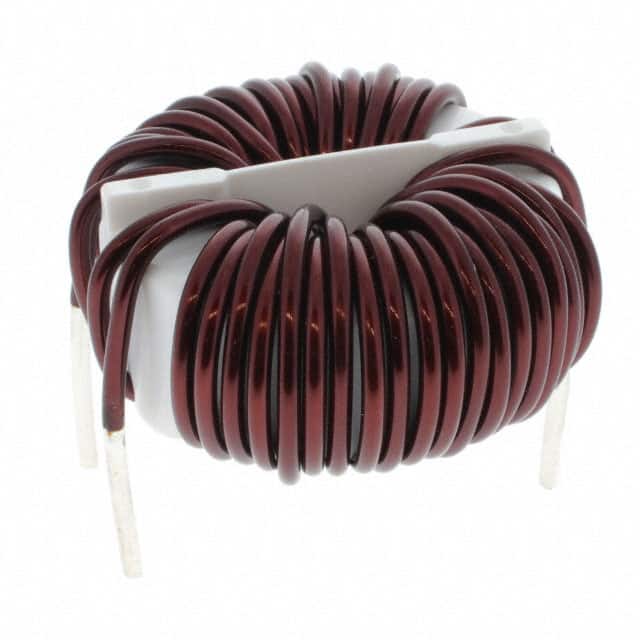

SC-20-300CMC 3MH 20A 2LN TH |
58 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 20A | 13mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
DKIV-1-3243-258J-NKCMC 25A 2LN TH |
22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 25A | 1.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
HHBC24N-2R3A0104VCMC 104UH 20A 2LN TH |
51 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 104 µH @ 100 kHz | 20A | 10.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

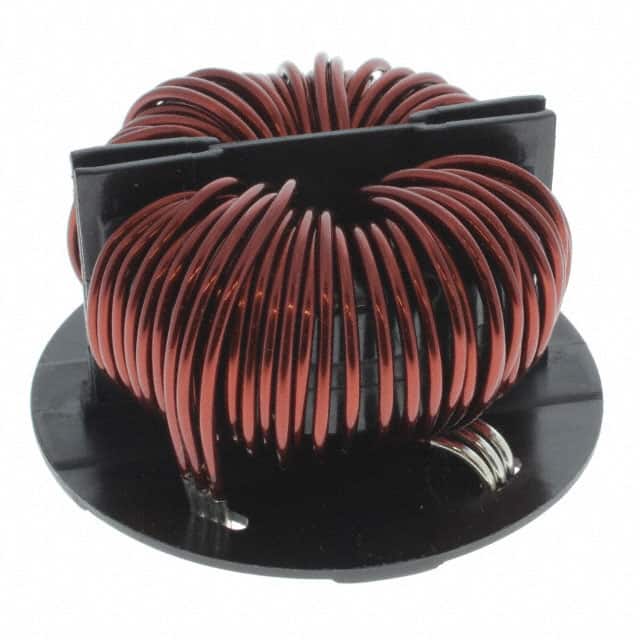

SCR47B-350-1R6C016JH-DCMC 1.6MH 35A 2LN TH |
18 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 35A | 3.5mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|

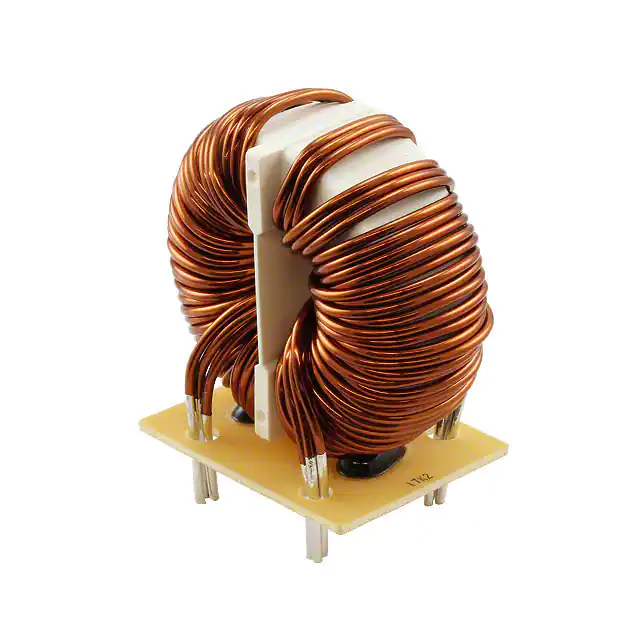

SCR47-350-1R6C016JCMC 1.6MH 35A 2LN TH |
34 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 35A | 3.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR47B-400-1R8C010JHCMC 1MH 40A 2LN TH |
24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 40A | 2.1mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SCR47-400-1R9C008JHCMC 800UH 40A 2LN TH |
34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 10 kHz | 40A | 1.8mOhm | - | - | -25°C ~ 120°C | - | - | - | - | - |
|
DKIH-3237-122Q-NKCMC 12A 2LN TH |
47 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 12A | 7mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
RD5132-16-1M0CMC 1MH 16A 3LN TH |
71 |
|
Datasheet |
- | Power Line | 3 | - | 1 mH @ 400 Hz | 16A (Typ) | 6.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
HHBC24N-2R0A0219VCMC 219UH 15A 2LN TH |
56 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 219 µH @ 100 kHz | 15A | 19.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC24N-2R3A0104VCMC 104UH 20A 2LN TH |
60 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 104 µH @ 100 kHz | 20A | 10.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
RB6122-25-0M6CMC 640UH 25A 2LN TH |
88 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 640 µH @ 400 Hz | 25A | 2.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD6127-6-15M0CMC 15MH 6A 2LN TH |
18 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 400 Hz | 6A (Typ) | 66.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DLFP-0125-0501CMC 5A 2LN CHAS MNT |
17 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 5A | 120mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
H6400NLCMC 600MA 4LN SMD |
59 |
|
Datasheet |
96-BGA Module | - | 4 | - | - | 600mA | 65mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|

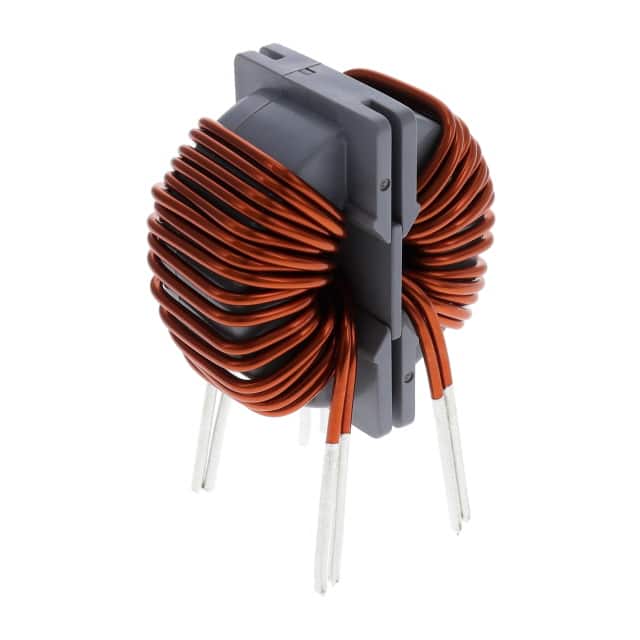

LDFL027282VJUV0ECMC 2.8MH 27A 2LN TH |
48 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 2.8 mH @ 100 kHz | 27A | 3.1mOhm | 700V | - | - | - | - | - | - | - |
|
RD6127-10-9M0CMC 9MH 10A 2LN TH |
48 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9 mH @ 400 Hz | 10A (Typ) | 25.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DKIH-3452-161K-NKCMC 16A 4LN TH |
13 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 16A | - | 500V | 500V | -40°C ~ 100°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
