Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

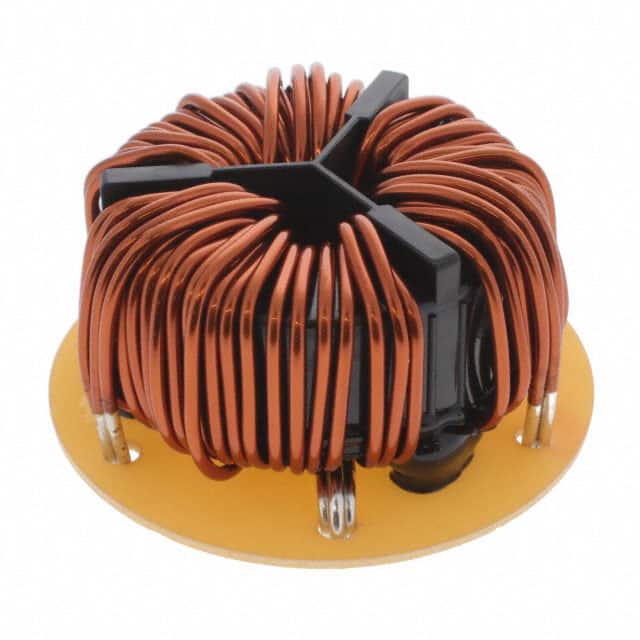

SCF47-400-S1R7C028JHCMC 2.8MH 40A 3LN TH |
19 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.8 mH @ 10 kHz | 40A | 1.85mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

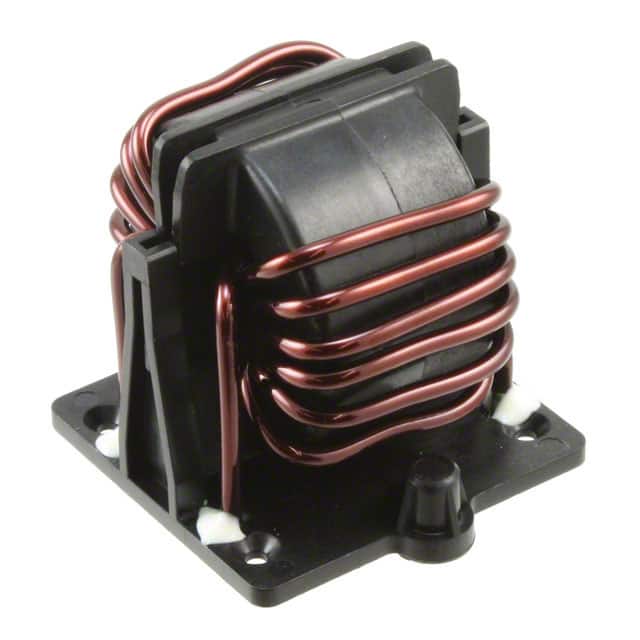

RB6522-25-0M6CMC 640UH 25A 2LN TH |
23 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 640 µH @ 400 Hz | 25A | 2.6mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD6137-6-7M5CMC 7.5MH 6A 3LN TH |
45 |
|
Datasheet |
- | Power Line | 3 | - | 7.5 mH @ 400 Hz | 6A (Typ) | 49mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DKIH-3458-160L-NKCMC 16A 4LN TH |
21 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 16A | 2.6mOhm | 760V | 760V | -40°C ~ 100°C | - | - | - | - | - |
|

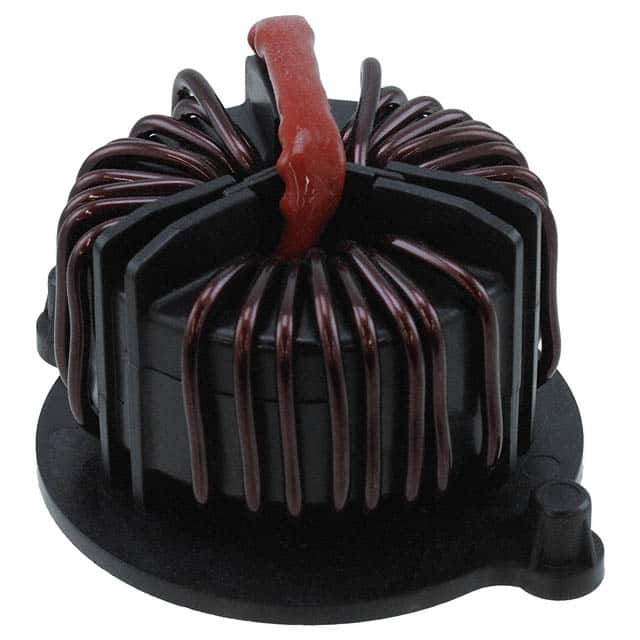

RB6132-16-0M8CMC 800UH 16A 3LN TH |
37 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 800 µH @ 400 Hz | 16A | 4.6mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

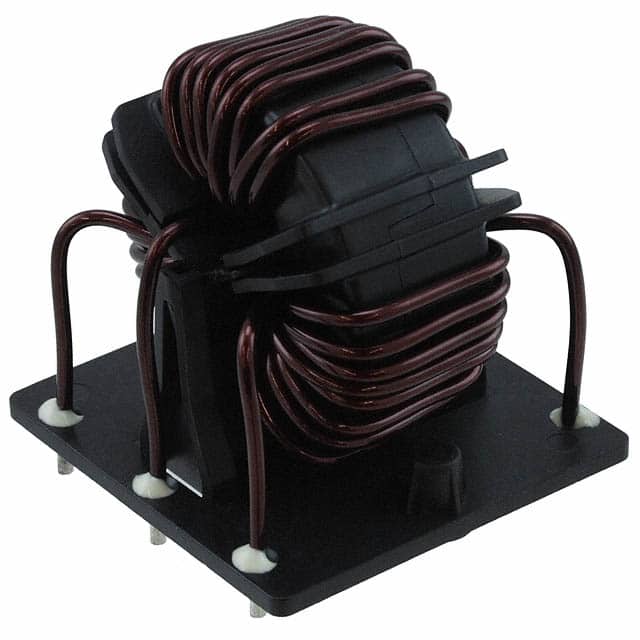

RB6532-16-0M8CMC 800UH 16A 3LN TH |
40 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 800 µH @ 1 kHz | 16A | 4.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RB6522-36-0M5CMC 450UH 36A 2LN TH |
41 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 400 Hz | 36A | 1.5mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

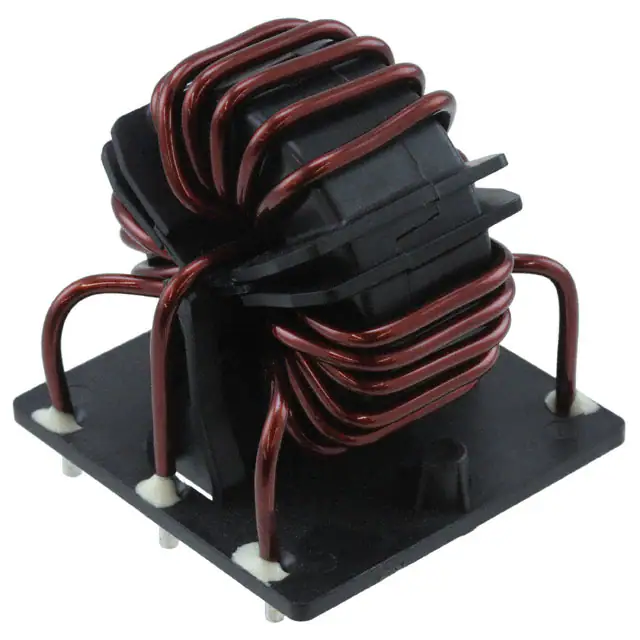

RB6532-25-0M5CMC 470UH 25A 3LN TH |
97 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 470 µH @ 400 Hz | 25A | 2.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
DLFL-0147-35C5CMC 35A 2LN TH |
6 |
|
Datasheet |
Radial | - | 2 | - | - | 35A | 5.3mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
RD7127-10-14M0CMC 14MH 10A 2LN TH |
47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 10A (Typ) | 33.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

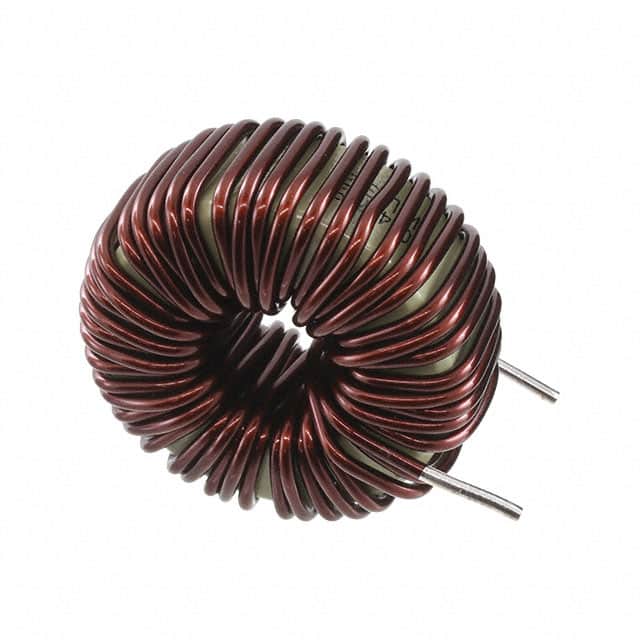

PHBC24W-2R1A0311VCMC 311UH 15A 2LN TH |
45 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 311 µH @ 100 kHz | 15A | 20.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RD7127-16-5M7CMC 5.7MH 16A 2LN TH |
38 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.7 mH @ 400 Hz | 16A (Typ) | 14.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
RD7127-25-2M8CMC 2.8MH 25A 2LN TH |
17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.8 mH @ 400 Hz | 25A (Typ) | 6.4mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RB8532-25-0M9CMC 940UH 25A 3LN TH |
64 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 940 µH @ 400 Hz | 25A | 3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD7137-25-1M3CMC 1.3MH 25A 3LN TH |
50 |
|
Datasheet |
- | Power Line | 3 | - | 1.3 mH @ 400 Hz | 25A (Typ) | 4.45mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-6-6M0CMC 6MH 6A 4LN TH |
19 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 6 mH @ 400 Hz | 6A (Typ) | 45.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-10-3M5CMC 3.5MH 10A 4LN TH |
44 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 3.5 mH @ 400 Hz | 10A (Typ) | 19.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DKIH-3358-326K-NKCMC 32A 3LN TH |
51 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | - | - | 32A | 1.1mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
|
DKIH-3358-401J-NKCMC 40A 3LN TH |
18 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | - | - | 40A | 0.6mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
DKIP-0231-1012CMC 10A 2LN TH |
2 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 10A | 40mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
