Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF3225TAC-110YCMC 11UH 300MA 2LN 550OHM SMD |
188 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 550 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 400mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SRF4530AG-201YCMC 2LN SMD AEC-Q200 |
229 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | - | - | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

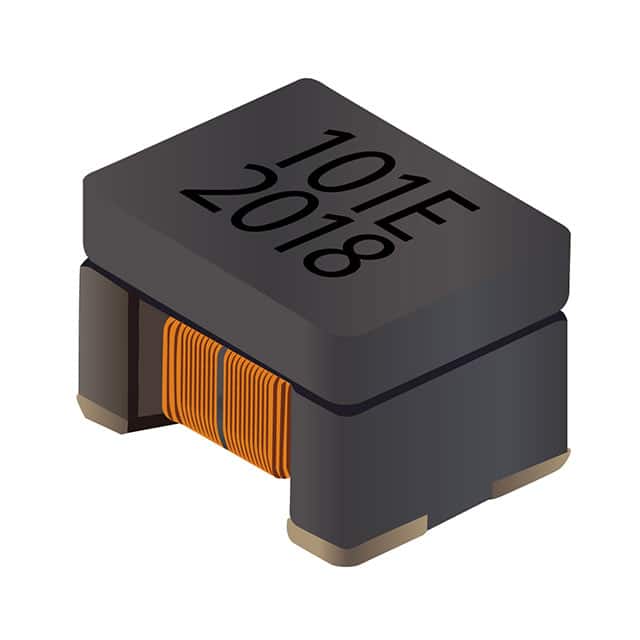

SRF3225AB-101YCMC 100UH 100MA 2LN 5.5KOHM SMD |
610 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 5.5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 100mA | 3.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
CMLA0706-701-RCMC 4A 2LN 700 OHM SMD AEC-Q200 |
956 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 100V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW5ATN851SQ2LCMC 1.5A 2LN 850 OHM SMD |
700 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 850 Ohms @ 100 MHz | - | 1.5A | 73mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
IFLN1812CZER582NCOMMON MODE CHOKE FILTER |
998 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 5.2 kOhms @ 100 MHz | 100 µH @ 100 kHz | 200mA | 2Ohm | 50V | - | -55°C ~ 150°C | - | - | - | - | - |
|
|
IFLN1812CZER122NCOMMON MODE CHOKE FILTER |
978 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 8.2 kOhms @ 100 MHz | 22 µH @ 100 kHz | 310mA | 1Ohm | 50V | - | -55°C ~ 150°C | - | - | - | - | - |
|
|
IFLN1812CZER282NCOMMON MODE CHOKE FILTER |
978 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 6 kOhms @ 100 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -55°C ~ 150°C | - | - | - | - | - |
|
|
IFLN1812CZER601NCOMMON MODE CHOKE FILTER |
849 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 4 kOhms @ 100 MHz | 11 µH @ 100 kHz | 360mA | 600mOhm | 50V | - | -55°C ~ 150°C | - | - | - | - | - |
|
|
DLW5ATN111SQ2LCMC 5A 2LN 110 OHM SMD |
694 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 110 Ohms @ 100 MHz | - | 5A | 20mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ICM1812ER201VCM CHOKE 1.5A 200 OHM |
500 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 200 Ohms @ 100 MHz | - | 1.5A | 100mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ICM1812ER900VCM CHOKE 3A 90 OHM |
500 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 3A | 50mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ICM1812ER601VCM CHOKE 1.5A 600 OHM |
500 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 600 Ohms @ 100 MHz | - | 1.5A | 240mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ICM1812ER800VCM CHOKE 3A 80 OHM |
500 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 80 Ohms @ 100 MHz | - | 3A | 50mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ICM1812ER121VCM CHOKE 3A 120 OHM |
500 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 120 Ohms @ 100 MHz | - | 3A | 50mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ICM1812ER801VCM CHOKE 1A 800 OHM |
495 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 800 Ohms @ 100 MHz | - | 1A | 240mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DLW5ATN111TQ2LCMC 5A 2LN 110 OHM SMD |
720 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 110 Ohms @ 100 MHz | - | 5A | 20mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
DLW5ATH401TQ2LCMC 2A 2LN 400 OHM SMD AEC-Q200 |
520 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 400 Ohms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS21V-220017CMC 1.7MH 2.2A 2LN TH |
70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 1 kHz | 2.2A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN10P-800NMC 297.0UH 2.5A 0.1900 OHM TH |
94 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 297 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
