Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
64 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 97 µH @ 100 kHz | 12A | 16mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC20-1R7A0152VCMC 152UH 12A 2LN TH |
39 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 152 µH @ 100 kHz | 12A | 20.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC20-1R7A0054VCMC 54UH 12A 2LN TH |
64 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 54 µH @ 100 kHz | 12A | 11.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PM9408.494NLTIND CMC 290UH 21A |
88 |
|
Datasheet |
Nonstandard | Power Line | 2 | 2 kOhms @ 1.1 MHz | - | 21A | 4mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
PM9408.155NLTIND CMC 870UH 12A |
85 |
|
Datasheet |
Nonstandard | Power Line | 2 | 5.5 kOhms @ 950 kHz | - | 12A | 13mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
PM9408.164NLTIND CMC 95UH 39A |
119 |
|
Datasheet |
Nonstandard | Power Line | 2 | 400 Ohms @ 1.6 MHz | - | 39A | 1.4mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
B82615B2102M001CMC 20MH 1A 2LN TH PFC |
85 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1A | 3Ohm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
|
DS1-30-0003CMC 3.15A 2LN TH |
30 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 3.15A | 55mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82725S2253B040SMD RING CORE CHOKE 2X0.65MH 25A |
60 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 650 µH @ 100 kHz | 25A | 1.95mOhm (Typ) | - | 250V | - | - | - | - | - | - |
|
PE-96188NLCMC 10A (TYP) 2LN TH |
90 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 10A (Typ) | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

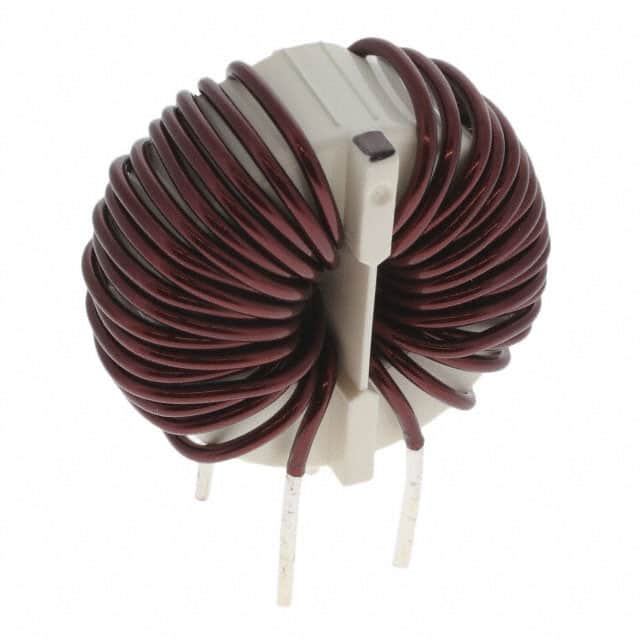

SC-08-E1000CMC 10MH 8A 2LN TH |
52 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 8A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
LDFL026152VBUV0ECMC 1.5MH 26A 2LN TH |
96 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 1.5 mH @ 100 kHz | 26A | 2.9mOhm | 700V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
CAV-16-0.15CMC 150UH 16A 2LN TH |
50 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 150 µH @ 10 kHz | 16A | 3mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL011742VV-V0ECMC 7.4MH 11A 2LN TH |
17 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 7.4 mH @ 100 kHz | 11A | 15mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-150-S1R7A011JHINDUCTOR CMC 1.6MH 15A |
95 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 15A | 5.45mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-140-S1R6A014JHINDUCTOR CMC 2.6MH 14A |
94 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 14A | 7.87mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
LDFL015372VBUV0ECMC 3.7MH 15A 2LN TH |
86 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 3.7 mH @ 100 kHz | 15A | 6.7mOhm | 700V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-130-1R7A022JHINDUCTOR CMC 6.4MH 13A |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.4 mH @ 100 kHz | 13A | 11.1mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-190-2R1A014JHINDUCTOR CMC 2.6MH 19A |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 19A | 5.03mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-220-2R3A012JHINDUCTOR CMC 1.9MH 22A |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.9 mH @ 100 kHz | 22A | 3.58mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
