Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-10-20JHCMC 2MH 10A 2LN TH |
99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 10A | 22mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SC-20-20JHCMC 2MH 20A 2LN TH |
64 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 20A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR31B-200-1R9A017JHCMC 1.7MH 20A 2LN TH |
98 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 20A | - | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR31B-105-1R4A055JHCMC 5.5MH 10.5A 2LN TH |
76 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 10 kHz | 10.5A | 22mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|

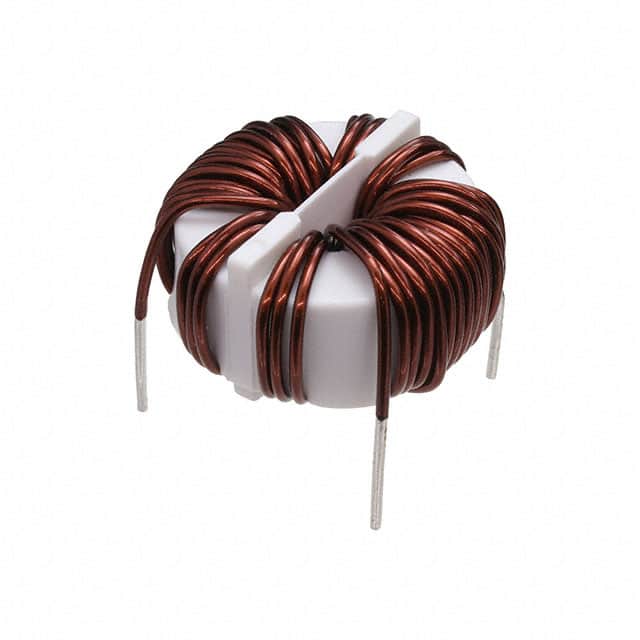

SC-12-300CMC 3MH 12A 2LN TH |
63 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 12A | 18mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

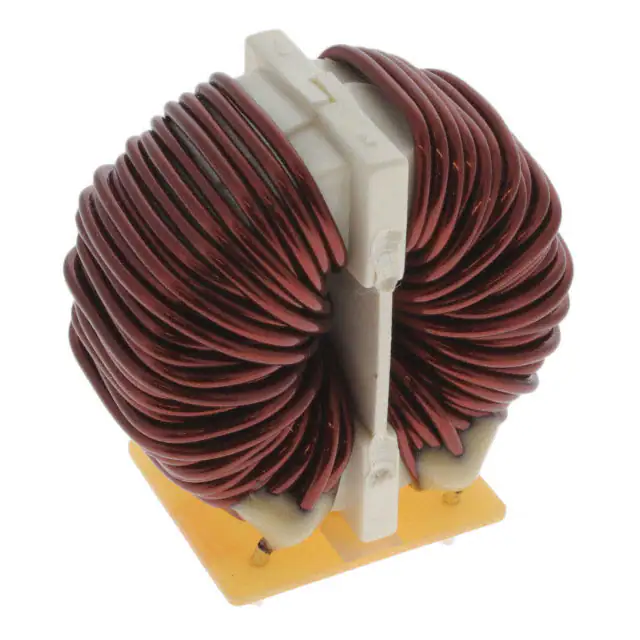

SC-08-100JMCMC 13MH 8A 2LN TH |
89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 13 mH @ 100 kHz | 8A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCT25XV-100-1R3A016JHCMC 2.05MH 10A 2LN TH AEC-Q200 |
40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.05 mH @ 100 kHz | 10A | 12.27mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-350-2R4A003JVCMC 110UH 35A 2LN TH AEC-Q200 |
62 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 35A | 0.69mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-250-2R2A008JHCMC 390UH 25A 2LN TH AEC-Q200 |
80 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 390 µH @ 100 kHz | 25A | 1.68mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-180-1R8A013JHCMC 1.04MH 18A 2LN TH AEC-Q200 |
75 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.04 mH @ 100 kHz | 18A | 4.1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-200-2R0A011JVCMC 740UH 20A 2LN TH AEC-Q200 |
66 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 740 µH @ 100 kHz | 20A | 2.73mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-080-1R3A026JHCMC 4.15MH 8A 2LN TH AEC-Q200 |
47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.15 mH @ 100 kHz | 8A | 14.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-270-2R3A006JHCMC 400UH 27A 2LN TH AEC-Q200 |
76 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 27A | 1.18mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-250-2R2A008JVCMC 700UH 25A 2LN TH AEC-Q200 |
30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 25A | 1.68mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-150-1R6A010JVCMC 2.5MH 15A 2LN TH AEC-Q200 |
100 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 100 kHz | 15A | 4.62mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-070-1R2A030JHCMC 9.9MH 7A 2LN TH AEC-Q200 |
80 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9.9 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
DKIV-1-3236-12D9CMC 12A 2LN TH |
39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 12A | 7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
SCT29XV-300-2R4A005JHCMC 83UH 30A 2LN TH AEC-Q200 |
100 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 83 µH @ 100 kHz | 30A | 0.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-180-1R8A013JHCMC 560UH 18A 2LN TH AEC-Q200 |
50 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 560 µH @ 100 kHz | 18A | 4.1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

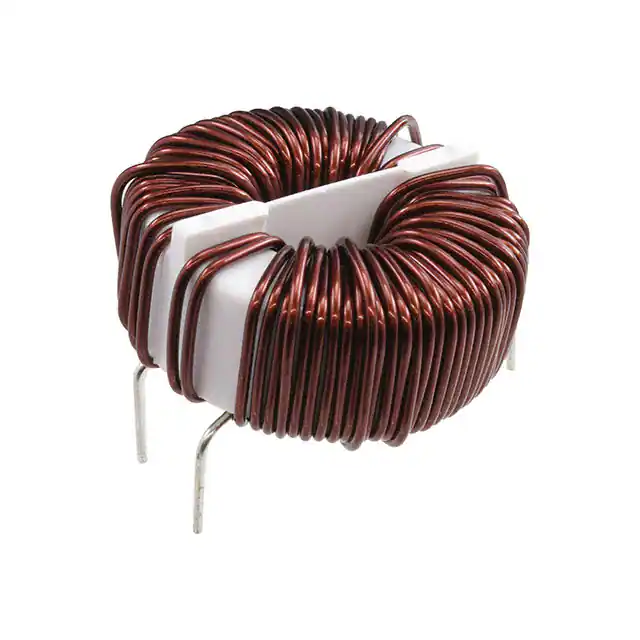

SC-10-1000CMC 10MH 10A 2LN TH |
18 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 10A | 35mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
