Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744844102CMC 1MH 4.5A 2LN TH |
36 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 4.5A | 42mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF29XV-060-1R1A036JHCMC 14.2MH 6A 2LN TH AEC-Q200 |
77 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 14.2 mH @ 100 kHz | 6A | 27.4mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-190-1R9A012JHCMC 1.6MH 19A 2LN TH AEC-Q200 |
74 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 19A | 3.35mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-090-1R4A022JHCMC 5.3MH 9A 2LN TH AEC-Q200 |
26 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.3 mH @ 100 kHz | 9A | 10.6mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
RT8522-8-8M0CMC 8MH 8A 2LN TH |
92 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 8A | 21mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
DKIV-1-3236-100JCMC 10A 2LN TH |
14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 10A | 10mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
SCR38-150-1R7A050JHCMC 5MH 15A 2LN TH |
19 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 15A | 11.5mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SCR25XV-100-1R3A016JVCMC 3.1MH 10A 2LN TH AEC-Q200 |
60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.1 mH @ 100 kHz | 10A | 10.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-050-1R0A027JHCMC 8.9MH 5A 2LN TH AEC-Q200 |
55 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8.9 mH @ 100 kHz | 5A | 32.6mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SC-30-12JHCMC 1.2MH 30A 2LN TH |
60 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 100 kHz | 30A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SCR25XV-130-1R5A012JVCMC 1.77MH 13A 2LN TH AEC-Q200 |
28 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.77 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

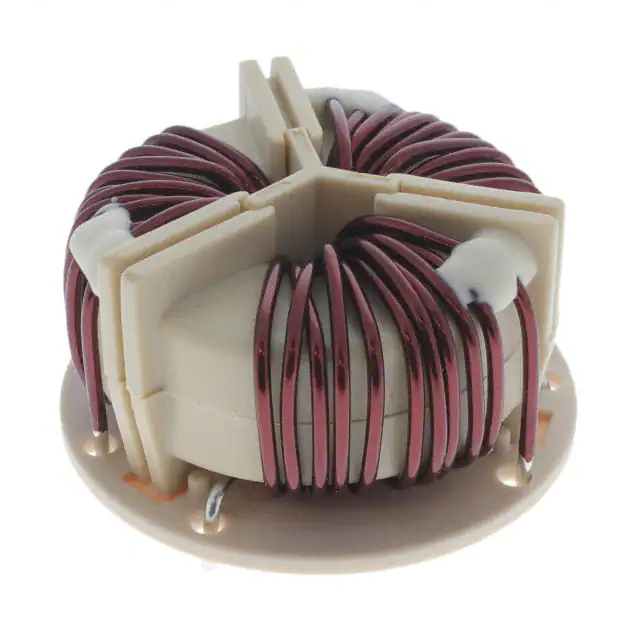

SCR38C-130-S1R4A015JHCMC 1.5MH 13A 3LN TH |
79 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.5 mH @ 10 kHz | 13A | - | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|

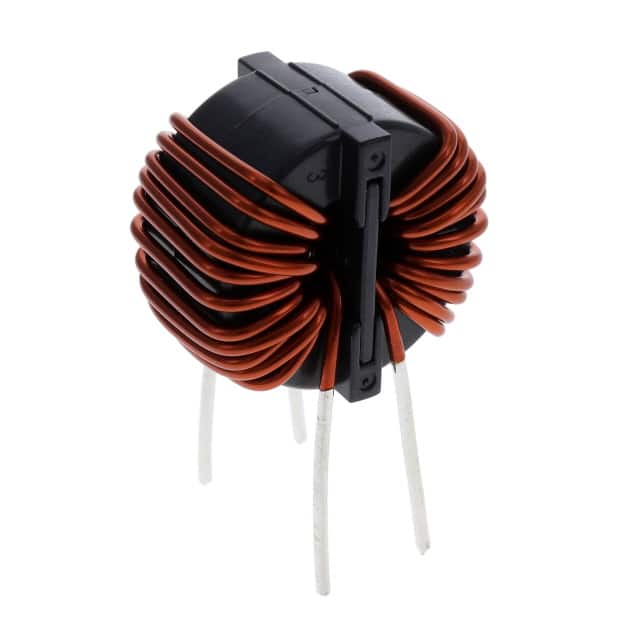

LDFL013412VV-V0ECMC 4.1MH 13A 2LN TH |
100 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 4.1 mH @ 100 kHz | 13A | 12mOhm | 250V | - | - | - | - | - | - | - |
|
8116-RCCMC 50MH 2.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 1 kHz | 2.3A | 450mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SCT25XV-050-1R0A027JVCMC 5.86MH 5A 2LN TH AEC-Q200 |
68 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.86 mH @ 100 kHz | 5A | 30.59mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-220-1R9A007JVCMC 390UH 22A 2LN TH AEC-Q200 |
65 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 390 µH @ 100 kHz | 22A | 2.35mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-170-1R7A009JVCMC 650UH 17A 2LN TH AEC-Q200 |
60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 650 µH @ 100 kHz | 17A | 3.71mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-220-1R9A007JHCMC 390UH 22A 2LN TH AEC-Q200 |
59 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 390 µH @ 100 kHz | 22A | 2.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-190-1R8A008JVCMC 510UH 19A 2LN TH AEC-Q200 |
55 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 510 µH @ 100 kHz | 19A | 2.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-240-2R0A006JHCMC 290UH 24A 2LN TH AEC-Q200 |
38 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 290 µH @ 100 kHz | 24A | 1.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
