Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

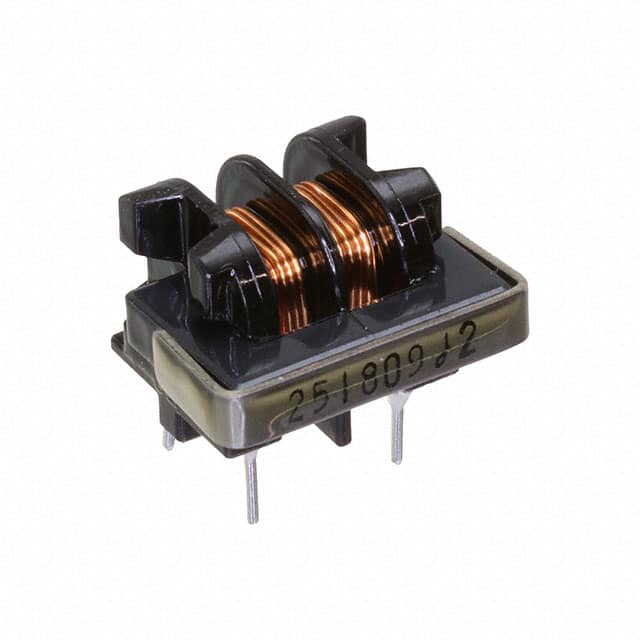

SU9HD-25018CMC 17.99UH 2.5A 2LN TH |
78 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17.99 µH @ 1 kHz | 2.5A | 55mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
BPPM00070638102X00CMC 3A 2LN 1.02K OHM SMD |
87 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.02 kOhms @ 100 MHz | - | 3A | 17mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
RC112-0.25-47MCMC 47MH 250MA 2LN TH |
97 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 250mA | 2.4Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
|
RC112-0.7-4M7CMC 4.7MH 700MA 2LN TH |
58 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 700mA | 440mOhm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
7448640414CMC 6.8MH 700MA 2LN TH |
90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 700mA | 467mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82721K2401N021CMC 27MH 400MA 2LN TH |
81 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.7Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SU10VFC-R07088CMC 8.8MH 700MA 2LN TH |
45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8.8 mH @ 1 kHz | 700mA | 1.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
EMI8043MUTAGCMC 100MA 6LN SMD ESD |
46 |
|
Datasheet |
16-XFDFN | Signal Line | 6 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SC-03-E016GCMC 163.8UH 3A 2LN TH |
69 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 163.8 µH @ 10 kHz | 3A | 8.51mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMF23V-153191-BCMC 15MH 1.9A 2LN TH |
41 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.9A | 306mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
SRF0602-820YCMC 82UH 300MA 2LN 220 OHM SMD |
98 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 3 MHz | 82 µH @ 10 kHz | 300mA | 20mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
CMF16-103161-BCMC 10MH 1.6A 2LN TH |
81 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.6A | 320mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
PLT5BPH2014R4SNLCMC 2.4A 2LN 200OHM SMD AEC-Q200 |
58 |
|
Datasheet |
Vertical, 4 PC Pad | - | 2 | 200 Ohms @ 10 MHz | - | 2.4A | 9.1mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
744869161103CMC 10MH 1.7A 2LN TH |
44 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.7A | 330mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82721A2401N021CMC 27MH 400MA 2LN TH |
96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.7Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
744869161393CMC 39MH 850MA 2LN TH |
33 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 850mA | 1.43Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744869161273CMC 27MH 1A 2LN TH |
29 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1A | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82790C0253N201CMC 25UH 500MA 2LN SMD AEC-Q200 |
90 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 25 µH @ 100 kHz | 500mA | 110mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744869161473CMC 47MH 800MA 2LN TH |
38 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 800mA | 1.63Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RN122-0.8-02-39MCMC 39MH 800MA 2LN TH |
47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 800mA | 1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
