Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-051CMC 145UH 5.2A 2LN TH |
1,802 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 145 µH @ 100 kHz | 5.2A | 20mOhm | 500V | - | - | - | - | - | - | - |
|
PA5141.205NLTCMC 30A 2LN 700 OHM SMD |
1,177 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 3.35 MHz | - | 30A | 1.35mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

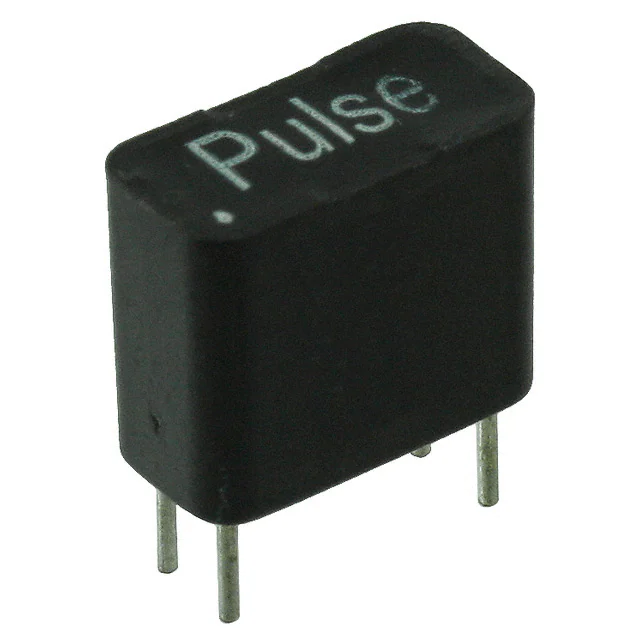

PE-67531NLCMC 2LN TH |
2,268 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | - | - | 600mOhm | - | - | - | - | - | - | - | - |
|

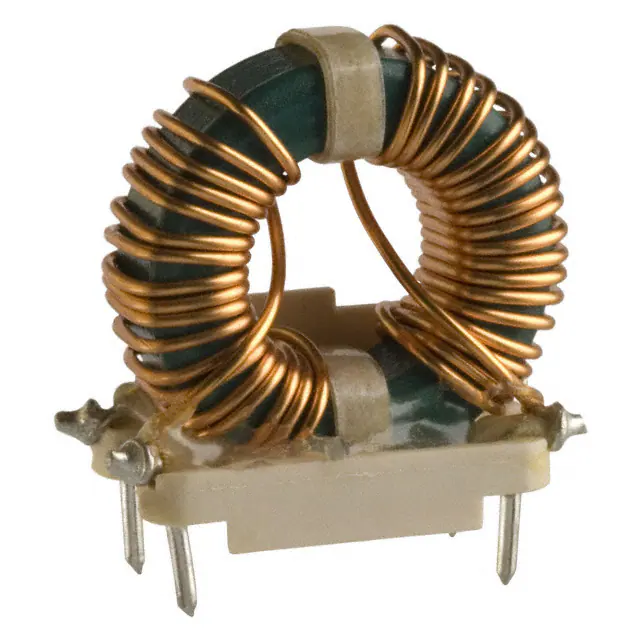

8107-RCCMC 2MH 6.6A 2LN TH |
968 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8103-RCCMC 1MH 4.8A 2LN TH |
616 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 4.8A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

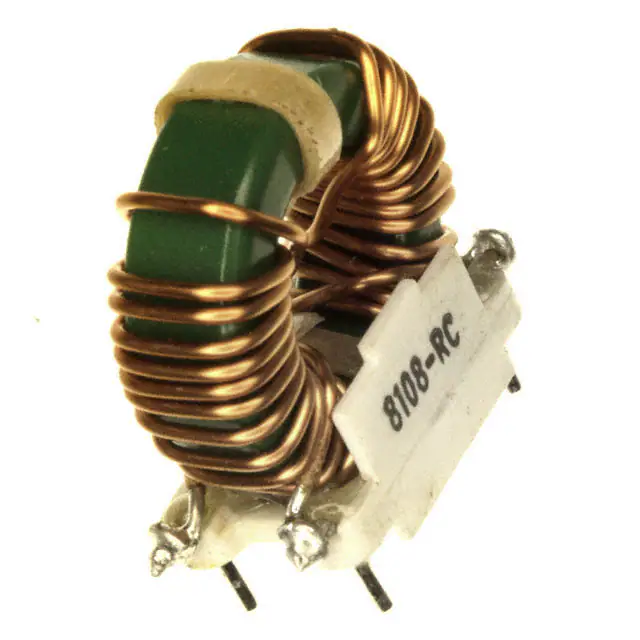

8108-RCCMC 1MH 10A 2LN TH |
2,015 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7448258022CMC 2.2MH 8A 2LN TH |
2,465 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 8A | 14mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
74482210002CMC 175UH 10A 2LN TH |
1,096 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 175 µH @ 100 kHz | 10A | 4mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744825510CMC 10MH 5A 2LN TH |
260 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 5A | 55mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

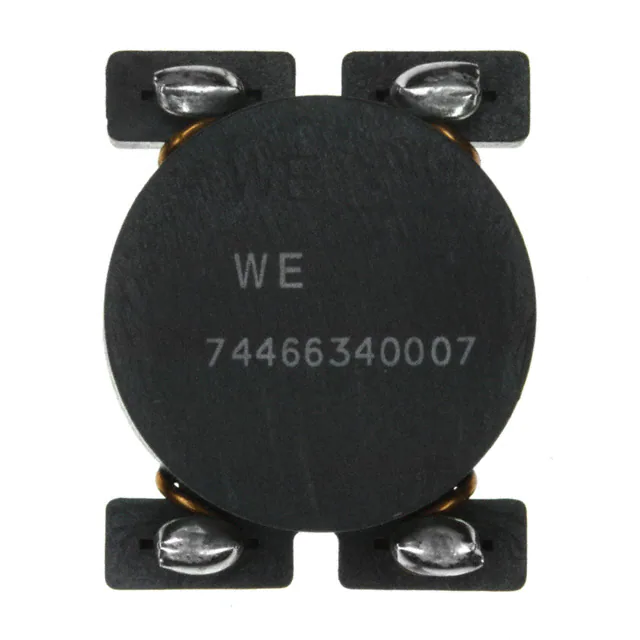

74466340007CMC 700UH 5.25A 2LN SMD |
530 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 700 µH @ 10 kHz | 5.25A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PLT10HN101150P0BCMC 15A 2LN 100 OHM TH |
2,958 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | 100 Ohms @ 10 MHz | - | 15A | 2.3mOhm | 300V | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
TCK-050CMC 325UH 3.3A 2LN TH |
8,716 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 325 µH @ 100 kHz | 3.3A | 35mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-048CMC 450UH 5.2A 2LN TH |
2,543 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 450 µH @ 100 kHz | 5.2A | 25mOhm | 500V | - | -40°C ~ 125°C | - | - | - | - | - |
|
7124-RCCMC 2.55MH 10A 2LN TH |
1,155 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 2.55 mH @ 1 kHz | 10A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CMT-8108CMC 1MH 10A 2LN TH ESD |
1,576 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
SCF-05-350CMC 3.5MH 5A 2LN TH |
906 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 5A | 35mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-10-10JCMC 1MH 10A 2LN TH |
1,058 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
T60405R6123X220CMC 470UH 20.5A 2LN 500 OHM TH |
4,198 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | 500 Ohms @ 100 kHz | 470 µH @ 100 kHz | 20.5A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
7448680120CMC 330UH 12A 2LN TH |
566 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 330 µH @ 10 kHz | 12A | 6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
CC2824J502R-10CMC 5UH 1.2A 2LN 400 OHM SMD |
5,419 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 400 Ohms @ 500 MHz | 5 µH @ 100 kHz | 1.2A | 100mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
