Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

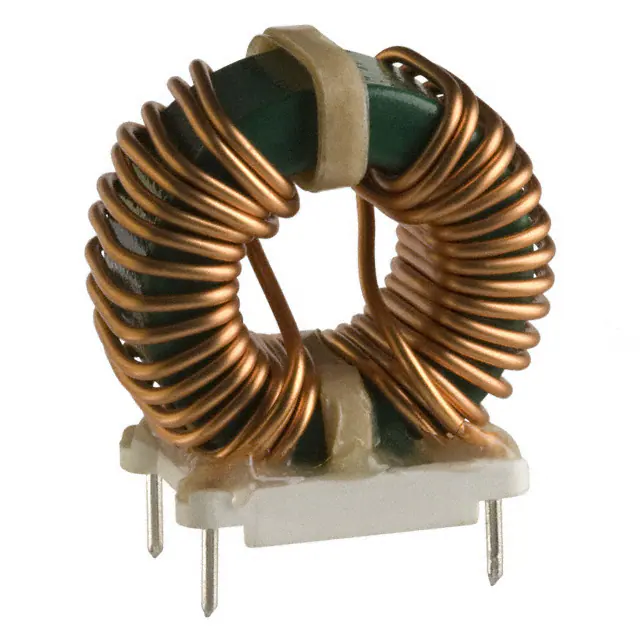

8114-RCCMC 2.5MH 12.5A 2LN TH |
1,270 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

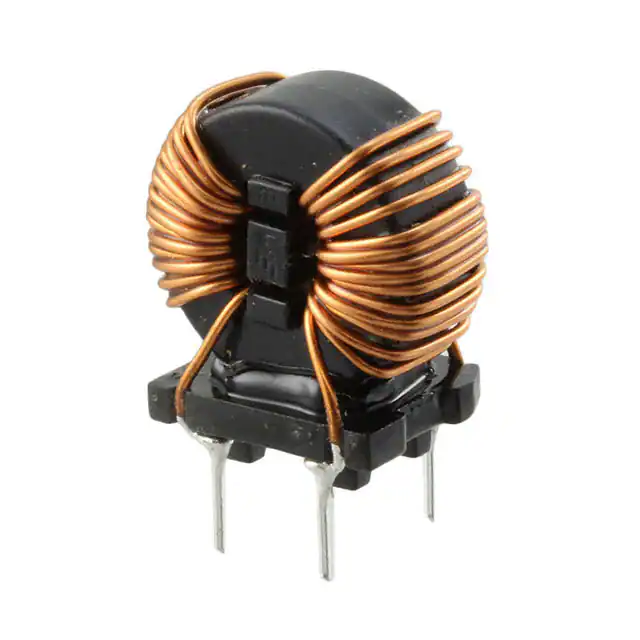

7448030509CMC 9MH 5A 2LN TH |
1,067 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 5A | 32mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448031002CMC 2MH 10A 2LN TH |
324 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 10A | 6.3mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448040707CMC 7MH 7A 2LN TH |
507 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 7A | 22mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|

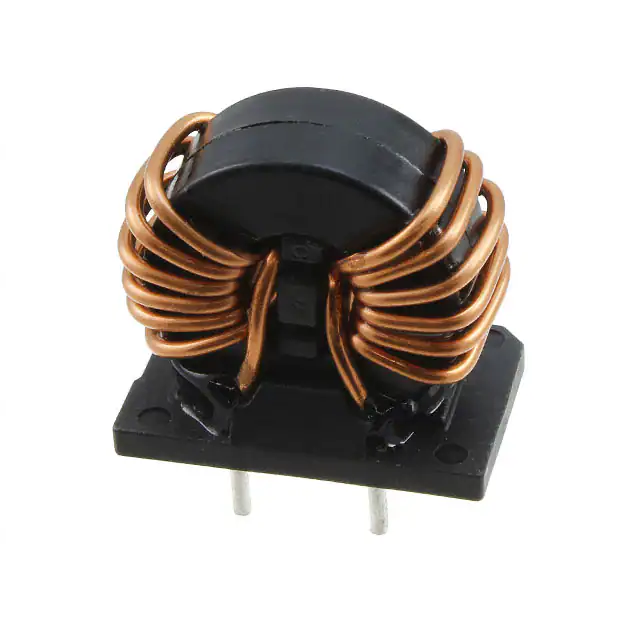

7448042001CMC 1MH 20A 2LN TH |
197 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 20A | 2.4mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CMX1616Z401B-10CMC 396UH 46A 2LN TH |
200 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 396 µH @ 100 kHz | 46A | 1.15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

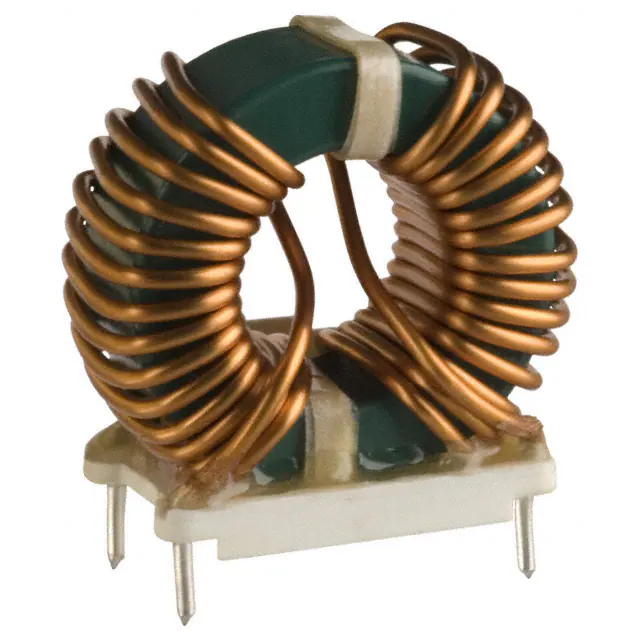

8120-RCCMC 2.4MH 17A 2LN TH |
539 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CMX1616Y222B-10CMC 2.156MH 19A 2LN TH |
292 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.156 mH @ 100 kHz | 19A | 6mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

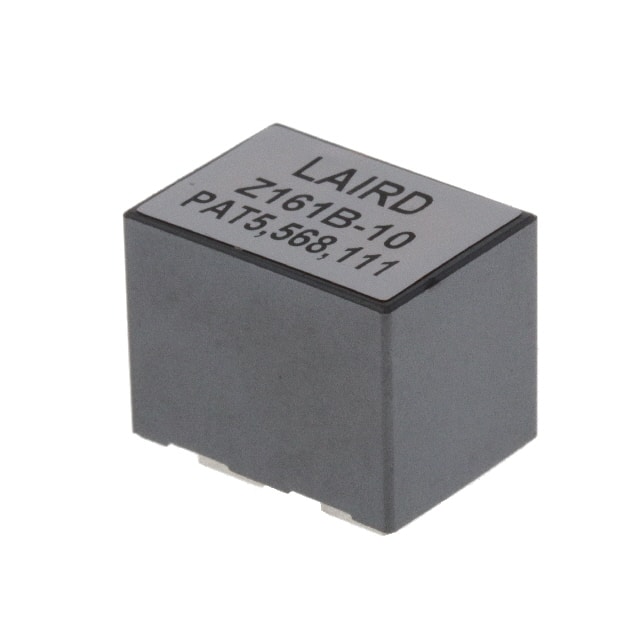

CM8663Z161B-10CMC 82A 2LN 160 OHM TH |
383 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 160 Ohms @ 100 MHz | - | 82A | 0.15mOhm | - | - | -40°C ~ 155°C | - | - | - | - | - |
|
CM6350R-683CMC 68UH 4.2A 2LN SMD |
2,183 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 68 µH @ 10 kHz | 4.2A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
T60405R6128X225CMC 1.01MH 25A 2LN 970 OHM TH |
182 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 970 Ohms @ 100 kHz | 1.01 mH @ 100 kHz | 25A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
7448051804CMC 4.5MH 18A 2LN TH |
153 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 18A | 4.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

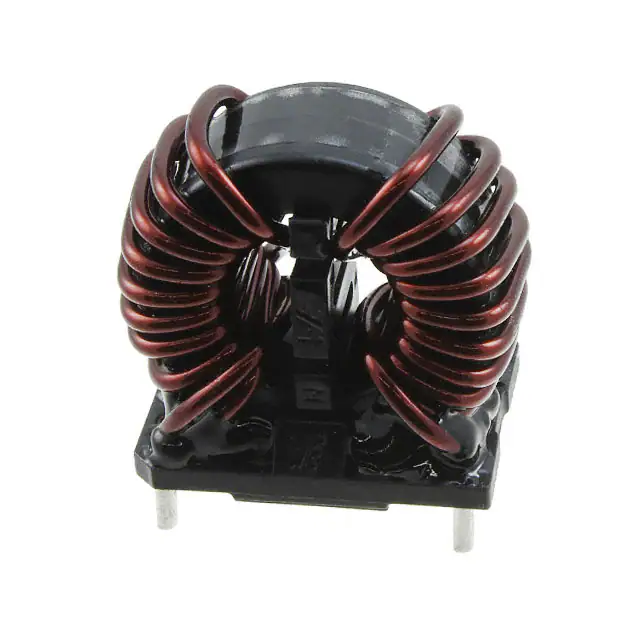

7448052502CMC 2.5MH 25A 2LN TH |
131 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 25A | 2.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
T60405S6123X317CMC 2.2MH 16A 3LN 2.4K OHM TH |
995 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | 2.4 kOhms @ 100 kHz | 2.2 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
PL8200CMC 14A 2LN SMD |
529 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 14A | 8mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

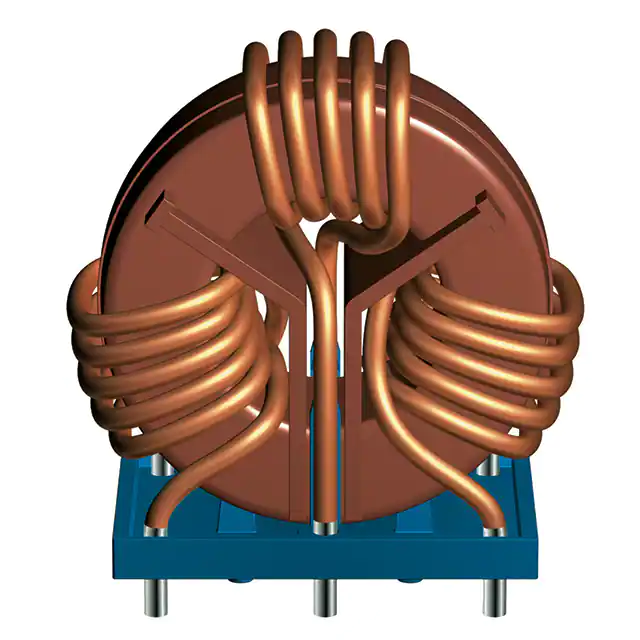

B82747E6163A040CMC 2.2MH 16A 3LN TH |
221 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 2.2 mH @ 10 kHz | 16A | 6mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
47721-490CMC 49UH 22A 2LN 140OHM CHAS MNT |
121 |
|
Datasheet |
Nonstandard | - | 2 | 140 Ohms @ 1 MHz | 49 µH @ 10 kHz | 22A | 3.5mOhm | - | - | - | - | - | - | - | - |
|
|
CM6350R-105CMC 1MH 900MA 2LN SMD |
1,940 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 10 kHz | 900mA | 130mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
T60405R6123X227CMC 2.8MH 25A 2LN 2.9K OHM TH |
694 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | 2.9 kOhms @ 100 kHz | 2.8 mH @ 100 kHz | 25A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
CM6460R-334CMC 330UH 4A 2LN SMD |
3,259 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 330 µH @ 10 kHz | 4A | 17mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
