Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82721A2202N001CMC 1MH 2A 2LN TH |
3,197 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720H0015A035CMC 68MH 200MA 2LN TH |
800 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 68 mH @ 10 kHz | 200mA | 3.3Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

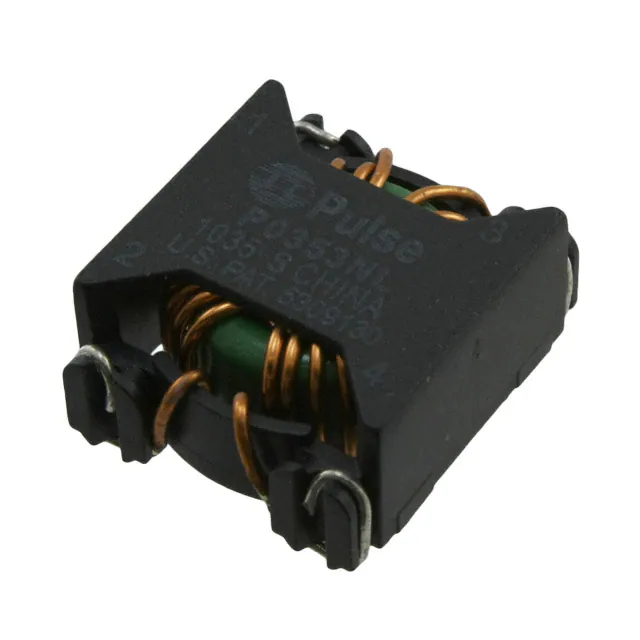

P0353NLTCMC 5.6A 2LN SMD |
363 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 5.6A | 21mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CM7060W101R-10CMC 9A 2LN 140 OHM SMD |
2,534 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 140 Ohms @ 100 MHz | - | 9A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
P0354NLTCMC 1.22A 2LN SMD |
2,139 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.22A | 200mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

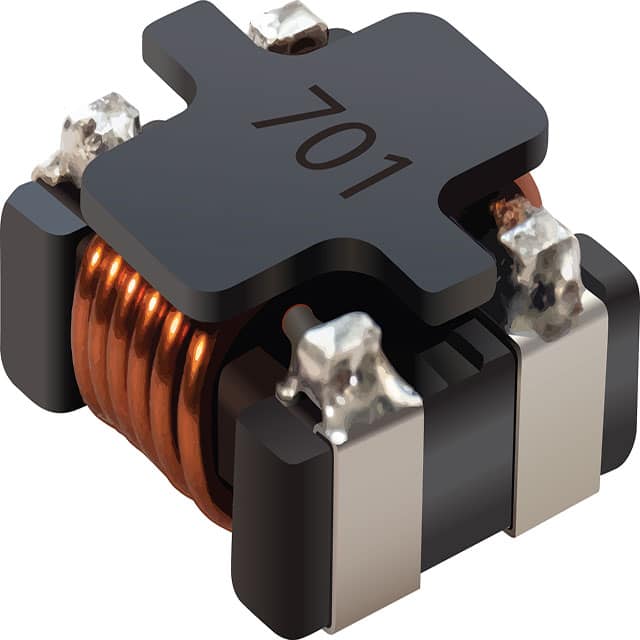

SRF1206A-701YCMC 9UH 8A 2LN 700OHM SMD |
704 |
|
Datasheet |
4-SMD | Power Line | 2 | 700 Ohms @ 100 MHz | 9 µH @ 100 kHz | 8A | 6mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
RN218-2.2-02-3M3CMC 3.3MH 2.2A 2LN TH |
441 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.2A | 100mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

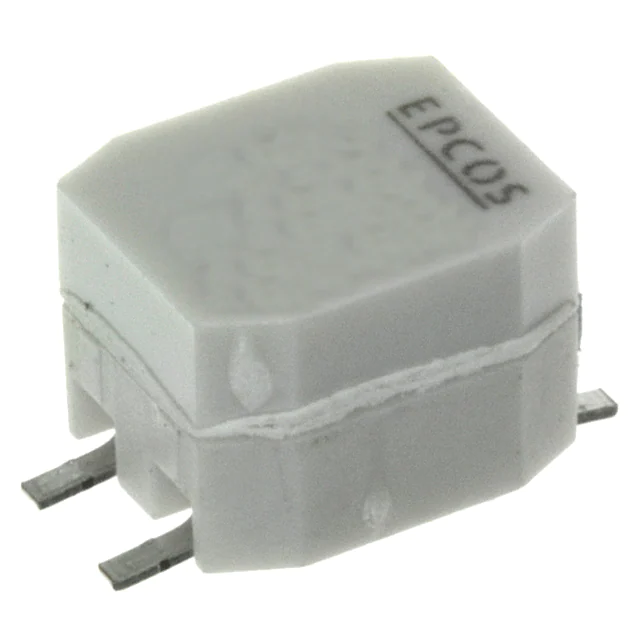

B82790S0513N201CMC 51UH 500MA 2LN SMD AEC-Q200 |
6,017 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82790C0113N201CMC 11UH 500MA 2LN SMD AEC-Q200 |
3,737 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 11 µH @ 100 kHz | 500mA | 80mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
CM3440Z171B-10CMC 20A 2LN 170 OHM TH |
8,378 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

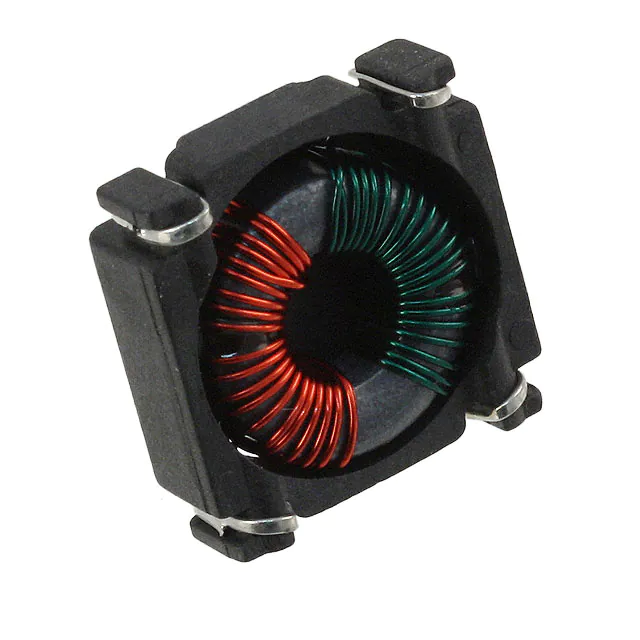

P0473NLTCMC 1.63A 2LN SMD |
4,326 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.63A | 110mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

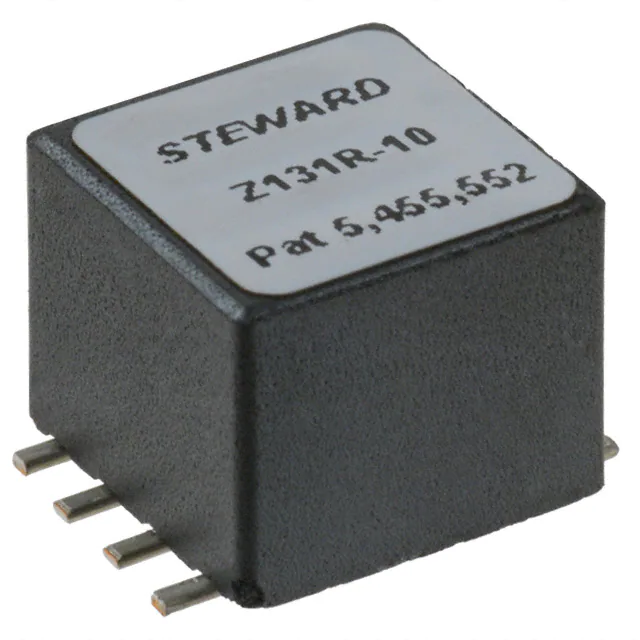

CM4545Z131R-10CMC 10A 4LN 130 OHM SMD |
4,266 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 130 Ohms @ 100 MHz | - | 10A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

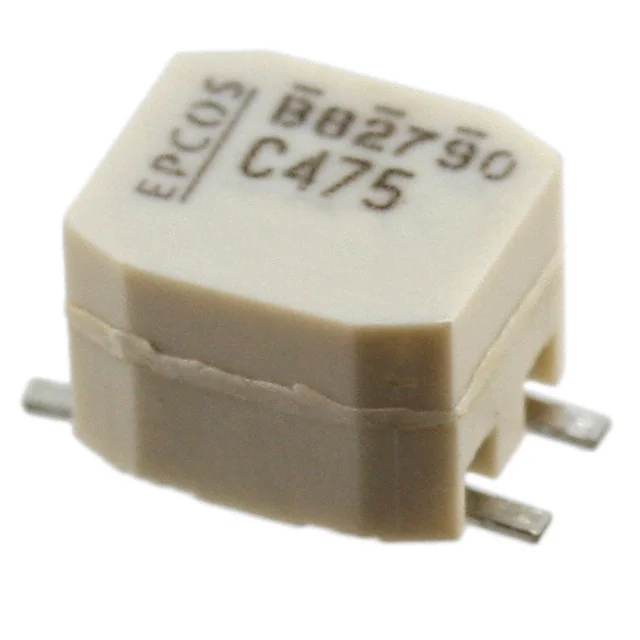

B82790C0475N265CMC 4.7MH 200MA 2LN SMD AEC-Q200 |
1,125 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 200mA | 510mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

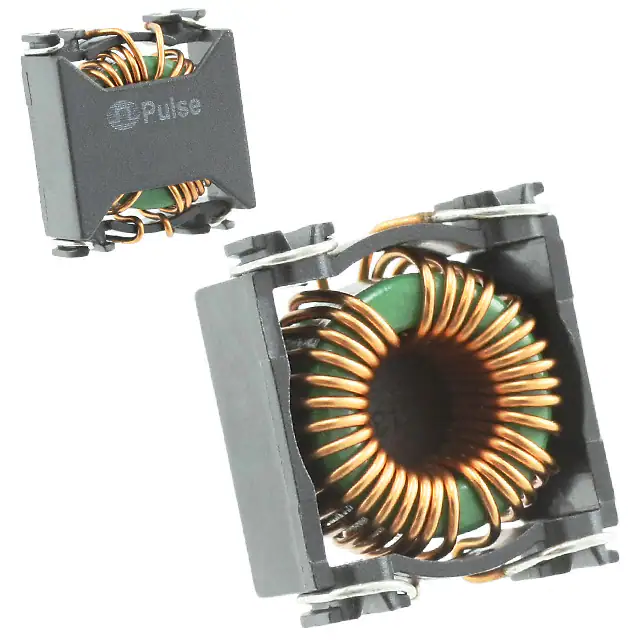

P0422NLTCMC 4.7A 2LN SMD |
784 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.7A | 40mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
51105CCMC 3.3A 2LN TH |
870 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.3A | 38mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMS1-10-RCMC 73.7UH 1.65A 2LN SMD |
2,315 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 73.7 µH @ 100 kHz | 1.65A | 48mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
M-521CTCMC 1A 2LN 700 OHM SMD |
2,287 |
|
Datasheet |
Vertical, 4 Gull Wing | Signal Line | 2 | 700 Ohms @ 10 MHz | - | 1A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|

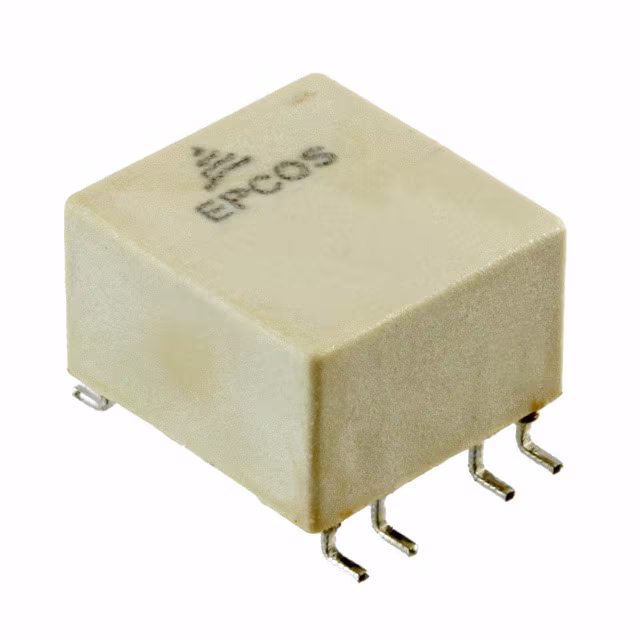

B82720S2301N040CMC 12MH 300MA 2LN SMD |
1,940 |
|
Datasheet |
Horizontal, 8 Gull Wing | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

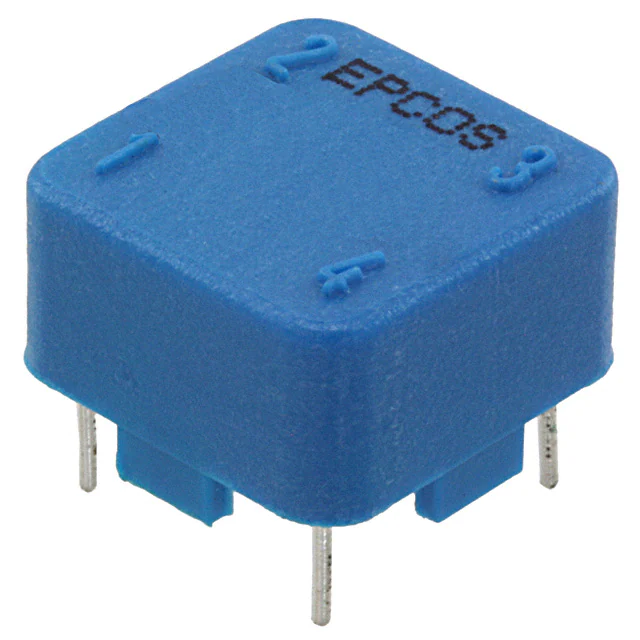

B82720A2601N040CMC 4.4MH 600MA 2LN TH |
176 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82790C0513N201CMC 51UH 500MA 2LN SMD AEC-Q200 |
8,445 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
