Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

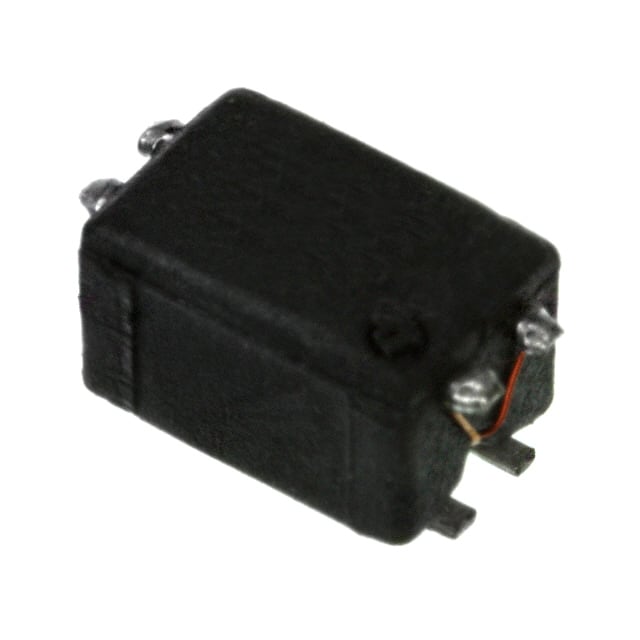

744242510CMC 51UH 400MA 2LN 2.5K OHM SMD |
34,636 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 2.5 kOhms @ 25 MHz | 51 µH @ 100 kHz | 400mA | 320mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

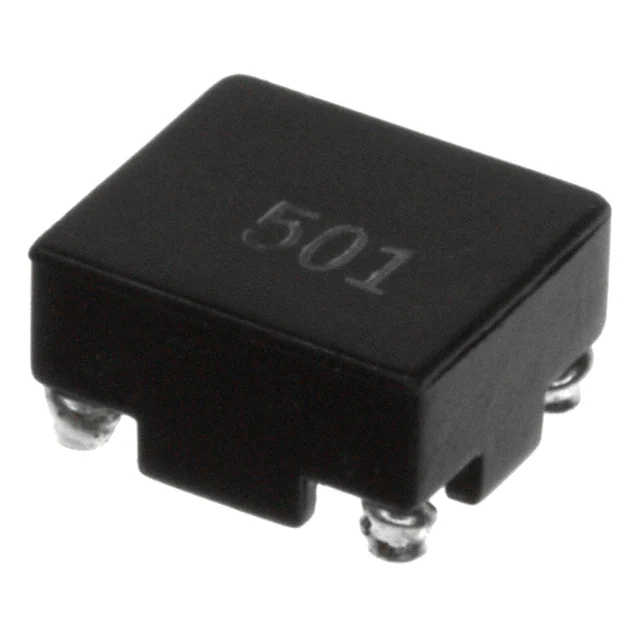

744273501CMC 5UH 5A 2LN 500 OHM SMD |
11,753 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 130 MHz | 5 µH @ 100 kHz | 5A | 5.5mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

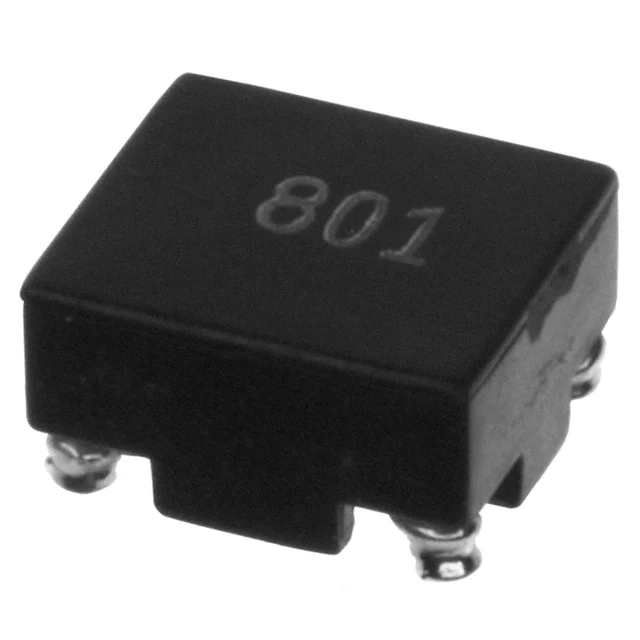

744273801CMC 9UH 3.5A 2LN 800 OHM SMD |
4,009 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 800 Ohms @ 120 MHz | 9 µH @ 100 kHz | 3.5A | 11mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744273102CMC 11UH 2.5A 2LN 1K OHM SMD |
2,204 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | 11 µH @ 100 kHz | 2.5A | 30mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744242471CMC 470UH 400MA 2LN 2.2K OHM SMD |
1,516 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 2.2 kOhms @ 15 MHz | 470 µH @ 100 kHz | 400mA | 350mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744242101CMC 100UH 300MA 2LN 4K OHM SMD |
848 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 4 kOhms @ 9 MHz | 100 µH @ 100 kHz | 300mA | 580mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
M-523CTCMC 1.5A 2LN 200 OHM SMD |
3,874 |
|
Datasheet |
Vertical, 4 Gull Wing | Signal Line | 2 | 200 Ohms @ 20 MHz | - | 1.5A | 65mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
AE2002CMC 160UH 100MA 2LN SMD AEC-Q200 |
5,463 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 160 µH @ 100 kHz | 100mA | 5Ohm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

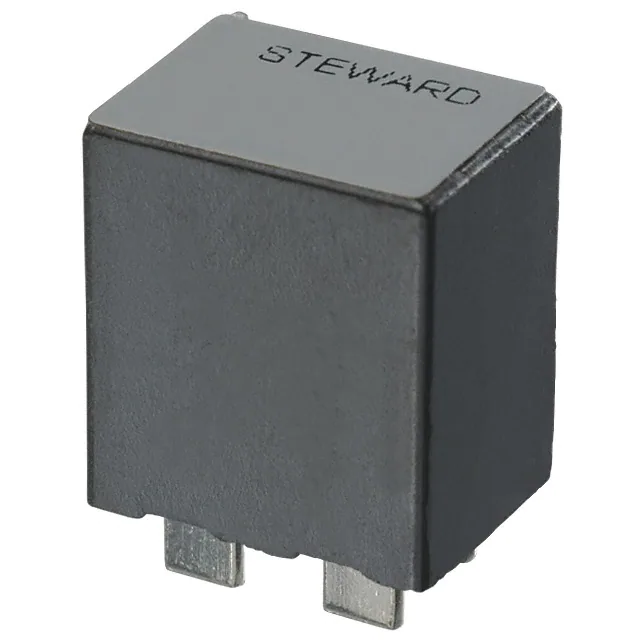

CM5441Z161B-10CMC 75A 2LN 160 OHM TH |
36,951 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 160 Ohms @ 100 MHz | - | 70A | 0.3mOhm | 340V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DLW5AHN402SQ2LCMC 200MA 2LN 4K OHM SMD |
775 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 4 kOhms @ 100 MHz | - | 200mA | 3Ohm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
CMS1-11-RCMC 100UH 1.35A 2LN SMD |
6,529 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 100 kHz | 1.35A | 70mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
DFKH-14-0001CMC 600MA 2LN TH |
3,226 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 600mA | 600mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
CMS1-4-RCMC 18UH 3.8A 2LN SMD |
2,918 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 18 µH @ 100 kHz | 3.8A | 8.9mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
RN222-4-02-3M3CMC 3.3MH 4A 2LN TH |
2,392 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 46mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
CMS1-7-RCMC 41.5UH 2.6A 2LN SMD |
3,583 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 41.5 µH @ 100 kHz | 2.6A | 19mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
CPFC6D36NP-100M06CMC 2.5A 2LN 600 OHM SMD |
76,486 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 600 Ohms @ 100 MHz | - | 2.5A | 20mOhm | - | - | -20°C ~ 100°C | - | - | - | - | - |
|

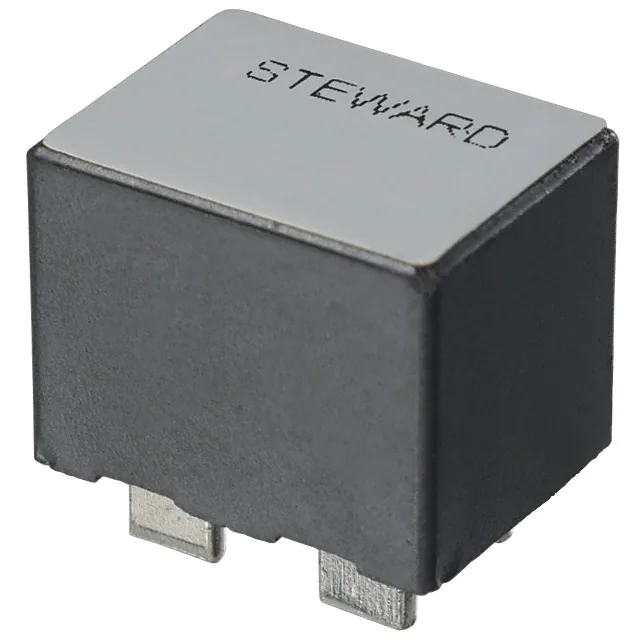

CM5441Z101B-10CMC 75A 2LN 100 OHM TH |
12,785 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 100 Ohms @ 100 MHz | - | 75A | 0.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

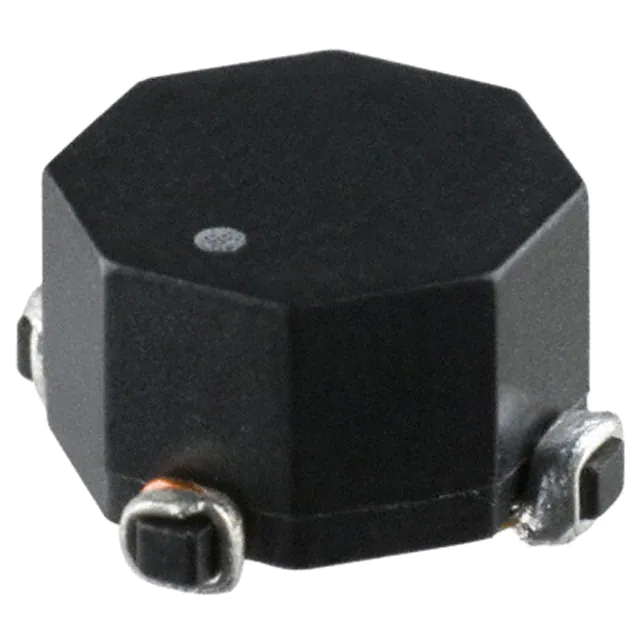

CMS2-4-RCMC 102UH 2.8A 2LN SMD |
3,912 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 102 µH @ 100 kHz | 2.8A | 19mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

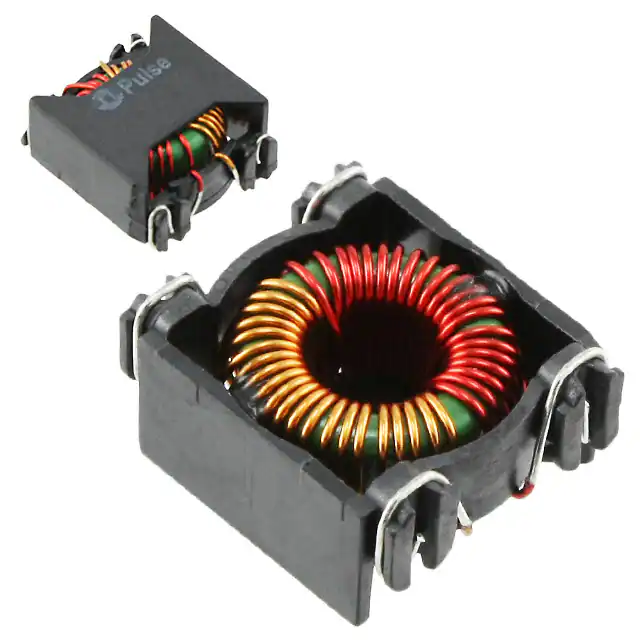

P0420NLCMC 3.3A 2LN SMD |
3,673 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
PA2755NLCMC 14A 2LN SMD |
662 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 14A | 1.95mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
