Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM2722R800R-10CMC 5A 4LN 80 OHM SMD |
6,001 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 80 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM7060M132R-10CMC 2.5A 2LN 1.3KOHM SMD |
10,059 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.3 kOhms @ 100 MHz | - | 2.5A | 25mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

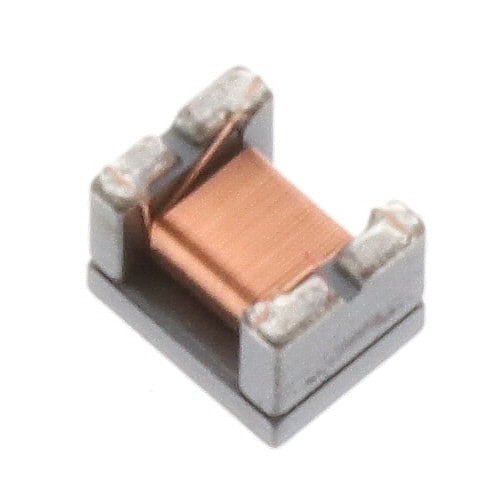

DLW32MH101XT2LCMC 100UH 100MA 2LN SMD AEC-Q200 |
4,514 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 100mA | 3.12Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CM7060N102R-10CMC 3A 2LN 1.02KOHM SMD |
3,185 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.02 kOhms @ 100 MHz | - | 3A | 17mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM5022R151R-10CMC 5A 8LN 150 OHM SMD |
6,930 |
|
Datasheet |
Vertical, 18 Flat Lead | Power Line | 8 | 150 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82790C0105N240CMC 1MH 500MA 2LN SMD AEC-Q200 |
3,522 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 1 mH @ 100 kHz | 500mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

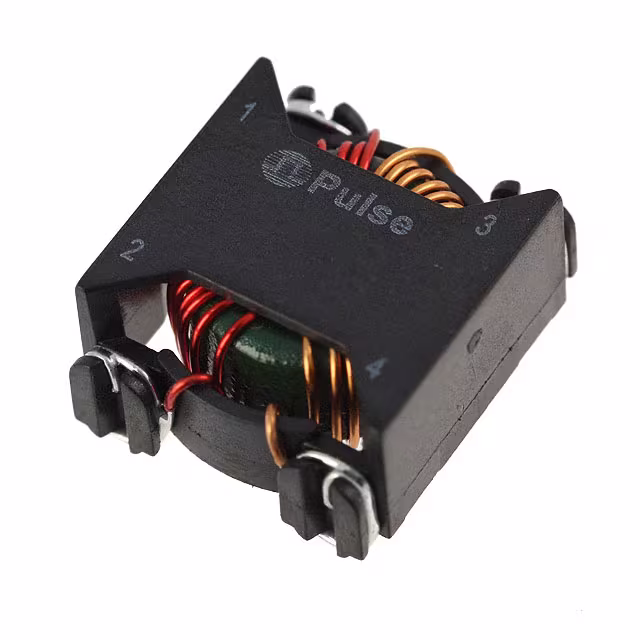

P0421NLTCMC 3.3A 2LN SMD |
136 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

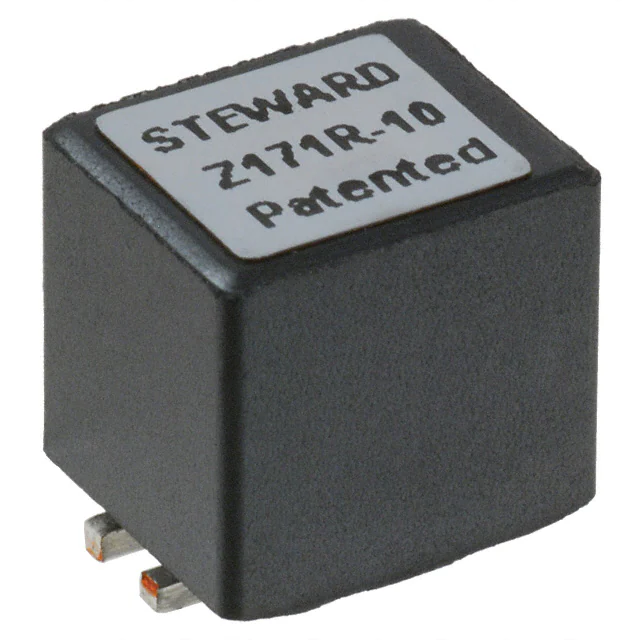

CM3440Z171R-10CMC 20A 2LN 170 OHM SMD |
6,456 |
|
Datasheet |
Vertical, 4 Flat Lead | Power Line | 2 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | 100V | - | -40°C ~ 125°C | - | - | - | - | - |
|
RN122-3-02-4M5CMC 4.5MH 3A 2LN TH |
723 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 3A | 80mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

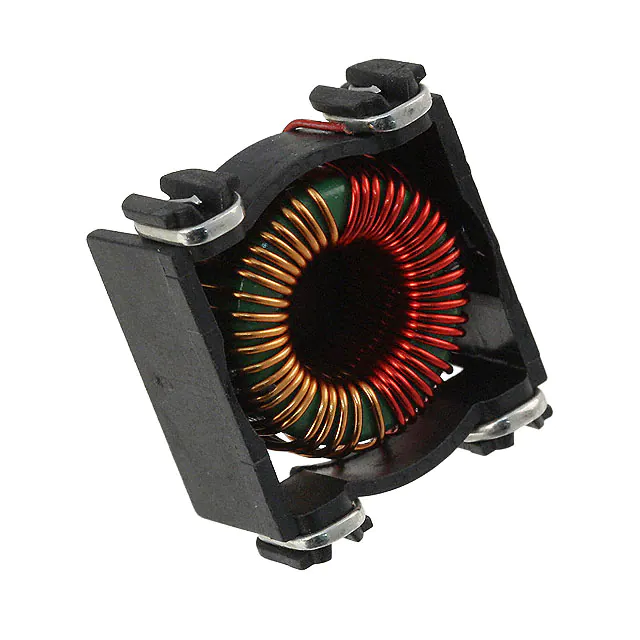

P0351NLCMC 2.8A 2LN SMD |
1,878 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.8A | 80mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
744272102CMC 1MH 950MA 2LN 3.6K OHM SMD |
4,820 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.6 kOhms @ 6 MHz | 1 mH @ 100 kHz | 950mA | 180mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272251CMC 250UH 2A 2LN 970 OHM SMD |
4,076 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 970 Ohms @ 15 MHz | 250 µH @ 100 kHz | 2A | 35mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272121CMC 120UH 2.5A 2LN 460 OHM SMD |
3,451 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 460 Ohms @ 30 MHz | 120 µH @ 100 kHz | 2.5A | 25mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272471CMC 470UH 1.6A 2LN 1.75K OHM SMD |
2,392 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.75 kOhms @ 10 MHz | 470 µH @ 100 kHz | 1.6A | 65mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272332CMC 3.3MH 650MA 2LN 8.9K OHM SMD |
1,546 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 8.9 kOhms @ 100 kHz | 3.3 mH @ 100 kHz | 650mA | 360mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272221CMC 220UH 2.2A 2LN 780 OHM SMD |
549 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 780 Ohms @ 15 MHz | 220 µH @ 100 kHz | 2.2A | 32mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
P0351NLTCMC 2.8A 2LN SMD |
1,049 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.8A | 80mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
744841414CMC 14UH 4A 2LN TH |
896 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 14 µH @ 10 kHz | 4A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

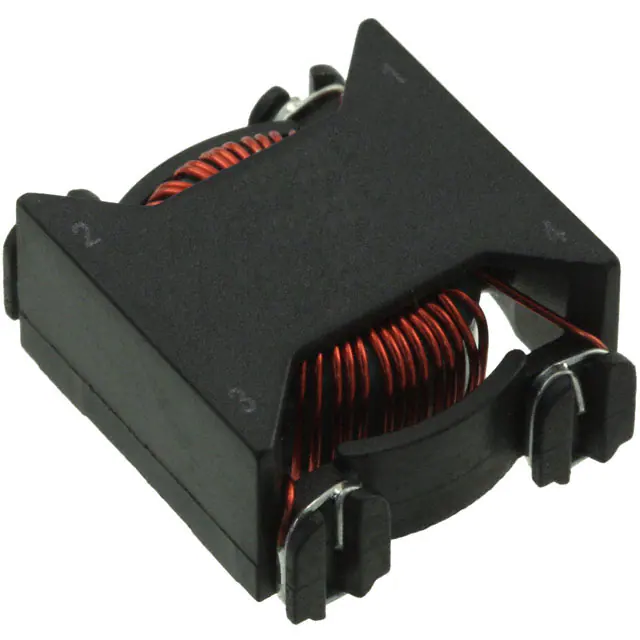

PE-53913NLTCMC 1A 2LN SMD |
843 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 1A | 450mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
|
RN122-4-02-3M3CMC 3.3MH 4A 2LN TH |
2,988 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 46mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
