Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

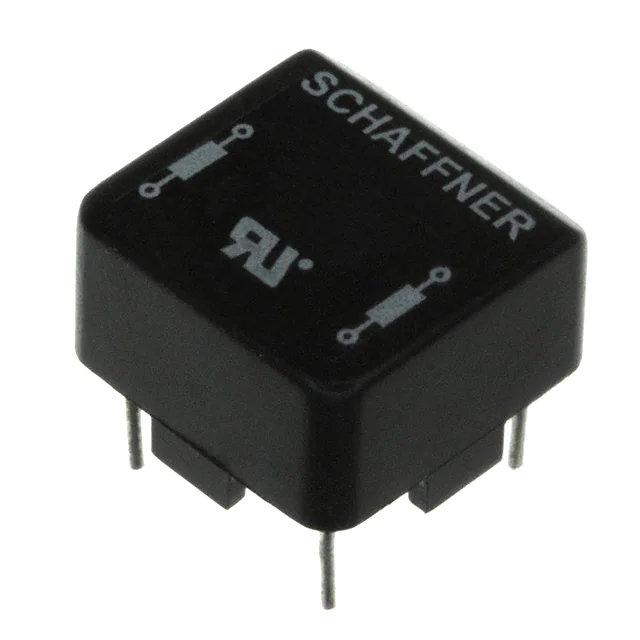

RN202-0.6-02-4M4CMC 4.4MH 600MA 2LN TH |
1,997 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN102-0.6-02-4M4CMC 4.4MH 600MA 2LN TH |
1,458 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82721A2122N020CMC 6.8MH 1.2A 2LN TH |
12,554 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
ACT1210G-800-2P-TL10CMC 80UH 70MA 2LN 3.8KOHM SMD |
5,541 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.8 kOhms @ 10 MHz | 80 µH @ 100 kHz | 70mA | 2.6Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
CM0805C221R-10CMC 300MA 2LN 220 OHM SMD |
132,182 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN102-2-02-1M1CMC 1.1MH 2A 2LN TH |
6,053 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN112-0.8-02-10MCMC 10MH 800MA 2LN TH |
5,222 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 800mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN112-0.6-02-15MCMC 15MH 600MA 2LN TH |
3,595 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 600mA | 490mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN212-0.8-02-10MCMC 10MH 800MA 2LN TH |
1,521 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 800mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN112-1.2-02-6M8CMC 6.8MH 1.2A 2LN TH |
3,530 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 250mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
744253200CMC 20UH 500MA 3LN SMD |
2,281 |
|
Datasheet |
- | Signal Line | 3 | - | 20 µH @ 100 kHz | 500mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN112-1.5-02-3M3CMC 3.3MH 1.5A 2LN TH |
966 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 102mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PLT5BPH5013R1SNLCMC 1.8A 2LN 500OHM SMD AEC-Q200 |
21,715 |
|
Datasheet |
Vertical, 4 PC Pad | - | 2 | 500 Ohms @ 10 MHz | - | 1.8A | 22.1mOhm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
|
|
PLT5BPH3013R7SNLCMC 2.2A 2LN 300OHM SMD AEC-Q200 |
3,976 |
|
Datasheet |
Vertical, 4 PC Pad | - | 2 | 300 Ohms @ 10 MHz | - | 2.2A | 11mOhm (Typ) | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
PLT5BPH1015R6SNLCMC 2.9A 2LN 100OHM SMD AEC-Q200 |
2,459 |
|
Datasheet |
Vertical, 4 PC Pad | - | 2 | 100 Ohms @ 10 MHz | - | 2.9A | 5mOhm (Typ) | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACT1210E-241-2P-TL00CMC 240UH 70MA 2LN SMD AEC-Q200 |
17,101 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 240 µH @ 100 kHz | 70mA | 4.1Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

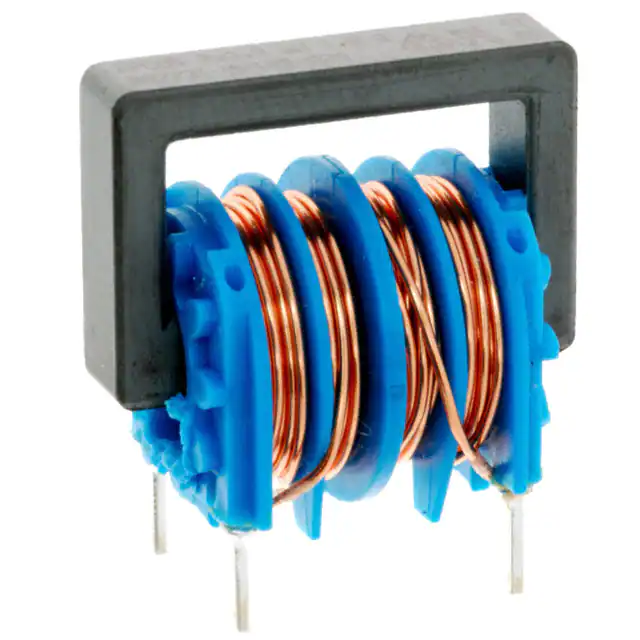

B82731M2132A030CMC 6.8MH 1.3A 2LN TH |
3,127 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CPFC805NP-100M05CMC 4.5A 2LN 500 OHM SMD |
8,308 |
|
Datasheet |
- | Power Line | 2 | 500 Ohms @ 100 MHz | - | 4.5A | 15mOhm | - | - | - | - | - | - | - | - |
|
|
RN112-4-02-0M7CMC 700UH 4A 2LN TH |
1,449 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 4A | 24mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
7427521CMC 19A 2LN 52 OHM SMD |
6,213 |
|
Datasheet |
0302 (0805 Metric) | Power, Signal Line | 2 | 52 Ohms @ 100 MHz | - | 19A | 3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
