Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACT1210D-131-2P-TL00CMC 130UH 115MA 2LN 6.7KOHM SMD |
7,341 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 6.7 kOhms @ 10 MHz | 130 µH @ 100 kHz | 115mA | 3.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW43MH201XK2LCMC 200UH 110MA 2LN SMD AEC-Q200 |
349 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 110mA | 4.5Ohm | 20V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
ACM1211-701-2PL-TL01CMC 8A 2LN 700 OHM SMD |
11,057 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM90V-701-2PL-TL00CMC 8A 2LN 100MHZ SMD |
10,165 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | Automotive | AEC-Q200 |
|
CM0805A371R-10CMC 100MA 2LN 370 OHM SMD |
196,866 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 100mA | 500mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82789C0104H002CMC 100UH 150MA 2LN SMD AEC-Q200 |
10,294 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 150°C | - | - | - | - | - |
|
B82793S0513N201CMC 51UH 800MA 2LN SMD AEC-Q200 |
7,084 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 800mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW32MH201XK2LCMC 200UH 70MA 2LN SMD AEC-Q200 |
13,244 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 200 µH @ 100 kHz | 70mA | 4.8Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW32MH101XK2LCMC 100UH 100MA 2LN SMD AEC-Q200 |
2,360 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 100mA | 3.36Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACT1210L-201-2P-TL00CMC 200UH 70MA 2LN SMD AEC-Q200 |
15,208 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACT45B-510-2P-TL003CMC 51UH 200MA 2LN 2.8KOHM SMD |
10,405 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACT45B-220-2P-TL003CMC 22UH 200MA 2LN 1.2KOHM SMD |
42,088 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
ACT1210L-101-2P-TL00CMC 100UH 150MA 2LN SMD AEC-Q200 |
20,674 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | A2B | - | - |
|
PA4339.101NLTCMC 1.8UH 9A 2LN 140 OHM SMD |
15,622 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 140 Ohms @ 100 MHz | 1.8 µH @ 100 kHz | 9A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4339.132NLTCMC 9UH 2.5A 2LN 1.3K OHM SMD |
5,005 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1.3 kOhms @ 100 MHz | 9 µH @ 100 kHz | 2.5A | 21mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4339.701NLTCMC 5UH 4A 2LN 700 OHM SMD |
3,678 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 700 Ohms @ 100 MHz | 5 µH @ 100 kHz | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACT1210-110-2P-TL00CMC 11UH 300MA 2LN 550OHM SMD |
49,017 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 400mOhm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
|
EMI8142MUTAGCMC 100MA 4LN SMD ESD |
22,761 |
|
Datasheet |
10-XFDFN | Signal Line | 4 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

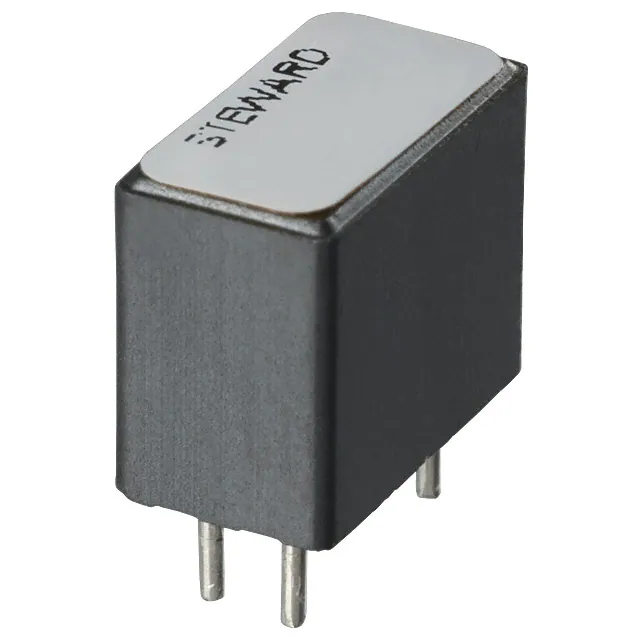

CM2545X171B-10CMC 10A 2LN 170 OHM TH |
26,091 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 170 Ohms @ 100 MHz | - | 10A | 10mOhm | 340V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DLW5BTH142TQ2LCMC 1.5A 2LN 1.4KOHM SMD AECQ200 |
3,343 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
