Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSA255R6JRES CHAS MNT 5.6 OHM 5% 25W |
382 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 5.6 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA25820RJRES CHAS MNT 820 OHM 5% 25W |
237 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 820 Ohms | ±5% | 25W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA2582RJRES CHAS MNT 82 OHM 5% 25W |
184 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 82 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA25R22JRES CHAS MNT 0.22 OHM 5% 25W |
169 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 220 mOhms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA2556RJRES CHAS MNT 56 OHM 5% 25W |
130 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 56 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA25R01JRES CHAS MNT 0.01 OHM 5% 25W |
120 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 10 mOhms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA2522KJRES CHAS MNT 22K OHM 5% 25W |
263 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 22 kOhms | ±5% | 25W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
HSA2512RJRES CHAS MNT 12 OHM 5% 25W |
212 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 12 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
HSA502K2JRES CHAS MNT 2.2K OHM 5% 50W |
5,404 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 2.2 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA5068RJRES CHAS MNT 68 OHM 5% 50W |
3,716 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 68 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA503R3JRES CHAS MNT 3.3 OHM 5% 50W |
3,219 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3.3 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA50330RJRES CHAS MNT 330 OHM 5% 50W |
2,504 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 330 Ohms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA5015KERES CHAS MNT 15K OHM 3% 50W |
2,186 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 15 kOhms | ±3% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA50150RJRES CHAS MNT 150 OHM 5% 50W |
988 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 150 Ohms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|

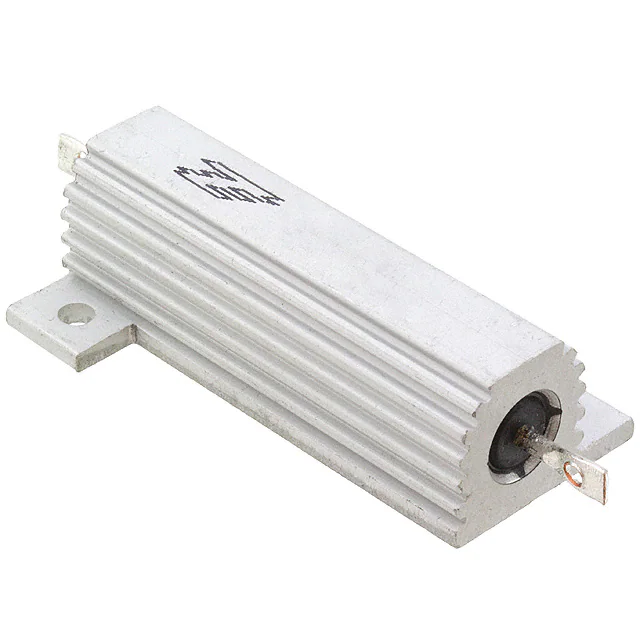

THS5010RJRES CHAS MNT 10 OHM 5% 50W |
658 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 10 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
THS5050KJRES CHAS MNT 50K OHM 5% 50W |
347 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 50 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS501K0JRES CHAS MNT 1K OHM 5% 50W |
210 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 1 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS50R01JRES CHAS MNT 0.01 OHM 5% 50W |
166 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 10 mOhms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS5010KJRES CHAS MNT 10K OHM 5% 50W |
164 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 10 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
AHA50AFB-0R75RESISTOR CHASSIS MOUNT 0.75 OHM |
245 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 750 mOhms | ±1% | 50W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 0.650" (16.50mm) | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
