Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSA5060RJRES CHAS MNT 60 OHM 5% 50W |
131 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 60 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA50200RJRES CHAS MNT 200 OHM 5% 50W |
130 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 200 Ohms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
HSA50220RJRES CHAS MNT 220 OHM 5% 50W |
125 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 220 Ohms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA5055RJRES CHAS MNT 55 OHM 5% 50W |
118 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 55 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
HSA502R7JRES CHAS MNT 2.7 OHM 5% 50W |
117 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 2.7 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA50R68JRES CHAS MNT 0.68 OHM 5% 50W |
101 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 680 mOhms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|

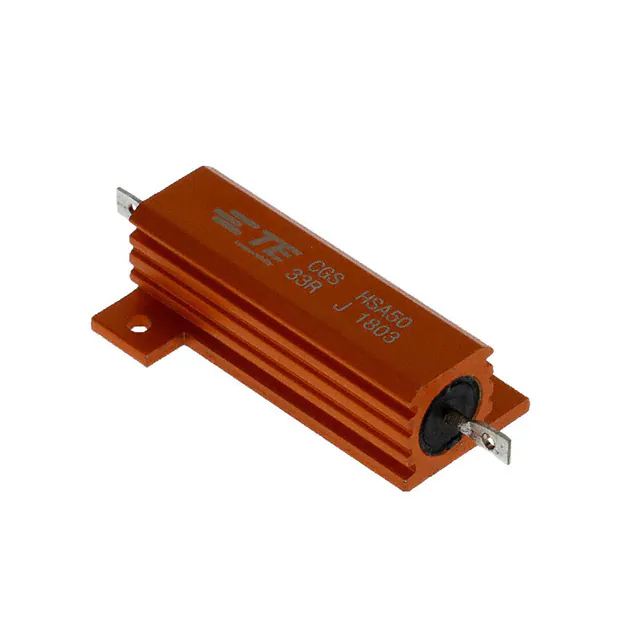

HSA5033RJRES CHAS MNT 33 OHM 5% 50W |
306 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 33 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA5075RJRES CHAS MNT 75 OHM 5% 50W |
241 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 75 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA50R10JRES CHAS MNT 0.1 OHM 5% 50W |
198 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 100 mOhms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA5080RJRES CHAS MNT 80 OHM 5% 50W |
190 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 80 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA507R5JRES CHAS MNT 7.5 OHM 5% 50W |
187 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 7.5 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA50R02JRES CHAS MNT 0.02 OHM 5% 50W |
183 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 20 mOhms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA506R0JRES CHAS MNT 6 OHM 5% 50W |
152 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 6 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA508R2JRES CHAS MNT 8.2 OHM 5% 50W |
151 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 8.2 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA503K0JRES CHAS MNT 3K OHM 5% 50W |
122 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA50R025JRES CHAS MNT 0.025 OHM 5% 50W |
109 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 25 mOhms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA503R9JRES CHAS MNT 3.9 OHM 5% 50W |
107 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3.9 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA5018RJRES CHAS MNT 18 OHM 5% 50W |
219 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 18 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
HSA501R0JRES CHAS MNT 1 OHM 5% 50W |
205 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 1 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA5050KJRES CHAS MNT 50K OHM 5% 50W |
189 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 50 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
