Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THS101R0JRES CHAS MNT 1 OHM 5% 10W |
121 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 1 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS10200RJRES CHAS MNT 200 OHM 5% 10W |
119 |
|
Datasheet |
THS, CGS | Axial, Box | Bag | Active | 200 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|

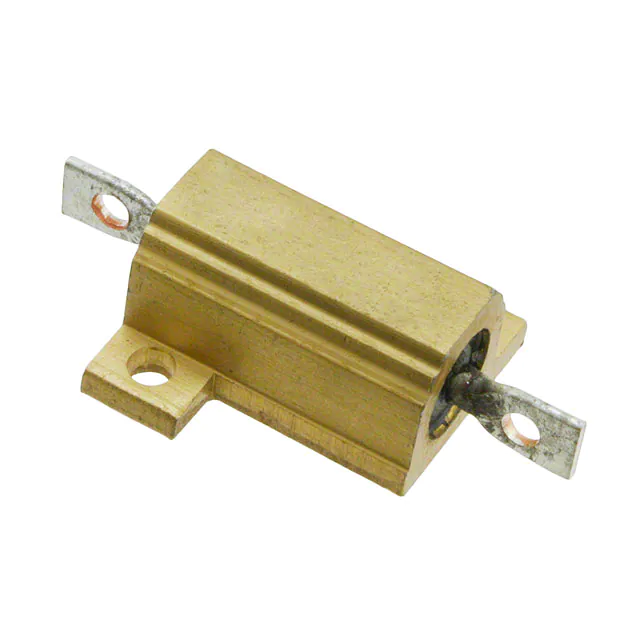

HSA5600RJRES CHAS MNT 600 OHM 5% 10W |
239 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 600 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA53R3JRES CHAS MNT 3.3 OHM 5% 10W |
255 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3.3 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA510KJRES CHAS MNT 10K OHM 5% 10W |
223 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 10 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA56R8JRES CHAS MNT 6.8 OHM 5% 10W |
167 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 6.8 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
HSA256R2ERES CHAS MNT 6.2 OHM 3% 25W |
4,092 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 6.2 Ohms | ±3% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
HSA25120RJRES CHAS MNT 120 OHM 5% 25W |
1,936 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 120 Ohms | ±5% | 25W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA253R3JRES CHAS MNT 3.3 OHM 5% 25W |
1,256 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3.3 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
THS1575RJRES CHAS MNT 75 OHM 5% 15W |
584 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 75 Ohms | ±5% | 15W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
|
THS1510RJRES CHAS MNT 10 OHM 5% 15W |
254 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 10 Ohms | ±5% | 15W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
|
THS15120RJRES CHAS MNT 120 OHM 5% 15W |
155 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 120 Ohms | ±5% | 15W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
|
THS1550RJRES CHAS MNT 50 OHM 5% 15W |
150 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 50 Ohms | ±5% | 15W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
HSA1022RJRES CHAS MNT 22 OHM 5% 16W |
538 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 22 Ohms | ±5% | 16W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
|
HSA1030RJRES CHAS MNT 30 OHM 5% 16W |
288 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 30 Ohms | ±5% | 16W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
|
HSA1047RJRES CHAS MNT 47 OHM 5% 16W |
211 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 47 Ohms | ±5% | 16W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
|
HSA10100RJRES CHAS MNT 100 OHM 5% 16W |
321 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 100 Ohms | ±5% | 16W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
AHA50AFB-25RRES CHAS MNT 25 OHM 1% 50W |
250 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 25 Ohms | ±1% | 50W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 0.650" (16.50mm) | Solder Lugs | - | - | - |
|
AHA10AFB-100RRES CHAS MNT 100 OHM 1% 10W |
649 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 100 Ohms | ±1% | 10W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 0.748" L x 0.787" W (19.00mm x 20.00mm) | 0.429" (10.90mm) | Solder Lugs | - | - | - |
|
|
THS506R8JRES CHAS MNT 6.8 OHM 5% 50W |
7,570 |
|
Datasheet |
THS, CGS | Axial, Box | Bulk | Active | 6.8 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
