Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSE100022ER500KERES CHAS MNT 0.5 OHM 10% 1000W |
34 |
|
Datasheet |
FSE | Radial, Tubular | Bulk | Active | 500 mOhms | ±10% | 1000W | Wirewound | - | -55°C ~ 350°C | - | Silicone Coated | Brackets (not included) | 2.500" Dia x 15.000" L (63.50mm x 381.00mm) | - | Solder Lugs | - | - | - |
|
AHA10AFB-1RRES CHAS MNT 1 OHM 1% 10W |
539 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 1 Ohms | ±1% | 10W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 0.748" L x 0.799" W (19.00mm x 20.30mm) | 0.429" (10.90mm) | Solder Lugs | - | - | - |
|
SQBW2010RJRES CHAS MNT 10 OHM 5% 20W |
3,752 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 10 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 2.362" L x 0.571" W (60.00mm x 14.50mm) | 0.571" (14.50mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
AHA25AFB-10RRES CHAS MNT 10 OHM 1% 25W |
159 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 10 Ohms | ±1% | 25W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.063" L x 1.063" W (27.00mm x 27.00mm) | 0.587" (14.90mm) | Solder Lugs | - | - | - |
|
SQBW20220RJRES 220 OHM 20W 5% RADIAL |
1,243 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 220 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW206R8JRES 6.8 OHM 20W 5% RADIAL |
1,064 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 6.8 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW201R0JRES 1 OHM 20W 5% RADIAL |
1,054 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 1 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW2047RJRES 47 OHM 20W 5% RADIAL |
875 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 47 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW201K0JRES 1K OHM 20W 5% RADIAL |
525 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 1 kOhms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW2015RJRES 15 OHM 20W 5% RADIAL |
456 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 15 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW202R2JRES 2.2 OHM 20W 5% RADIAL |
396 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 2.2 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW204R7JRES 4.7 OHM 20W 5% RADIAL |
315 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 4.7 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
|
SQBW203R3JRES 3.3 OHM 20W 5% RADIAL |
189 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 3.3 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|

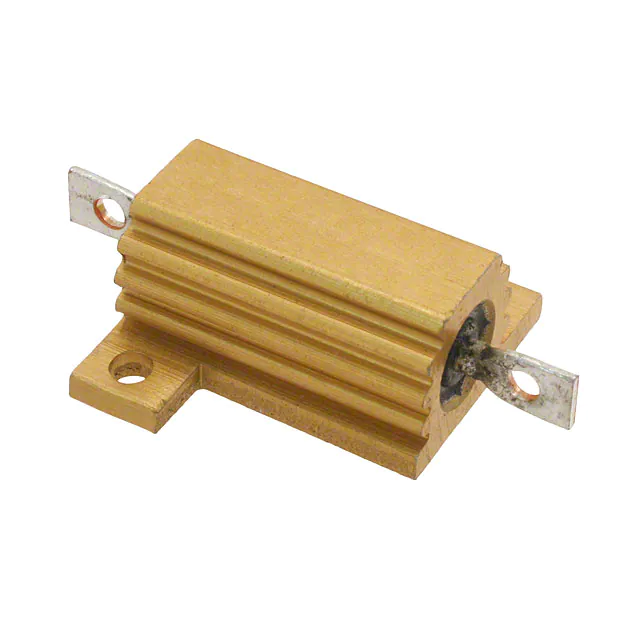

HSA1010RJRES CHAS MNT 10 OHM 5% 16W |
1,882 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 10 Ohms | ±5% | 16W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
|
|
AHA10AFB-25RRES CHAS MNT 25 OHM 1% 10W |
476 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 25 Ohms | ±1% | 10W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 0.748" L x 0.787" W (19.00mm x 20.00mm) | 0.429" (10.90mm) | Solder Lugs | - | - | - |
|

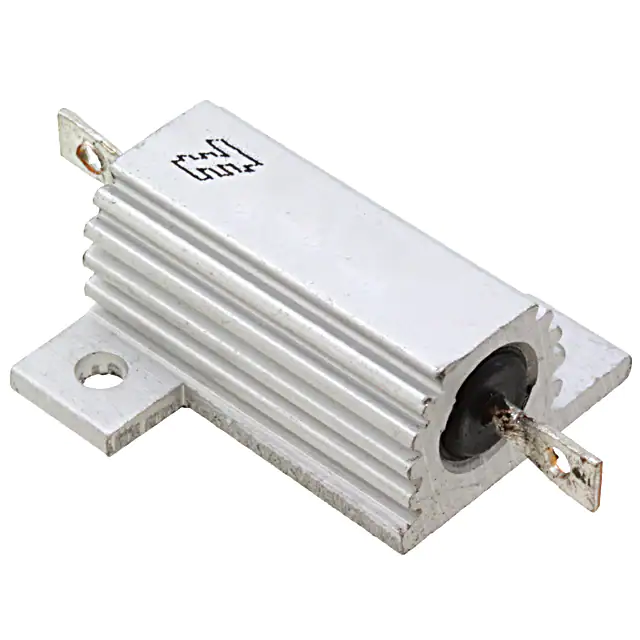

THS1047RJRES CHAS MNT 47 OHM 5% 10W |
753 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 47 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS1022RJRES CHAS MNT 22 OHM 5% 10W |
669 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 22 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS10R50JRES CHAS MNT 0.5 OHM 5% 10W |
628 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 500 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS1010RJRES CHAS MNT 10 OHM 5% 10W |
324 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 10 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS10270RJRES CHAS MNT 270 OHM 5% 10W |
128 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 270 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
