Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSA50R50JRES CHAS MNT 0.5 OHM 5% 50W |
3,134 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 500 mOhms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA505R6JRES CHAS MNT 5.6 OHM 5% 50W |
303 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 5.6 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
HSC10022RJRES CHAS MNT 22 OHM 5% 100W |
2,176 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 22 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC10047RJRES CHAS MNT 47 OHM 5% 100W |
1,682 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 47 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC1001K5JRES CHAS MNT 1.5K OHM 5% 100W |
965 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 1.5 kOhms | ±5% | 100W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
HSC1006R8JRES CHAS MNT 6.8 OHM 5% 100W |
571 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 6.8 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
HSC1002R2JRES CHAS MNT 2.2 OHM 5% 100W |
464 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 2.2 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC10012RJRES CHAS MNT 12 OHM 5% 100W |
176 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 12 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|

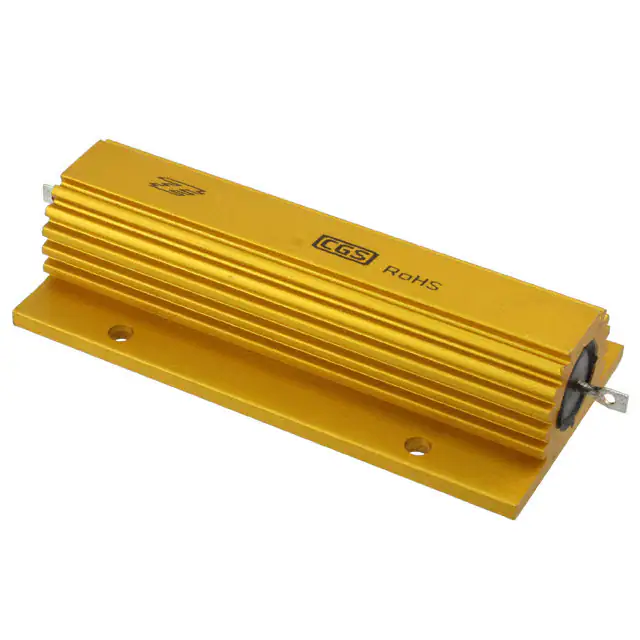

HSC15047RJRES CHAS MNT 47 OHM 5% 150W |
1,418 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 47 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
RCH50S10R00JS06RES CHAS MNT 10 OHM 5% 50W |
141 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bulk | Active | 10 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.157" W (47.80mm x 29.40mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
HSC2001R0JRES CHAS MNT 1 OHM 5% 200W |
104 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 1 Ohms | ±5% | 200W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.543" L x 2.874" W (90.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
LPS0300H1000JBRES CHAS MNT 100 OHM 5% 300W |
707 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 100 Ohms | ±5% | 300W | Thick Film | ±150ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS0300H4700JBRES CHAS MNT 470 OHM 5% 300W |
83 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 470 Ohms | ±5% | 300W | Thick Film | ±150ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|

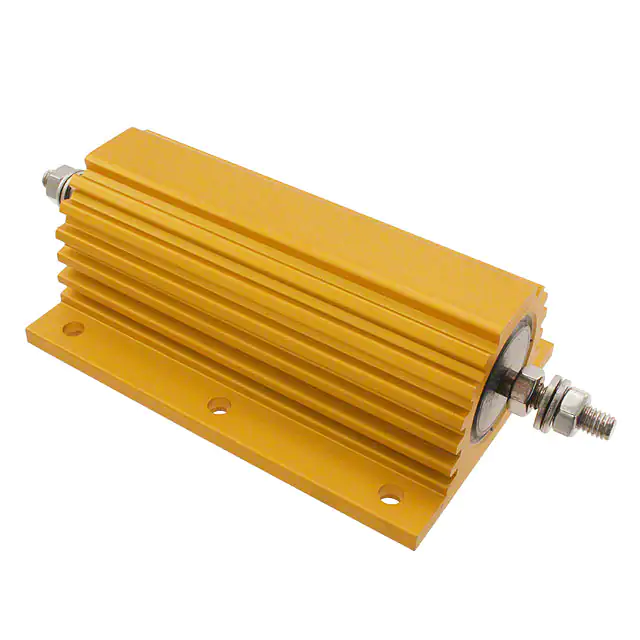

HSC2504R7JRES CHAS MNT 4.7 OHM 5% 250W |
255 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 4.7 Ohms | ±5% | 250W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 4.291" L x 2.874" W (109.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|

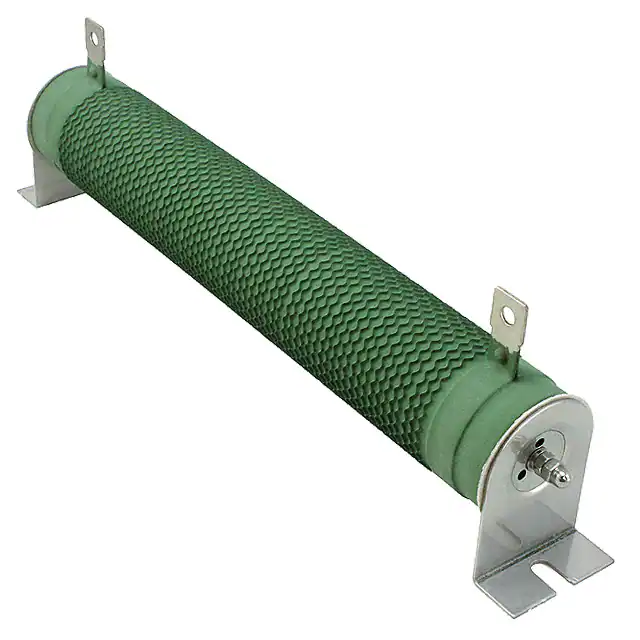

TE750B1R0JRES CHAS MNT 1 OHM 5% 750W |
246 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 Ohms | ±5% | 750W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.969" Dia x 12.441" L (50.00mm x 316.00mm) | - | Solder Lugs | - | - | - |
|
|
LPS0300H10R0JBRES CHAS MNT 10 OHM 5% 300W |
150 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 10 Ohms | ±5% | 300W | Thick Film | ±300ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|

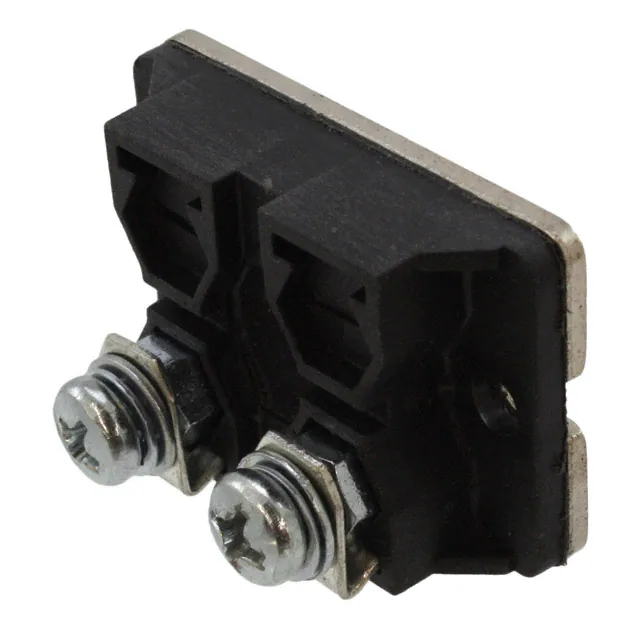

BDS2A10033RKRES CHAS MNT 33 OHM 10% 100W |
216 |
|
Datasheet |
BDS, CGS | SOT-227-2 | Tray | Active | 33 Ohms | ±10% | 100W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | RF, High Frequency | Epoxy Coated | Flanges | 1.488" L x 1.000" W (37.80mm x 25.40mm) | 0.827" (21.00mm) | M4 Threaded | - | - | - |
|

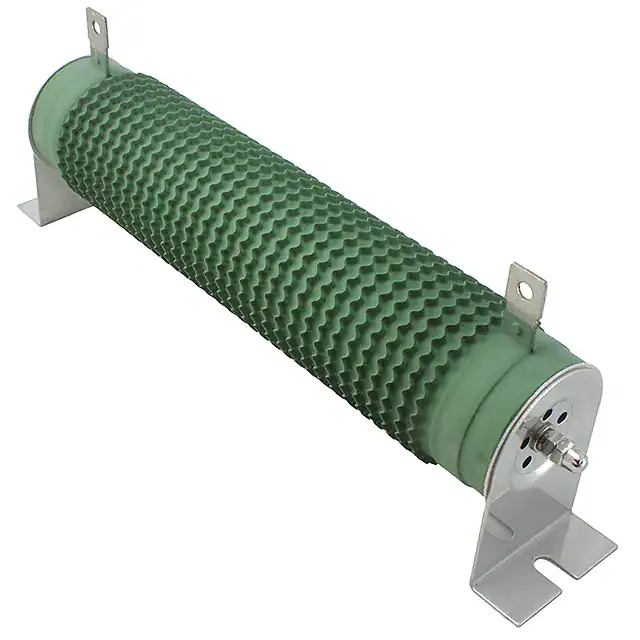

TE1000B1K0JRES CHAS MNT 1K OHM 5% 1000W |
265 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 kOhms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1000B47RJRES CHAS MNT 47 OHM 5% 1000W |
135 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 47 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1000B33RJRES CHAS MNT 33 OHM 5% 1000W |
49 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 33 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
