Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE1000B1R0JRES CHAS MNT 1 OHM 5% 1000W |
351 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
|
TE1500B12RJRES CHAS MNT 12 OHM 5% 1500W |
60 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 12 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|

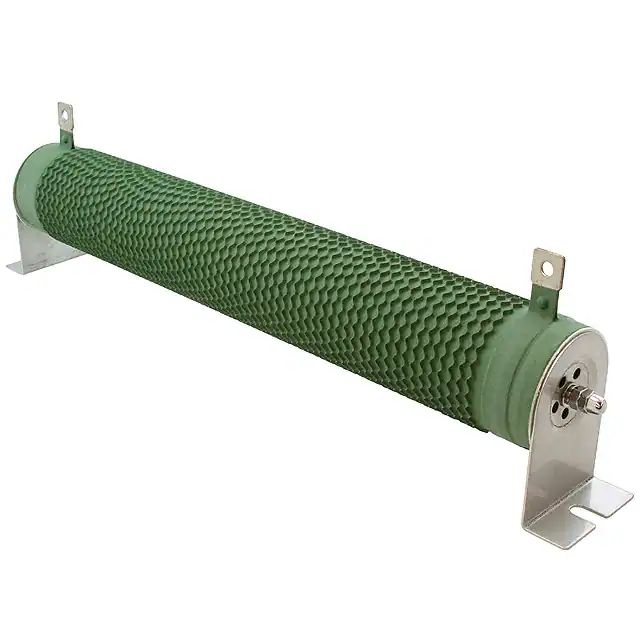

TE1500B1R0JRES CHAS MNT 1 OHM 5% 1500W |
420 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1500B10RJRES CHAS MNT 10 OHM 5% 1500W |
90 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 10 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1500B22RJRES CHAS MNT 22 OHM 5% 1500W |
40 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 22 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
LPS0600H1R00JBRES CHAS MNT 1 OHM 5% 600W |
182 |
|
Datasheet |
LPS 600 | Box | Bulk | Active | 1 Ohms | ±5% | 600W | Thick Film | ±500ppm/°C | -55°C ~ 155°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS0600H4700JBRES CHAS MNT 470 OHM 5% 600W |
162 |
|
Datasheet |
LPS 600 | Box | Bulk | Active | 470 Ohms | ±5% | 600W | Thick Film | ±150ppm/°C | -55°C ~ 155°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS0600H1000JBRES CHAS MNT 100 OHM 5% 600W |
115 |
|
Datasheet |
LPS 600 | Box | Bulk | Active | 100 Ohms | ±5% | 600W | Thick Film | ±150ppm/°C | -55°C ~ 155°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|

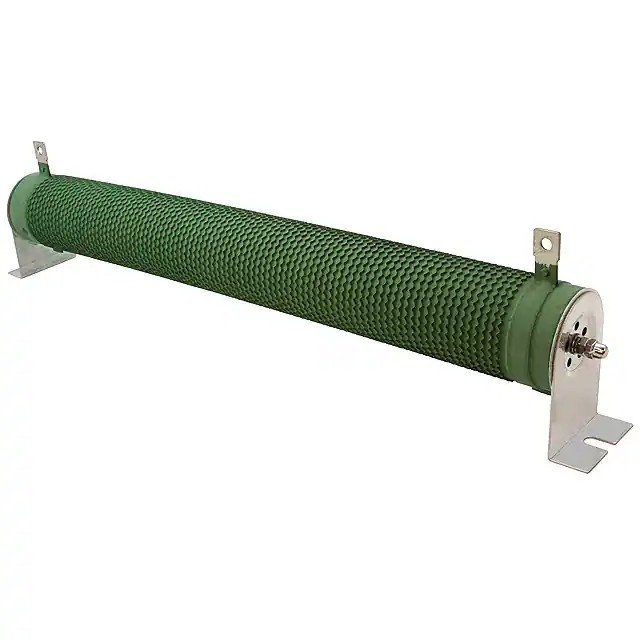

TE2000B100RJRES CHAS MNT 100 OHM 5% 2000W |
322 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 100 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2000B10RJRES CHAS MNT 10 OHM 5% 2000W |
103 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 10 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
TE2000B220RJRES CHAS MNT 220 OHM 5% 2000W |
38 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 220 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
|
LPS0800H47R0JBRES CHAS MNT 47 OHM 5% 800W |
48 |
|
Datasheet |
LPS 800 | Box | Bulk | Active | 47 Ohms | ±5% | 800W | Thick Film | ±150ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|

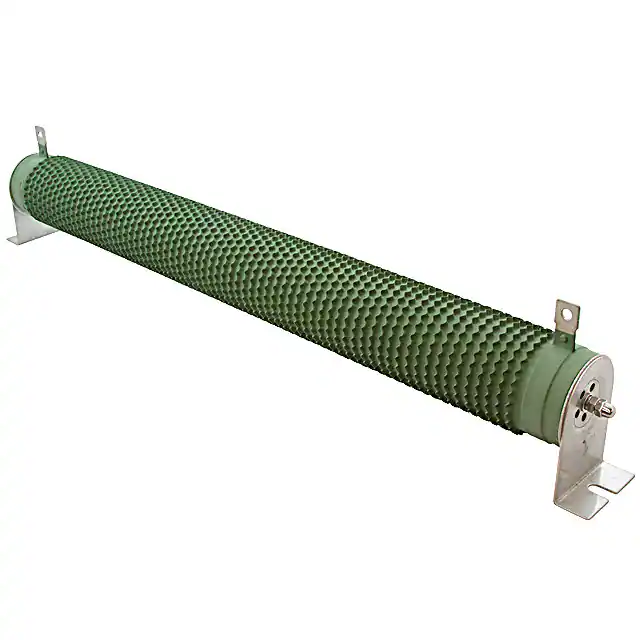

TE2500B1R0JRES CHAS MNT 1 OHM 5% 2500W |
260 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B8R2JRES CHAS MNT 8.2 OHM 5% 2500W |
140 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 8.2 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B10RJRES CHAS MNT 10 OHM 5% 2500W |
136 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 10 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B33RJRES CHAS MNT 33 OHM 5% 2500W |
89 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 33 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B6R8JRES CHAS MNT 6.8 OHM 5% 2500W |
41 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 6.8 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B150RJRES CHAS MNT 150 OHM 5% 2500W |
30 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 150 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
FVE030020E8R00KERES CHAS MNT 8 OHM 10% 300W |
146 |
|
Datasheet |
FVE | Radial, Tubular | Bulk | Active | 8 Ohms | ±10% | 300W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 8.500" L (28.58mm x 215.90mm) | - | Solder Lugs | - | - | - |
|
|
LPS1100H1000JBRES CHAS MNT 100 OHM 5% 1100W |
94 |
|
Datasheet |
LPS 1100 | Box | Bulk | Active | 100 Ohms | ±5% | 1100W | Thick Film | ±150ppm/°C | -55°C ~ 200°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
