Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

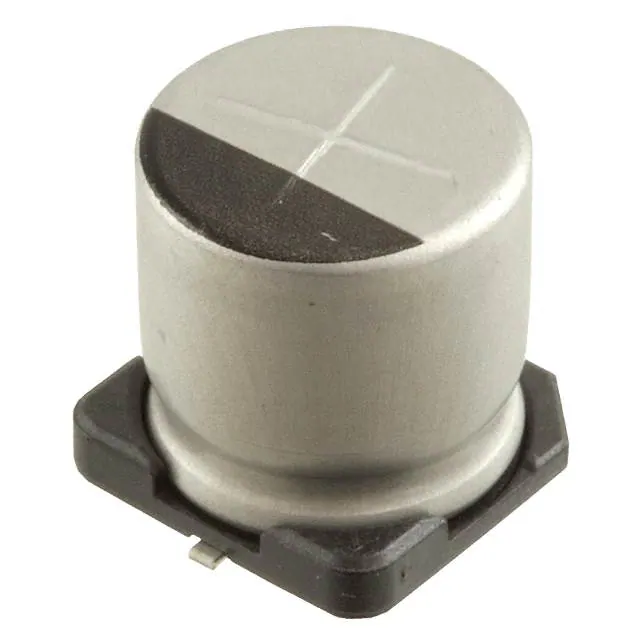

UCD1V151MCL6GSCAP ALUM 150UF 20% 35V SMD |
1,466 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 150 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 180 mOhms | - | 0.394" Dia (10.00mm) | 0.323" (8.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPW1H391MHD1TOCAP ALUM 390UF 20% 50V RADIAL TH |
1,431 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 390 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.48 A @ 100 kHz | 63 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCY2E270MPDCAP ALUM 27UF 20% 250V RADIAL TH |
1,335 |
|
Datasheet |
UCY | Bulk | Active | 27 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 255 mA @ 120 Hz | 510 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPJ1J151MHD6CAP ALUM 150UF 20% 63V RADIAL TH |
1,082 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 150 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 845 mA @ 10 kHz | 140 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UPM0J222MHD6TNCAP ALUM 2200UF 20% 6.3V RADIAL |
220 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.2 A @ 120 Hz | 1.34 A @ 10 kHz | 49 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
6.3ZLH3900MEFC12.5X20CAP ALUM 3900UF 20% 6.3V RADIAL |
114 |
|
Datasheet |
ZLH | Bulk | Active | 3900 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.736 A @ 120 Hz | 2.48 A @ 100 kHz | 17 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EKZH100ELL152MJ16SCAP ALUM 1500UF 20% 10V RADIAL |
2,000 |
|
Datasheet |
KZH | Bulk | Active | 1500 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.65 A @ 100 kHz | 32 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EEU-TP1V271LBCAP ALUM 270UF 20% 35V RADIAL TH |
1,288 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 270 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 689 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-TG1A221PCAP ALUM 220UF 20% 10V SMD |
978 |
|
Datasheet |
TG | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | 500mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 128.1 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-TP1E471LBCAP ALUM 470UF 20% 25V RADIAL TH |
963 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 795 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UPJ2A680MHD6TOCAP ALUM 68UF 20% 100V RADIAL TH |
950 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 68 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 289 mA @ 120 Hz | 466 mA @ 10 kHz | 230 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
ULT2H1R8MNL1GSCAP ALUM 1.8UF 20% 500V SMD |
830 |
|
Datasheet |
ULT | Tape & Reel (TR) | Active | 1.8 µF | ±20% | 500 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPJ2A151MHDCAP ALUM 150UF 20% 100V RADIAL |
379 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 150 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 553 mA @ 120 Hz | 798 mA @ 10 kHz | 110 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EXV337M025A9PAACAP ALUM 330UF 20% 25V SMD |
179 |
|
Datasheet |
EXV | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Surface Mount | |
|
UCA2C680MHD1TOCAP ALUM 68UF 20% 160V RADIAL TH |
173 |
|
Datasheet |
UCA | Cut Tape (CT) | Not For New Designs | 68 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 475 mA @ 120 Hz | 950 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UHV1A272MHDCAP ALUM 2700UF 20% 10V RADIAL |
120 |
|
Datasheet |
UHV | Bulk | Not For New Designs | 2700 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.856 A @ 120 Hz | 2.475 A @ 100 kHz | 16 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL213833471E3CAP ALUM 470UF 20% 6.3V AXIAL TH |
0 |
|
Datasheet |
138 AML | Tape & Box (TB) | Active | 470 µF | ±20% | 6.3 V | 810mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 250 mA @ 100 Hz | 300 mA @ 10 kHz | 640 mOhms | - | 0.256" Dia x 0.709" L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
EKY-6R3ELL182MK15SCAP ALUM 1800UF 20% 6.3V RADIAL |
945 |
|
Datasheet |
KY | Bulk | Active | 1800 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.45 A @ 100 kHz | 49 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UHE1V681MPDCAP ALUM 680UF 20% 35V RADIAL TH |
919 |
|
Datasheet |
UHE | Bulk | Active | 680 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.433 A @ 120 Hz | 1.91 A @ 100 kHz | 31 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UPS1C152MHD1TOCAP ALUM 1500UF 20% 16V RADIAL |
645 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 1500 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.088 A @ 120 Hz | 1.25 A @ 100 kHz | 75 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
