Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECA-2DM470BCAP ALUM 47UF 20% 200V RADIAL TH |
987 |
|
Datasheet |
M-A | Cut Tape (CT) | Active | 47 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 510 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FK1A182CAP ALUM 1800UF 20% 10V RADIAL |
982 |
|
Datasheet |
FK | Bulk | Active | 1800 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.192 A @ 120 Hz | 1.49 A @ 100 kHz | 35 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-FK1C331ALCAP ALUM 330UF 20% 16V SMD |
925 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UUJ1H221MNJ1MSCAP ALUM 220UF 20% 50V SMD |
852 |
|
Datasheet |
UUJ | Tape & Reel (TR) | Active | 220 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 320 mA @ 120 Hz | - | - | - | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
|
EEE-FK1A471ALCAP ALUM 470UF 20% 10V SMD |
850 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UVZ2W100MHD1TOCAP ALUM 10UF 20% 450V RADIAL TH |
792 |
|
Datasheet |
UVZ | Cut Tape (CT) | Active | 10 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 104 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-FC1C471APCAP ALUM 470UF 20% 16V SMD |
498 |
|
Datasheet |
FC | Tape & Reel (TR) | Not For New Designs | 470 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1E331ALCAP ALUM 330UF 20% 25V SMD |
427 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UKT0J222MPD1TDCAP ALUM 2200UF 20% 6.3V RADIAL |
387 |
|
Datasheet |
UKT | Cut Tape (CT) | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | Audio | 710 mA @ 120 Hz | 816.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ECA-2EM330CAP ALUM 33UF 20% 250V RADIAL TH |
276 |
|
Datasheet |
M-A | Bulk | Active | 33 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 425 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UKL0J102KPD1TDCAP ALUM 1000UF 20% 6.3V RADIAL |
5,000 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 747.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
AFK476M16D16T-FCAP ALUM 47UF 20% 16V SMD |
2,740 |
|
Datasheet |
AFK | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 180 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.307" W (6.60mm x 7.80mm) | Surface Mount | |
|
UWG0J102MNL1GSCAP ALUM 1000UF 20% 6.3V SMD |
2,000 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

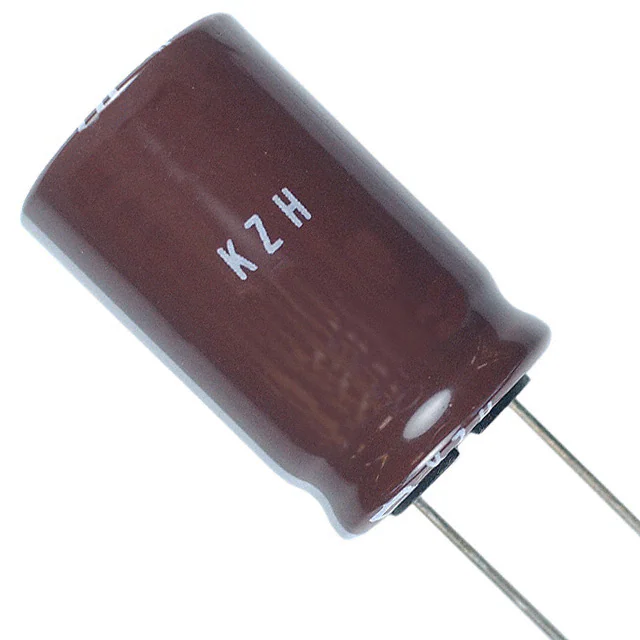

EKZH100ELL102MJC5SCAP ALUM 1000UF 20% 10V RADIAL |
1,582 |
|
Datasheet |
KZH | Bulk | Active | 1000 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 744 mA @ 120 Hz | 1.24 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UVK0J472MHD1TOCAP ALUM 4700UF 20% 6.3V RADIAL |
995 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.7825 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-HD1H101BCAP ALUM 100UF 20% 50V RADIAL TH |
989 |
|
Datasheet |
HD | Cut Tape (CT) | Active | 100 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 270 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPS1A152MPD1TDCAP ALUM 1500UF 20% 10V RADIAL |
815 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 1500 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1 A @ 100 kHz | 110 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EKZH250ETD331MJC5SCAP ALUM 330UF 20% 25V RADIAL TH |
797 |
|
Datasheet |
KZH | Cut Tape (CT) | Active | 330 µF | ±20% | 25 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
EEE-FK1V221ALCAP ALUM 220UF 20% 35V SMD |
675 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FN1A102LCAP ALUM 1000UF 20% 10V SMD |
487 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
