Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEA0810330M080RCAP ALUM 33UF 20% 80V SMD |
484 |
|
Datasheet |
AEA | Tape & Reel (TR) | Active | 33 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 45.5 mA @ 120 Hz | 130 mA @ 100 kHz | 1.88 Ohms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

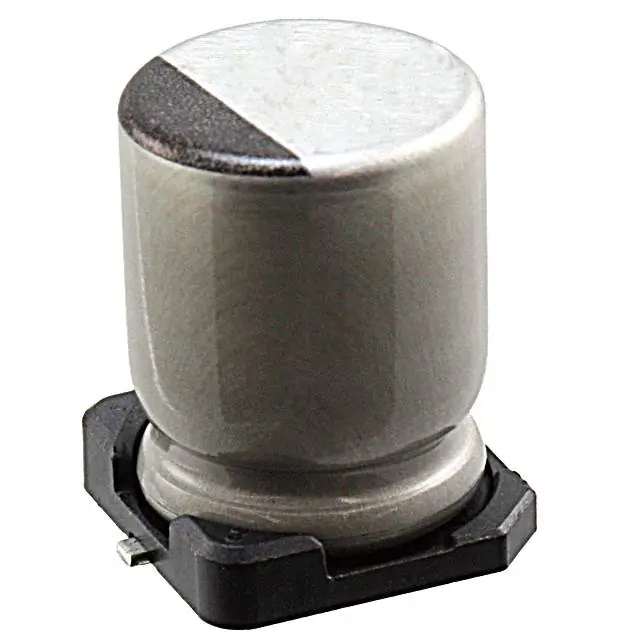

ULV2E8R2MNL1GSCAP ALUM 8.2UF 20% 250V SMD |
480 |
|
Datasheet |
ULV | Tape & Reel (TR) | Active | 8.2 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 35 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPJ1C681MHD6TOCAP ALUM 680UF 20% 16V RADIAL TH |
402 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 680 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 815 mA @ 120 Hz | 985 mA @ 10 kHz | 110 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EEU-FC1A272SCAP ALUM 2700UF 20% 10V RADIAL |
359 |
|
Datasheet |
FC | Bulk | Active | 2700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.7 A @ 120 Hz | 2 A @ 100 kHz | 38 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.591" (15.00mm) | - | Through Hole | |
|
UBT2D100MPD8TDCAP ALUM 10UF 20% 200V RADIAL TH |
1,167 |
|
Datasheet |
UBT | Cut Tape (CT) | Active | 10 µF | ±20% | 200 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 78 mA @ 120 Hz | 140.4 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

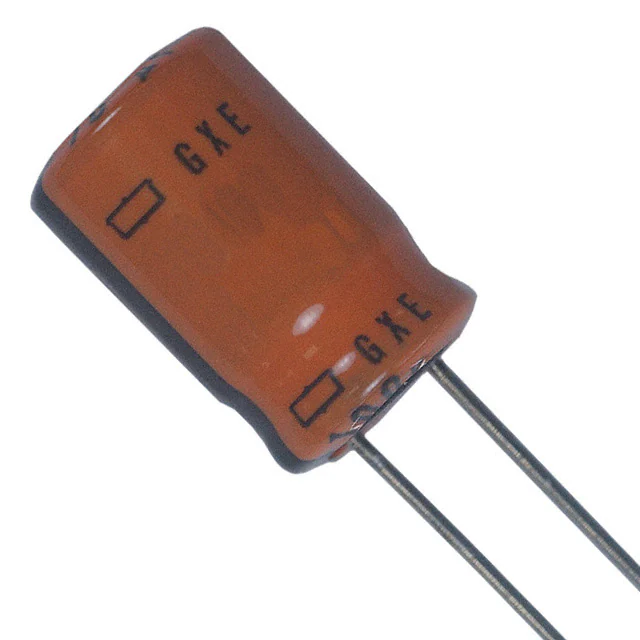

EGXE160ELL101MH12DCAP ALUM 100UF 20% 16V RADIAL TH |
980 |
|
Datasheet |
GXE | Bulk | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 136 mA @ 120 Hz | 340 mA @ 100 kHz | 320 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UCX1V680MCL1GSCAP ALUM 68UF 20% 35V SMD |
450 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 68 µF | ±20% | 35 V | 200mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UKL2A151MHD1TOCAP ALUM 150UF 20% 100V RADIAL |
449 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 150 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 470 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UKL1J221MHD1TOCAP ALUM 220UF 20% 63V RADIAL TH |
337 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UKL1H331MHD1TOCAP ALUM 330UF 20% 50V RADIAL TH |
325 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 900 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPJ1E122MHD6CAP ALUM 1200UF 20% 25V RADIAL |
316 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.6 A @ 10 kHz | 61 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
Series.jpg)
|
EEE-FN1A122ULCAP ALUM 1200UF 20% 10V SMD |
4,990 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 1200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-TG1K220UPCAP ALUM 22UF 20% 80V SMD |
1,485 |
|
Datasheet |
TG | Tape & Reel (TR) | Active | 22 µF | ±20% | 80 V | 1.3Ohm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 45.5 mA @ 120 Hz | 70 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ULD2W5R6MPDCAP ALUM 5.6UF 20% 450V RADIAL |
1,223 |
|
Datasheet |
ULD | Bulk | Not For New Designs | 5.6 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 58 mA @ 120 Hz | 116 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
EEU-HD1E471BCAP ALUM 470UF 20% 25V RADIAL TH |
910 |
|
Datasheet |
HD | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 570 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
EEE-FN1E821ULCAP ALUM 820UF 20% 25V SMD |
768 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 820 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEU-FM1C152BCAP ALUM 1500UF 20% 16V RADIAL |
653 |
|
Datasheet |
FM-A | Cut Tape (CT) | Active | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UUL1A471MNL1GSCAP ALUM 470UF 20% 10V SMD |
499 |
|
Datasheet |
UUL | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 254 mA @ 120 Hz | 381 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPS2A221MHD1TNCAP ALUM 220UF 20% 100V RADIAL |
205 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 220 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 445 mA @ 120 Hz | - | 100 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EMHL100ARA471MHA0GCAP ALUM 470UF 20% 10V SMD |
1,498 |
|
Datasheet |
AIchip™- MHL | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | 300mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 275.28 mA @ 120 Hz | 296 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
