Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM1V391MHD6TOCAP ALUM 390UF 20% 35V RADIAL TH |
1,015 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 390 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 1.06 A @ 10 kHz | 60 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EEE-FK1C681ALCAP ALUM 680UF 20% 16V SMD |
975 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-FTA331XAVCAP ALUM 330UF 20% 10V SMD |
867 |
|
Datasheet |
FT, Anti-Vibration | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FTJ471XAVCAP ALUM 470UF 20% 6.3V SMD |
816 |
|
Datasheet |
FT, Anti-Vibration | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
25YXS1800MEFC12.5X25CAP ALUM 1800UF 20% 25V RADIAL |
748 |
|
Datasheet |
YXS | Bulk | Active | 1800 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.65 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPM1A152MHD6TNCAP ALUM 1500UF 20% 10V RADIAL |
496 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 1500 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.19 A @ 120 Hz | 1.33 A @ 10 kHz | 50 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
UCYW6150MPD1TDCAP ALUM 15UF 20% 420V RADIAL TH |
488 |
|
Datasheet |
UCY | Cut Tape (CT) | Active | 15 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 185 mA @ 120 Hz | 370 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UKL1C102MHD1TOCAP ALUM 1000UF 20% 16V RADIAL |
448 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.0465 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EMZE500ARA101MJA0GCAP ALUM 100UF 20% 50V SMD |
427 |
|
Datasheet |
Alchip™- MZE | Tape & Reel (TR) | Active | 100 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 268 mA @ 120 Hz | 670 mA @ 100 kHz | 350 mOhms | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FN1H271ULCAP ALUM 270UF 20% 50V SMD |
292 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 270 µF | ±20% | 50 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 435.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
860021378013CAP ALUM 22UF 20% 400V RADIAL TH |
136 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 170 mA @ 120 Hz | 260.1 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEE-HB1V101APCAP ALUM 100UF 20% 35V SMD |
3,989 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 160 mA @ 120 Hz | 272 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
63ZLH270MEFC12.5X16CAP ALUM 270UF 20% 63V RADIAL TH |
2,212 |
|
Datasheet |
ZLH | Bulk | Active | 270 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | 82 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EGXF500ELL271MK15SCAP ALUM 270UF 20% 50V RADIAL TH |
1,000 |
|
Datasheet |
GXF | Bulk | Active | 270 µF | ±20% | 50 V | 140mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
35YXS1000MEFC12.5X20CAP ALUM 1000UF 20% 35V RADIAL |
1,000 |
|
Datasheet |
YXS | Bulk | Active | 1000 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.296 A @ 120 Hz | 2.16 A @ 100 kHz | 28 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEE-FK1C680AVCAP ALUM 68UF 20% 16V SMD |
950 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 68 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-HB1C331APCAP ALUM 330UF 20% 16V SMD |
827 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 230 mA @ 120 Hz | 391 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1C470AVCAP ALUM 47UF 20% 16V SMD |
779 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FK1E470AVCAP ALUM 47UF 20% 25V SMD |
775 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

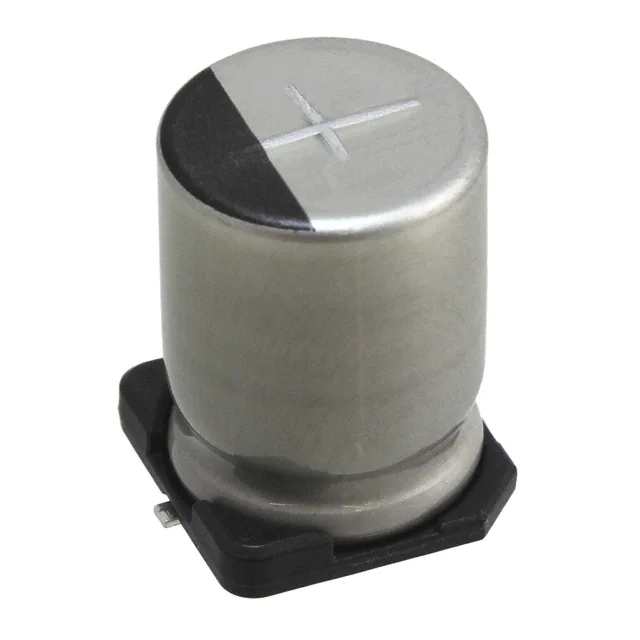

ULT2D270MNL1GSCAP ALUM 27UF 20% 200V SMD |
720 |
|
Datasheet |
ULT | Tape & Reel (TR) | Active | 27 µF | ±20% | 200 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 65 mA @ 120 Hz | 97.5 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
