Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPA0J272MPD1TDCAP ALUM 2700UF 20% 6.3V RADIAL |
127 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 2700 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.428 A @ 120 Hz | 1.68 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKXJ351ELL270MJ25SCAP ALUM 27UF 20% 350V RADIAL TH |
950 |
|
Datasheet |
KXJ | Bulk | Active | 27 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 240 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UPM1C681MPD1TDCAP ALUM 680UF 20% 16V RADIAL TH |
906 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 680 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 880 mA @ 120 Hz | 1.06 A @ 10 kHz | 65 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UHE1E122MHD1TNCAP ALUM 1200UF 20% 25V RADIAL |
672 |
|
Datasheet |
UHE | Cut Tape (CT) | Active | 1200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.768 A @ 120 Hz | 2.21 A @ 100 kHz | 43 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
10YXS5600MEFC12.5X35CAP ALUM 5600UF 20% 10V RADIAL |
574 |
|
Datasheet |
YXS | Bulk | Active | 5600 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.345 A @ 120 Hz | 3.35 A @ 100 kHz | 17 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEU-FR0J272LBCAP ALUM 2700UF 20% 6.3V RADIAL |
490 |
|
Datasheet |
FR-A | Cut Tape (CT) | Active | 2700 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
865250157009CAP ALUM 470UF 20% 6.3V SMD |
469 |
|
Datasheet |
WCAP-ASNP | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UHE0J332MHD1TOCAP ALUM 3300UF 20% 6.3V RADIAL |
1,236 |
|
Datasheet |
UHE | Cut Tape (CT) | Active | 3300 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 1.9 A @ 100 kHz | 35 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|

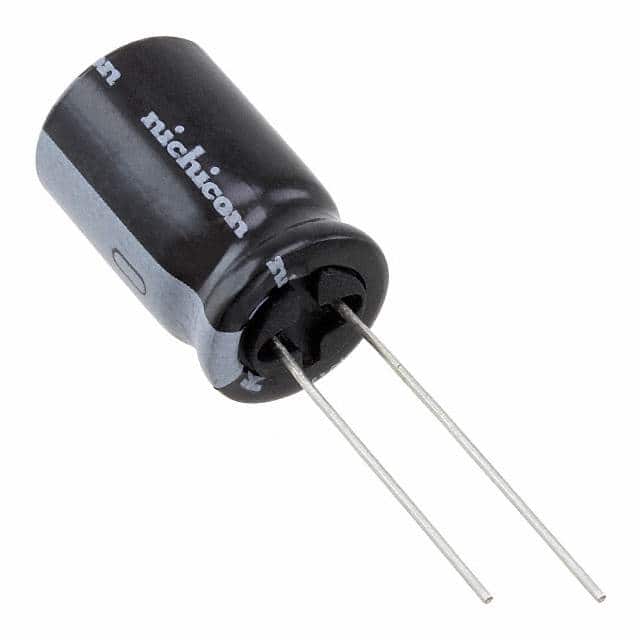

UKL1A102MHD1TOCAP ALUM 1000UF 20% 10V RADIAL |
993 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 931.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|

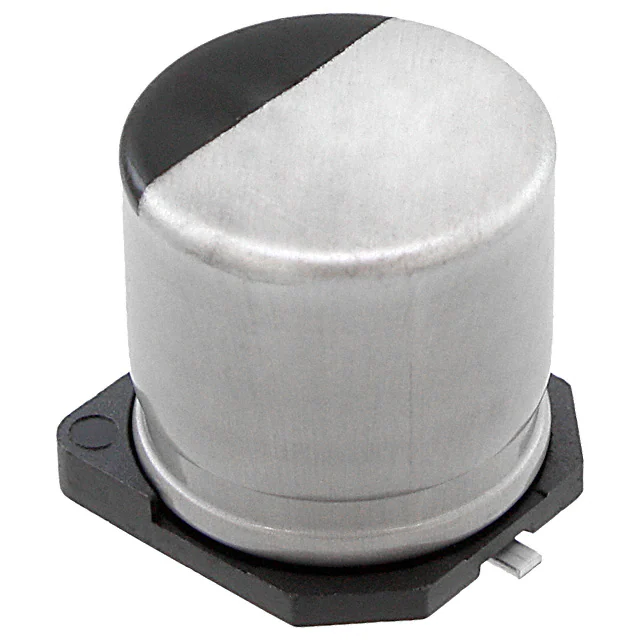

EEE-TC1C681UPCAP ALUM 680UF 20% 16V SMD |
984 |
|
Datasheet |
TCU | Tape & Reel (TR) | Active | 680 µF | ±20% | 16 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 487.5 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ESMG630ELL221MJ16SCAP ALUM 220UF 20% 63V RADIAL TH |
669 |
|
Datasheet |
SMG | Bulk | Active | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 735 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EEE-FP1A471APCAP ALUM 470UF 20% 10V SMD |
2,336 |
|
Datasheet |
FP | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EMHL160ARA471MJA0GCAP ALUM 470UF 20% 16V SMD |
1,822 |
|
Datasheet |
AIchip™- MHL | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | 200mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 409.2 mA @ 120 Hz | 440 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEU-FK1A122CAP ALUM 1200UF 20% 10V RADIAL |
1,782 |
|
Datasheet |
FK | Bulk | Active | 1200 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 992 mA @ 120 Hz | 1.24 A @ 100 kHz | 49 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UVR0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL |
1,390 |
|
Datasheet |
UVR | Bulk | Active | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 2.208 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-FC2A680LBCAP ALUM 68UF 20% 100V RADIAL TH |
680 |
|
Datasheet |
FC | Cut Tape (CT) | Active | 68 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 295.8 mA @ 120 Hz | 599 mA @ 100 kHz | 210 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCA2V220MHD1TOCAP ALUM 22UF 20% 350V RADIAL TH |
527 |
|
Datasheet |
UCA | Cut Tape (CT) | Not For New Designs | 22 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 350 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UVY2W100MPD1TDCAP ALUM 10UF 20% 450V RADIAL TH |
463 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 10 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 64.4 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPM0J182MPDCAP ALUM 1800UF 20% 6.3V RADIAL |
155 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 1800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.23 A @ 120 Hz | 1.37 A @ 10 kHz | 50 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.319" (33.50mm) | - | Through Hole | |
Series.jpg)
|
EEE-FK1V271SLCAP ALUM 270UF 20% 35V SMD |
2,092 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 270 µF | ±20% | 35 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
