Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Series.jpg)
|
EEE-FK1E151GLCAP ALUM 150UF 20% 25V SMD |
2,000 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 450 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FK1V101GLCAP ALUM 100UF 20% 35V SMD |
1,910 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 450 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FK0J102GLCAP ALUM 1000UF 20% 6.3V SMD |
1,500 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 450 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FP1E221ALCAP ALUM 220UF 20% 25V SMD |
1,404 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPS2D470MHD1TOCAP ALUM 47UF 20% 200V RADIAL TH |
1,371 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 47 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 352 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEE-FP1E331ALCAP ALUM 330UF 20% 25V SMD |
1,290 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

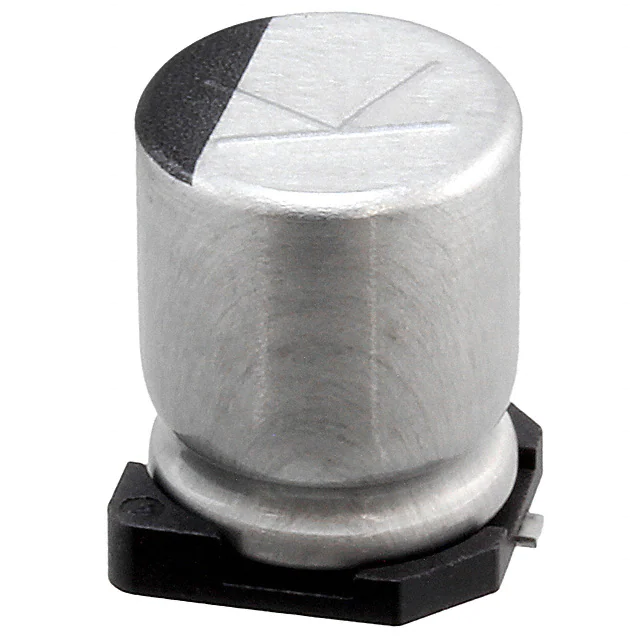

10TKV680M8X10.5CAP ALUM 680UF 20% 10V SMD |
1,253 |
|
Datasheet |
TKV | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UCJ1A471MCL1GSCAP ALUM 470UF 20% 10V SMD |
1,211 |
|
Datasheet |
UCJ | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | 1.5Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 200 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1E331GLCAP ALUM 330UF 20% 25V SMD |
1,090 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 450 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FK1C561SLCAP ALUM 560UF 20% 16V SMD |
895 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 560 µF | ±20% | 16 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FP1E151ALCAP ALUM 150UF 20% 25V SMD |
887 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPW0J222MPD6TDCAP ALUM 2200UF 20% 6.3V RADIAL |
496 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.224 A @ 120 Hz | 1.44 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPJ1J331MHD1TOCAP ALUM 330UF 20% 63V RADIAL TH |
482 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.42 A @ 10 kHz | 72 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UFW0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL |
390 |
|
Datasheet |
UFW | Bulk | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.6 A @ 120 Hz | 1.84 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.984" (25.00mm) | - | Through Hole | |
|

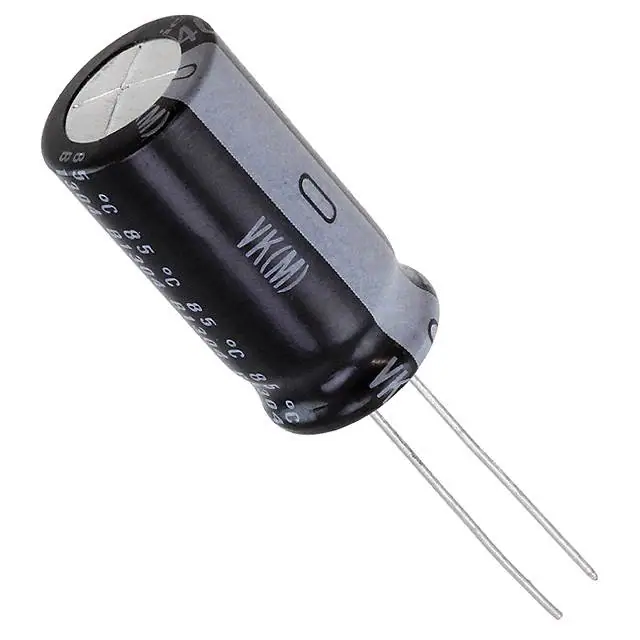

UVK2D680MHD1TOCAP ALUM 68UF 20% 200V RADIAL TH |
302 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 68 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 560 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPM1K101MPD1TDCAP ALUM 100UF 20% 80V RADIAL TH |
139 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 100 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 525 mA @ 120 Hz | 795 mA @ 10 kHz | 210 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPJ1V821MHD6TNCAP ALUM 820UF 20% 35V RADIAL TH |
116 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 820 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 1.62 A @ 10 kHz | 60 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EEE-FN1A122UPCAP ALUM 1.2UF 20% 10V SMD |
2,970 |
|
Datasheet |
FN | Tape & Reel (TR) | Active | 1.2 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
6.3TKV1000M8X10.5CAP ALUM 1000UF 20% 6.3V SMD |
2,387 |
|
Datasheet |
TKV | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
25TKV330M8X10.5CAP ALUM 330UF 20% 25V SMD |
1,950 |
|
Datasheet |
TKV | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
