Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWG1A102MNL1GSCAP ALUM 1000UF 20% 10V SMD |
755 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPM1V821MHDCAP ALUM 820UF 20% 35V RADIAL TH |
700 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 820 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.49 A @ 120 Hz | 1.76 A @ 10 kHz | 32 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EDT687M010S9PAACAP ALUM 680UF 20% 10V SMD |
490 |
|
Datasheet |
EDT | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 257.143 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-FNE151XUVCAP ALUM 150UF 20% 25V SMD |
454 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPM0J152MHD6TOCAP ALUM 1500UF 20% 6.3V RADIAL |
298 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 1500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 915 mA @ 120 Hz | 1.02 A @ 10 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | - | Through Hole | |
|

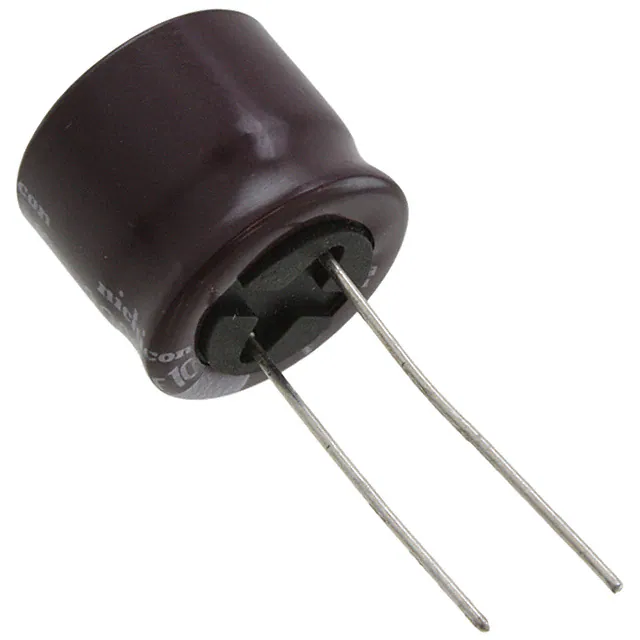

UPJ2A151MHD6CAP ALUM 150UF 20% 100V RADIAL |
105 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 150 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 635 mA @ 120 Hz | 917 mA @ 10 kHz | 120 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UCZ1H330MCL1GSCAP ALUM 33UF 20% 50V SMD |
4,000 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | 250mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL214237478E3CAP ALUM 4.7UF 20% 450V RADIAL |
2,091 |
|
Datasheet |
142 RHS | Cut Tape (CT) | Active | 4.7 µF | ±20% | 450 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 112.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UPM1H221MPDCAP ALUM 220UF 20% 50V RADIAL TH |
1,290 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 220 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 840 mA @ 120 Hz | 1.15 A @ 10 kHz | 75 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPS2E330MHD1TOCAP ALUM 33UF 20% 250V RADIAL TH |
931 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 33 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 304 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UWG1E331MNL1GSCAP ALUM 330UF 20% 25V SMD |
860 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-FK1C331APCAP ALUM 330UF 20% 16V SMD |
838 |
|
Datasheet |
FK | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-FK1H390SVCAP ALUM 39UF 20% 50V SMD |
708 |
|
Datasheet |
FKS, Anti-Vibration | Tape & Reel (TR) | Not For New Designs | 39 µF | ±20% | 50 V | 880mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 107.25 mA @ 120 Hz | 165 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ELXZ160ETD102MJ20SCAP ALUM 1000UF 20% 16V RADIAL |
588 |
|
Datasheet |
LXZ | Tape & Reel (TR) | Active | 1000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 732 mA @ 120 Hz | 1.22 A @ 100 kHz | 52 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
ELXZ250ELL821MJ25SCAP ALUM 820UF 20% 25V RADIAL TH |
409 |
|
Datasheet |
LXZ | Bulk | Active | 820 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 864 mA @ 120 Hz | 1.44 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UPM1J151MHD6TOCAP ALUM 150UF 20% 63V RADIAL TH |
189 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 150 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 590 mA @ 120 Hz | 845 mA @ 10 kHz | 95 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | - | Through Hole | |
|
UPJ1C122MHD1TOCAP ALUM 1200UF 20% 16V RADIAL |
170 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 1200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.43 A @ 10 kHz | 60 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
477AXZ016MCAP ALUM 470UF 20% 16V SMD |
7,990 |
|
Datasheet |
AXZ | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | 706mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 170 mOhms | - | 0.315" Dia (8.00mm) | 0.417" (10.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
UPM1E561MHD6CAP ALUM 560UF 20% 25V RADIAL TH |
1,348 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 560 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 860 mA @ 120 Hz | 1.06 A @ 10 kHz | 60 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | - | Through Hole | |
|
UPJ1E122MHDCAP ALUM 1200UF 20% 25V RADIAL |
961 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.76 A @ 10 kHz | 43 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
