Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FS1A122CAP ALUM 1200UF 20% 10V RADIAL |
1,914 |
|
Datasheet |
FS-A | Bulk | Active | 1200 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.032 A @ 120 Hz | 1.29 A @ 100 kHz | 43 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ATB477M016F102CAP ALUM 470UF 20% 16V SMD |
14,000 |
|
Datasheet |
ATB | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | 564.4mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.346" L x 0.335" W (8.80mm x 8.50mm) | Surface Mount | |
|
UPM2A270MPD6TDCAP ALUM 27UF 20% 100V RADIAL TH |
1,949 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 27 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 205 mA @ 120 Hz | 380 mA @ 10 kHz | 500 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
EEE-HA0J331PCAP ALUM 330UF 20% 6.3V SMD |
1,929 |
|
Datasheet |
HA | Tape & Reel (TR) | Not For New Designs | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 230 mA @ 120 Hz | 391 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
ATB227M035F102CAP ALUM 220UF 20% 35V SMD |
31,950 |
|
Datasheet |
ATB | Tape & Reel (TR) | Active | 220 µF | ±20% | 35 V | 904mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.346" L x 0.335" W (8.80mm x 8.50mm) | Surface Mount | |
|

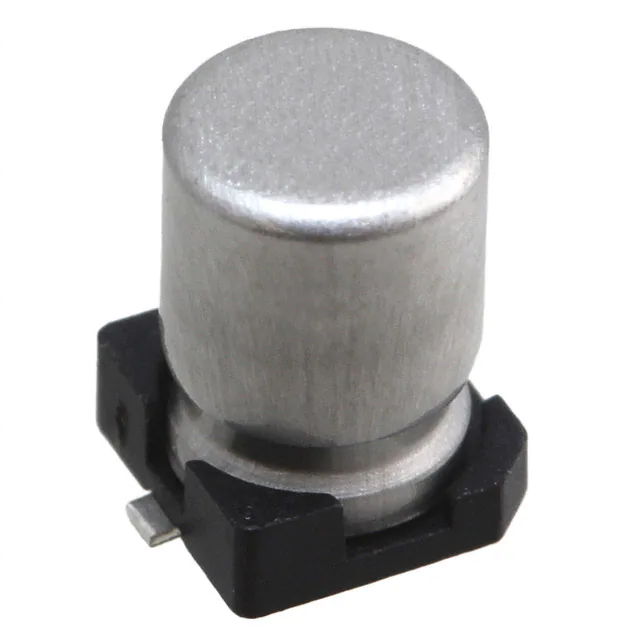

UUP1HR22MCL1GSCAP ALUM 0.22UF 20% 50V SMD |
3,503 |
|
Datasheet |
UUP | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | AEC-Q200 | General Purpose | 2 mA @ 120 Hz | 3 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEU-FK1A122LCAP ALUM 1200UF 20% 10V RADIAL |
1,366 |
|
Datasheet |
FK | Bulk | Active | 1200 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 976 mA @ 120 Hz | 1.22 A @ 100 kHz | 44 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EDT227M010S9MAACAP ALUM 220UF 20% 10V SMD |
6,996 |
|
Datasheet |
EDT | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 185.714 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-FKV680XALCAP ALUM 68UF 20% 35V SMD |
4,277 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FKJ331XALCAP ALUM 330UF 20% 6.3V SMD |
2,561 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UHD1H271MPDCAP ALUM 270UF 20% 50V RADIAL TH |
1,671 |
|
Datasheet |
UHD | Bulk | Not For New Designs | 270 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.106 A @ 120 Hz | 1.58 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ELXZ100ELL102MJ16SCAP ALUM 1000UF 20% 10V RADIAL |
3,898 |
|
Datasheet |
LXZ | Bulk | Active | 1000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 630 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EEE-FC1E470APCAP ALUM 47UF 20% 25V SMD |
2,338 |
|
Datasheet |
FC | Tape & Reel (TR) | Not For New Designs | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FS1K680CAP ALUM 68UF 20% 80V RADIAL TH |
1,856 |
|
Datasheet |
FS-A | Bulk | Active | 68 µF | ±20% | 80 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|

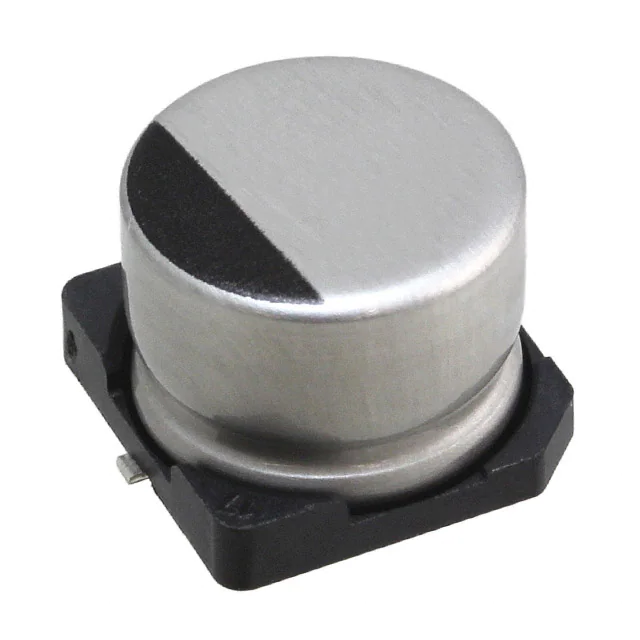

UWH1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
4,985 |
|
Datasheet |
UWH | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 44 mA @ 120 Hz | 69 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
UHD1C681MPDCAP ALUM 680UF 20% 16V RADIAL TH |
1,095 |
|
Datasheet |
UHD | Bulk | Not For New Designs | 680 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 937.5 mA @ 120 Hz | 1.25 A @ 100 kHz | 41 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-FS1K820BCAP ALUM 82UF 20% 80V RADIAL TH |
6,654 |
|
Datasheet |
FS-A | Cut Tape (CT) | Active | 82 µF | ±20% | 80 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UUQ1V220MCL1GBCAP ALUM 22UF 20% 35V SMD |
1,930 |
|
Datasheet |
UUQ | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Audio | 42 mA @ 120 Hz | 63 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UCD0J681MNL1GSCAP ALUM 680UF 20% 6.3V SMD |
1,878 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
227SMH035MCAP ALUM 220UF 20% 35V SMD |
13,989 |
|
Datasheet |
SMH | Bulk | Active | 220 µF | ±20% | 35 V | 1.06Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.417" (10.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
