Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATB476M050F065CAP ALUM 47UF 20% 50V SMD |
19,950 |
|
Datasheet |
ATB | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | 4.233Ohm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 245 mA @ 120 Hz | 350 mA @ 100 kHz | 340 mOhms | - | 0.315" Dia (8.00mm) | 0.268" (6.80mm) | 0.354" L x 0.335" W (9.00mm x 8.50mm) | Surface Mount | |
|
UVK1A102MPD1TDCAP ALUM 1000UF 20% 10V RADIAL |
1,569 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 747.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
B41866C5337M000CAP ALUM 330UF 20% 25V RADIAL TH |
11,255 |
|
Datasheet |
B41866 | Bulk | Active | 330 µF | ±20% | 25 V | 373mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 450 mA @ 100 kHz | 336 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
UWG1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
2,333 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UVK2G3R3MPDCAP ALUM 3.3UF 20% 400V RADIAL |
1,298 |
|
Datasheet |
UVK | Bulk | Active | 3.3 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 48 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPJ2A560MPDCAP ALUM 56UF 20% 100V RADIAL TH |
1,218 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 56 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 274 mA @ 120 Hz | 456 mA @ 10 kHz | 240 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEE-FC1A151PCAP ALUM 150UF 20% 10V SMD |
12,896 |
|
Datasheet |
FC | Tape & Reel (TR) | Not For New Designs | 150 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FK1H330XLCAP ALUM 33UF 20% 50V SMD |
6,246 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 146.25 mA @ 120 Hz | 195 mA @ 100 kHz | 680 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

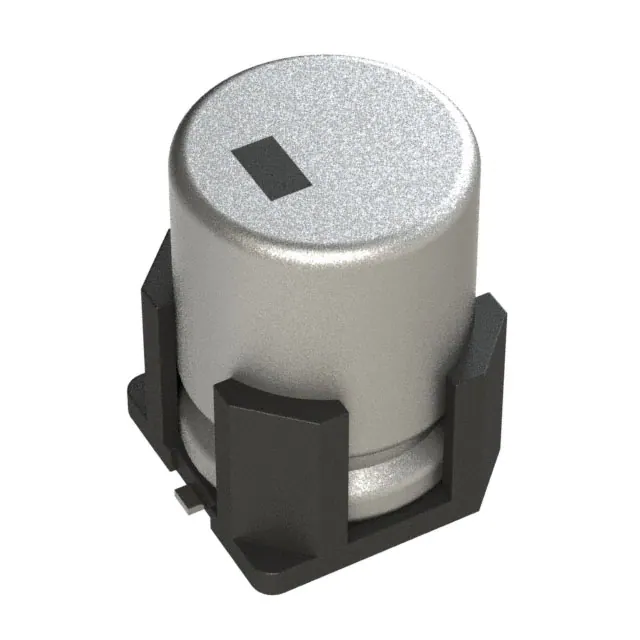

EEE-FP1E470AVCAP ALUM 47UF 20% 25V SMD |
4,377 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPS1H151MPDCAP ALUM 150UF 20% 50V RADIAL TH |
2,000 |
|
Datasheet |
UPS | Bulk | Not For New Designs | 150 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 245 mA @ 120 Hz | 490 mA @ 100 kHz | 260 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UPW0J122MPD6TDCAP ALUM 1200UF 20% 6.3V RADIAL |
1,672 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 1200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 892.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UPM1K470MPDCAP ALUM 47UF 20% 80V RADIAL TH |
1,356 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 47 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 215 mA @ 120 Hz | 360 mA @ 10 kHz | 390 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
10RX30470M10X12.5CAP ALUM 470UF 20% 10V RADIAL TH |
1,411 |
|
Datasheet |
RX30 | Bulk | Active | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 130°C | -40°C ~ 130°C | Polar | AEC-Q200 | Automotive | 465 mA @ 120 Hz | - | 150 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
-Series_-338_-4x5.3_-B.jpg)
|

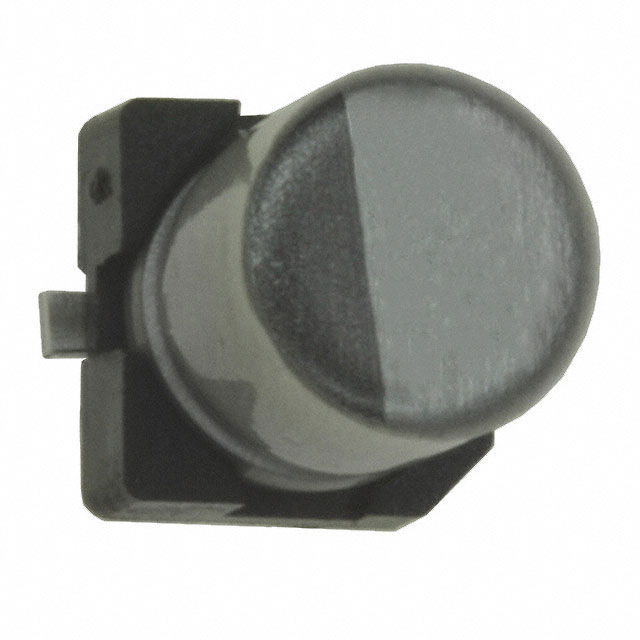

AVES106M16B12T-FCAP ALUM 10UF 20% 16V SMD |
21,736 |
|
Datasheet |
AVES | Tape & Reel (TR) | Active | 10 µF | ±20% | 16 V | 36.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 20 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.209" (5.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
B41858C7337M000CAP ALUM 330UF 20% 35V RADIAL TH |
15,031 |
|
Datasheet |
B41858 | Bulk | Active | 330 µF | ±20% | 35 V | 118mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 846 mA @ 100 kHz | 105 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EEE-FNE151XUPCAP ALUM 150UF 20% 25V SMD |
8,687 |
|
Datasheet |
FN | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FK1K100XLCAP ALUM 10UF 20% 80V SMD |
4,300 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 10 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 2.4 Ohms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

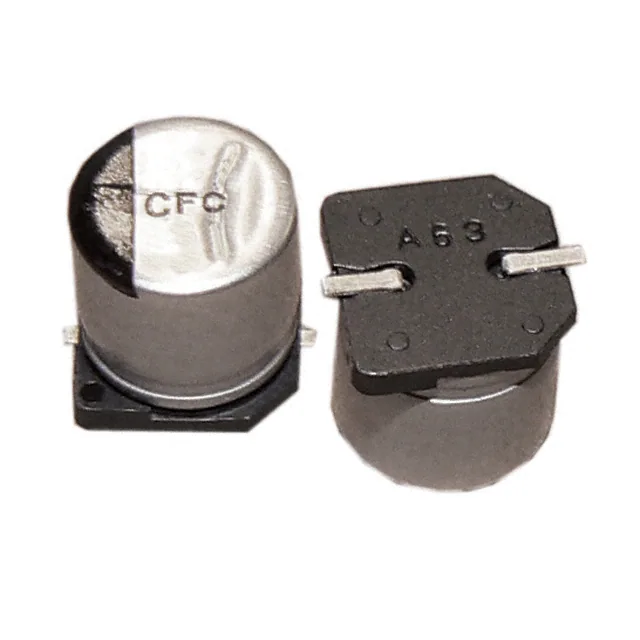

AFC106M16B12T-FCAP ALUM 10UF 20% 16V SMD |
4,000 |
|
Datasheet |
AFC | Tape & Reel (TR) | Not For New Designs | 10 µF | ±20% | 16 V | 26.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FT1A221ALCAP ALUM 220UF 20% 10V SMD |
3,538 |
|
Datasheet |
FT, Halogen Free | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ELXZ100ELL681MJC5SCAP ALUM 680UF 20% 10V RADIAL TH |
1,933 |
|
Datasheet |
LXZ | Bulk | Active | 680 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 456 mA @ 120 Hz | 760 mA @ 100 kHz | 90 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
