Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
107SMH050MCAP ALUM 100UF 20% 50V SMD |
13,950 |
|
Datasheet |
SMH | Bulk | Active | 100 µF | ±20% | 50 V | 1.989Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.417" (10.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

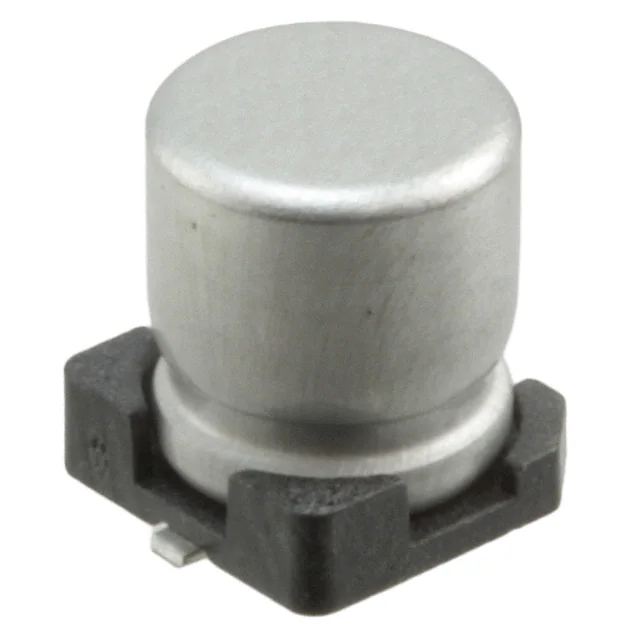

UUP1V4R7MCL1GSCAP ALUM 4.7UF 20% 35V SMD |
11,215 |
|
Datasheet |
UUP | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | AEC-Q200 | General Purpose | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UVY1A102MPD1TDCAP ALUM 1000UF 20% 10V RADIAL |
2,162 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 529 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ELXV250ELL331MJ16SCAP ALUM 330UF 20% 25V RADIAL TH |
1,976 |
|
Datasheet |
LXV | Bulk | Active | 330 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 536.25 mA @ 120 Hz | 825 mA @ 100 kHz | 84 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EEU-FS1J181CAP ALUM 180UF 20% 63V RADIAL TH |
1,807 |
|
Datasheet |
FS-A | Bulk | Active | 180 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 751.1 mA @ 120 Hz | 1.073 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EGXL160ELL471MJ16SCAP ALUM 470UF 20% 16V RADIAL TH |
1,398 |
|
Datasheet |
GXL | Bulk | Active | 470 µF | ±20% | 16 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 525 mA @ 120 Hz | 1.05 A @ 100 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
400RX304R7M10X16CAP ALUM 4.7UF 20% 400V RADIAL |
1,243 |
|
Datasheet |
RX30 | Bulk | Active | 4.7 µF | ±20% | 400 V | - | 2000 Hrs @ 130°C | -25°C ~ 130°C | Polar | AEC-Q200 | Automotive | 25 mA @ 120 Hz | 125 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
UPM1A471MPD6TDCAP ALUM 470UF 20% 10V RADIAL TH |
2,906 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 535 mA @ 120 Hz | 670 mA @ 10 kHz | 130 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
Series.jpg)
|
EEE-FPJ331XALCAP ALUM 330UF 20% 6.3V SMD |
2,500 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
Series.jpg)
|
EEE-FN0J102LCAP ALUM 1000UF 20% 6.3V SMD |
1,967 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 420 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FK1A821CAP ALUM 820UF 20% 10V RADIAL TH |
1,687 |
|
Datasheet |
FK | Bulk | Active | 820 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 675 mA @ 120 Hz | 900 mA @ 100 kHz | 63 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
Series.jpg)
|
EEE-FKC271XSLCAP ALUM 270UF 20% 16V SMD |
6,572 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 270 µF | ±20% | 16 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UUP1A220MCL1GSCAP ALUM 22UF 20% 10V SMD |
2,990 |
|
Datasheet |
UUP | Tape & Reel (TR) | Active | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | AEC-Q200 | General Purpose | 33 mA @ 120 Hz | 49.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FKV121XSLCAP ALUM 120UF 20% 35V SMD |
2,134 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 120 µF | ±20% | 35 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEE-HA0J331APCAP ALUM 330UF 20% 6.3V SMD |
1,999 |
|
Datasheet |
HA | Tape & Reel (TR) | Not For New Designs | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 230 mA @ 120 Hz | 391 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EKYC160ELL911MJC5SCAP ALUM 910UF 20% 16V RADIAL TH |
1,998 |
|
Datasheet |
KYC | Bulk | Active | 910 µF | ±20% | 16 V | 140mOhm @ 100kHz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 672 mA @ 120 Hz | 1.12 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|

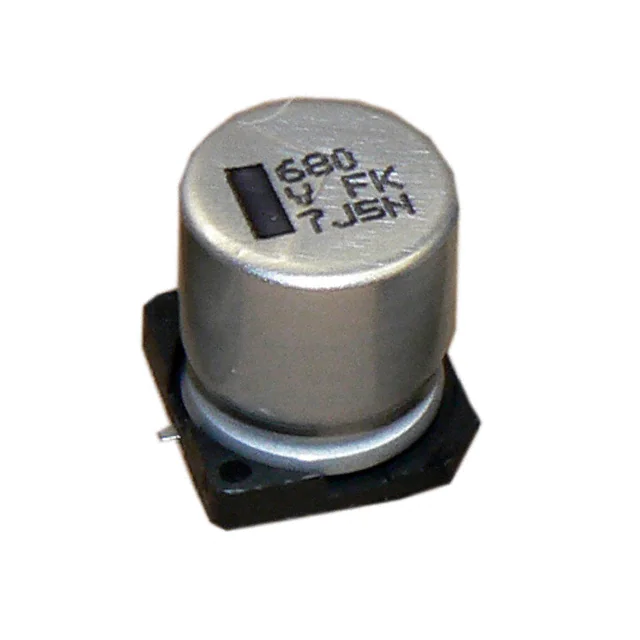

AFK336M10B12T-FCAP ALUM 33UF 20% 10V SMD |
1,728 |
|
Datasheet |
AFK | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 67.5 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.217" W (4.30mm x 5.50mm) | Surface Mount | |
|
|
EEE-FKE181XSLCAP ALUM 180UF 20% 25V SMD |
1,112 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 180 µF | ±20% | 25 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UUB2G1R8MNL1GSCAP ALUM 1.8UF 20% 400V SMD |
5,990 |
|
Datasheet |
UUB | Tape & Reel (TR) | Active | 1.8 µF | ±20% | 400 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | General Purpose | 27 mA @ 120 Hz | 40.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FS1A362BCAP ALUM 3600UF 20% 10V RADIAL |
2,441 |
|
Datasheet |
FS-A | Cut Tape (CT) | Active | 3600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
