Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860160474023CAP ALUM 560UF 20% 25V RADIAL TH |
1,002 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 560 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 709.92 mA @ 120 Hz | 1.224 A @ 100 kHz | 170 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UWD1H330MCL1GSCAP ALUM 33UF 20% 50V SMD |
2,125 |
|
Datasheet |
UWD | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 92.5 mA @ 120 Hz | 185 mA @ 100 kHz | 680 mOhms | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
200LEX8.2MEFC8X9CAP ALUM 8.2UF 20% 200V RADIAL |
1,897 |
|
Datasheet |
LEX | Bulk | Not For New Designs | 8.2 µF | ±20% | 200 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 66 mA @ 120 Hz | 125 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
UWT0J681MNL1GSCAP ALUM 680UF 20% 6.3V SMD |
7,500 |
|
Datasheet |
UWT | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 210 mA @ 120 Hz | 315 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UCD1C151MCL1GSCAP ALUM 150UF 20% 16V SMD |
5,334 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 145 mA @ 120 Hz | 290 mA @ 100 kHz | 320 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UHE1E331MPD6TDCAP ALUM 330UF 20% 25V RADIAL TH |
3,419 |
|
Datasheet |
UHE | Cut Tape (CT) | Active | 330 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 605.5 mA @ 120 Hz | 865 mA @ 100 kHz | 80 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
Series.jpg)
|
EEE-FN1C151ULCAP ALUM 150UF 20% 16V SMD |
2,217 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FN0J271ULCAP ALUM 270UF 20% 6.3V SMD |
2,000 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 270 µF | ±20% | 6.3 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPM0J561MPD6TDCAP ALUM 560UF 20% 6.3V RADIAL |
1,642 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 560 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 545 mA @ 120 Hz | 670 mA @ 10 kHz | 130 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
EEU-HD1H220CAP ALUM 22UF 20% 50V RADIAL TH |
1,282 |
|
Datasheet |
HD | Bulk | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 130 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
477KXM025MLQCAP ALUM 470UF 20% 25V RADIAL TH |
13,147 |
|
Datasheet |
KXM | Bulk | Active | 470 µF | ±20% | 25 V | 493.8mOhm @ 120Hz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 715 mA @ 120 Hz | 1.43 A @ 100 kHz | 221 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

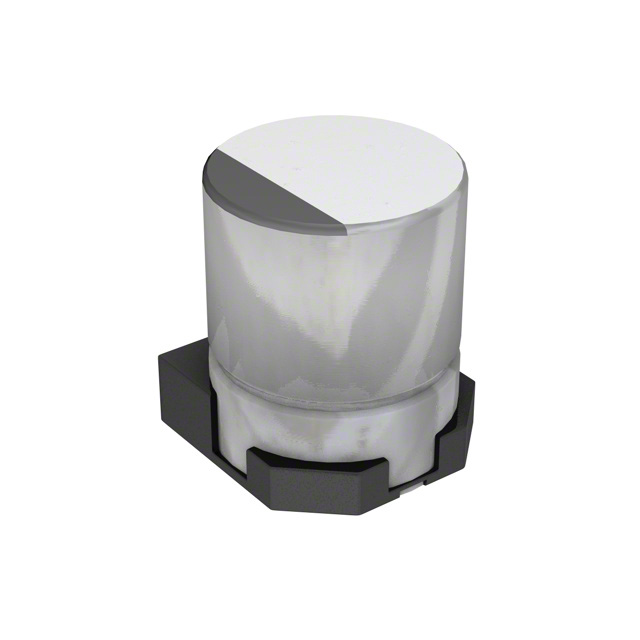

AVEZ226M16C12T-FCAP ALUM 22UF 20% 16V SMD |
9,824 |
|
Datasheet |
AVEZ | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | 1.5Ohm | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 88 mA @ 120 Hz | 110 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EEE-FK1C470ALCAP ALUM 47UF 20% 16V SMD |
6,987 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UVY2D100MPD1TDCAP ALUM 10UF 20% 200V RADIAL TH |
5,005 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 10 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 65.55 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
SK221M016STCAP ALUM 220UF 20% 16V RADIAL TH |
4,563 |
|
Datasheet |
SK | Bulk | Active | 220 µF | ±20% | 16 V | 970mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|

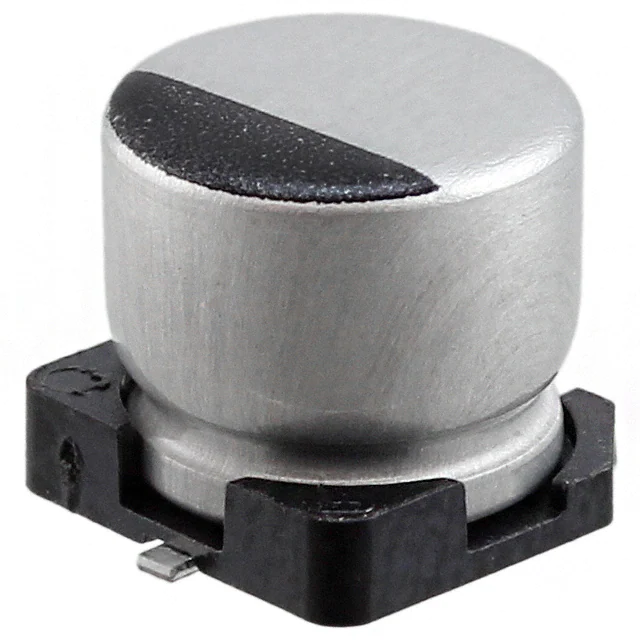

16TXV47M6.3X6.1CAP ALUM 47UF 20% 16V SMD |
4,226 |
|
Datasheet |
TXV | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | 1Ohm | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 35 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FK1E330ALCAP ALUM 33UF 20% 25V SMD |
2,435 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

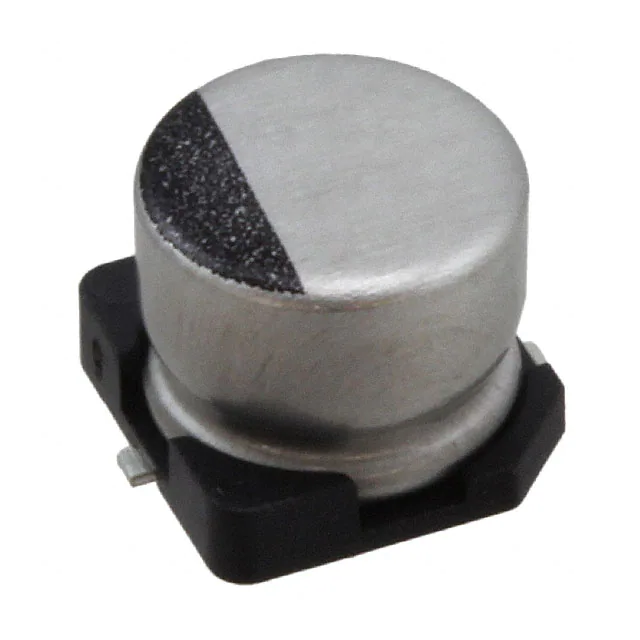

10SKV330M8X10.5CAP ALUM 330UF 20% 10V SMD |
2,400 |
|
Datasheet |
SKV | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 234 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UUX1A221MNL1GSCAP ALUM 220UF 20% 10V SMD |
2,385 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 173 mA @ 120 Hz | 224.9 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

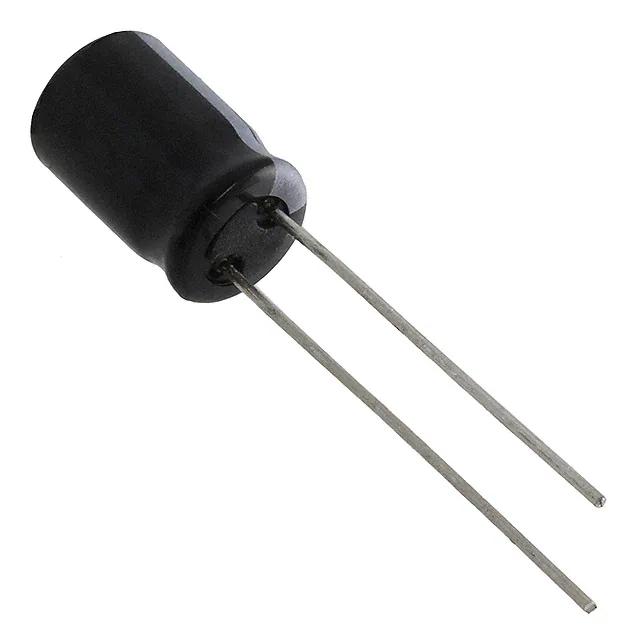

UVK2V3R3MPD1TDCAP ALUM 3.3UF 20% 350V RADIAL |
1,704 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 3.3 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 43 mA @ 120 Hz | 68.8 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
