Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
477KBM025MCAP ALUM 470UF 20% 25V RADIAL TH |
15,776 |
|
Datasheet |
KBM | Bulk | Active | 470 µF | ±20% | 25 V | 494mOhm @ 120Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 605 mA @ 120 Hz | 1.21 A @ 100 kHz | 60 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
107AXZ025MCAP ALUM 100UF 20% 25V SMD |
15,761 |
|
Datasheet |
AXZ | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | 2.32Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.307" (7.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPS1A471MPD1TDCAP ALUM 470UF 20% 10V RADIAL TH |
4,444 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 291.1 mA @ 120 Hz | 410 mA @ 100 kHz | 280 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EEE-HBA151UAPCAP ALUM 150UF 20% 10V SMD |
2,000 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 64 mA @ 120 Hz | 108.8 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ2A390MPD6TDCAP ALUM 39UF 20% 100V RADIAL TH |
2,942 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 39 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 193 mA @ 120 Hz | 337 mA @ 10 kHz | 360 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UPJ2A390MPD1TDCAP ALUM 39UF 20% 100V RADIAL TH |
2,613 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 39 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 202 mA @ 120 Hz | 352 mA @ 10 kHz | 330 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.827" (21.00mm) | - | Through Hole | |
|

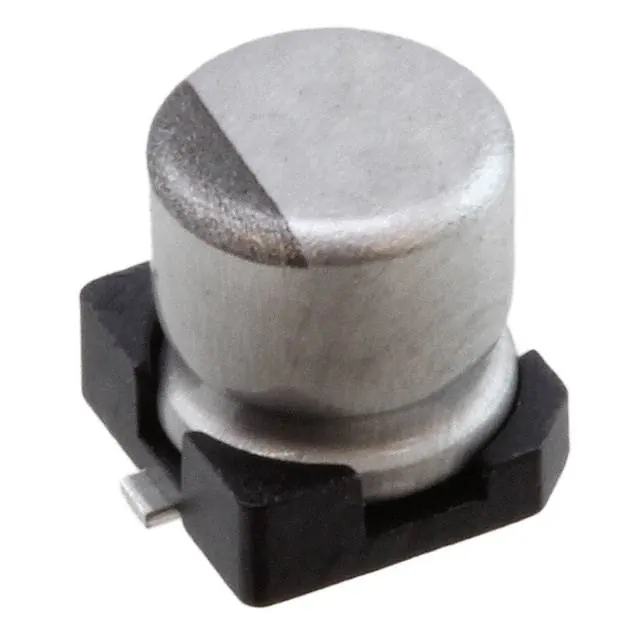

UZT1H2R2MCL1GBCAP ALUM 2.2UF 20% 50V SMD |
2,100 |
|
Datasheet |
UZT | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | AEC-Q200 | General Purpose | 9.6 mA @ 120 Hz | 14.4 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.181" (4.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

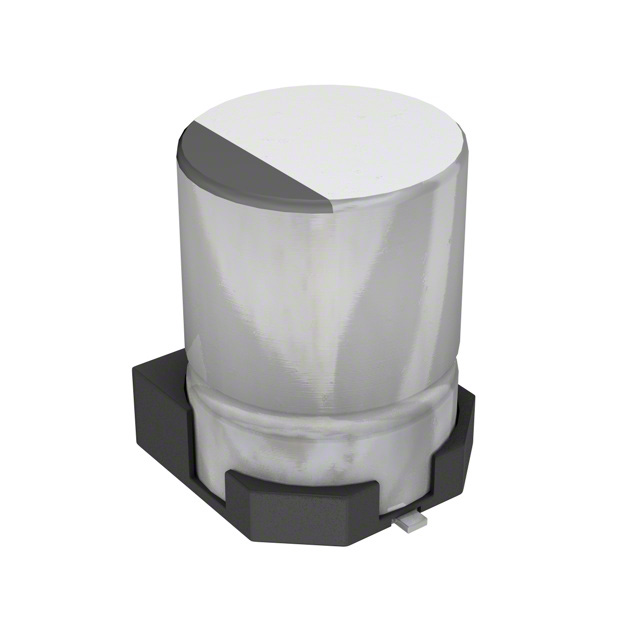

AVS105M50B12T-FCAP ALUM 1UF 20% 50V SMD |
5,947 |
|
Datasheet |
AVS | Tape & Reel (TR) | Not For New Designs | 1 µF | ±20% | 50 V | 199Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 10 mA @ 120 Hz | 17 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UPM1H820MPDCAP ALUM 82UF 20% 50V RADIAL TH |
5,317 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 82 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 320 mA @ 120 Hz | - | 170 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
Series.jpg)
|
EEE-FP0J102ALCAP ALUM 1000UF 20% 6.3V SMD |
3,144 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
25YXG470MEFC8X20CAP ALUM 470UF 20% 25V RADIAL TH |
1,430 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 470 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 577.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 69 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEE-FP1E680ALCAP ALUM 68UF 20% 25V SMD |
8,000 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 68 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UVK1H331MPD1TDCAP ALUM 330UF 20% 50V RADIAL TH |
5,000 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 885 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
Series.jpg)
|
EEE-FK1A221SLCAP ALUM 220UF 20% 10V SMD |
3,995 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 220 µF | ±20% | 10 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FP1A151ALCAP ALUM 150UF 20% 10V SMD |
3,370 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FK1V820SLCAP ALUM 82UF 20% 35V SMD |
3,000 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 82 µF | ±20% | 35 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FP1E330ALCAP ALUM 33UF 20% 25V SMD |
2,920 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FP0J221ALCAP ALUM 220UF 20% 6.3V SMD |
2,720 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
400LEX2.2MEFC8X9CAP ALUM 2.2UF 20% 400V RADIAL |
2,398 |
|
Datasheet |
LEX | Bulk | Not For New Designs | 2.2 µF | ±20% | 400 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 36 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|

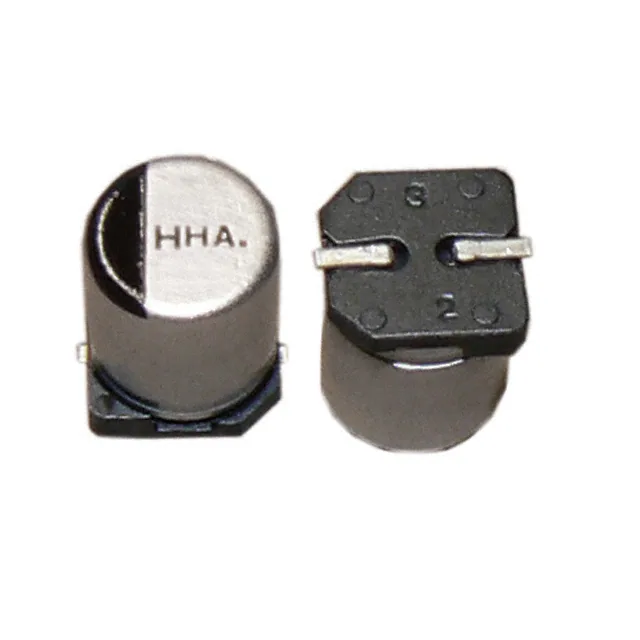

AHA225M50B12T-FCAP ALUM 2.2UF 20% 50V SMD |
2,000 |
|
Datasheet |
AHA | Tape & Reel (TR) | Not For New Designs | 2.2 µF | ±20% | 50 V | 90.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
