Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM1V121MPD1TACAP ALUM 120UF 20% 35V RADIAL TH |
1,953 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 120 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 370 mA @ 120 Hz | 550 mA @ 10 kHz | 140 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UHD1H121MPDCAP ALUM 120UF 20% 50V RADIAL TH |
1,805 |
|
Datasheet |
UHD | Bulk | Not For New Designs | 120 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 61 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UUX1A331MNL1GSCAP ALUM 330UF 20% 10V SMD |
1,486 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 318 mA @ 120 Hz | 413.4 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ATB227M016E077CAP ALUM 220UF 20% 16V SMD |
19,998 |
|
Datasheet |
ATB | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | 1.206Ohm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Surface Mount | |
|
127KXM050MCAP ALUM 120UF 20% 50V RADIAL TH |
3,976 |
|
Datasheet |
KXM | Bulk | Active | 120 µF | ±20% | 50 V | 1.3816Ohm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 950 mA @ 100 kHz | 180 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
URS1E471MPDCAP ALUM 470UF 20% 25V RADIAL TH |
2,014 |
|
Datasheet |
URS | Bulk | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 530 mA @ 120 Hz | 795 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
Series.jpg)
|
EEE-FK1C151SLCAP ALUM 150UF 20% 16V SMD |
1,980 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 150 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
107KBM050MFHCAP ALUM 100UF 20% 50V RADIAL TH |
15,805 |
|
Datasheet |
KBM | Bulk | Active | 100 µF | ±20% | 50 V | 1.6579Ohm @ 120Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EEE-FN0J331XPCAP ALUM 330UF 20% 6.3V SMD |
8,930 |
|
Datasheet |
FN | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ1J820MPD6TDCAP ALUM 82UF 20% 63V RADIAL TH |
2,476 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 82 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 580 mA @ 10 kHz | 240 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EKYB6R3ELL122MJC5SCAP ALUM 1200UF 20% 6.3V RADIAL |
1,939 |
|
Datasheet |
KYB | Bulk | Active | 1200 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.05 A @ 100 kHz | 64 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
450PK4.7MEFC10X12.5CAP ALUM 4.7UF 20% 450V RADIAL |
1,760 |
|
Datasheet |
PK | Bulk | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 46 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
475CKS450MCAP ALUM 4.7UF 20% 450V RADIAL |
8,550 |
|
Datasheet |
CKS | Bulk | Active | 4.7 µF | ±20% | 450 V | 84.6569Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Bypass, Decoupling | 75 mA @ 120 Hz | 187.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
EEE-FK0J182SLCAP ALUM 1800UF 20% 6.3V SMD |
892 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 1800 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EDT476M035S9LAACAP ALUM 47UF 20% 35V SMD |
18,449 |
|
Datasheet |
EDT | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 75 mA @ 120 Hz | 107.143 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-FK1A102ALCAP ALUM 1000UF 20% 10V SMD |
1,980 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FN1C221XLCAP ALUM 220UF 20% 16V SMD |
1,972 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

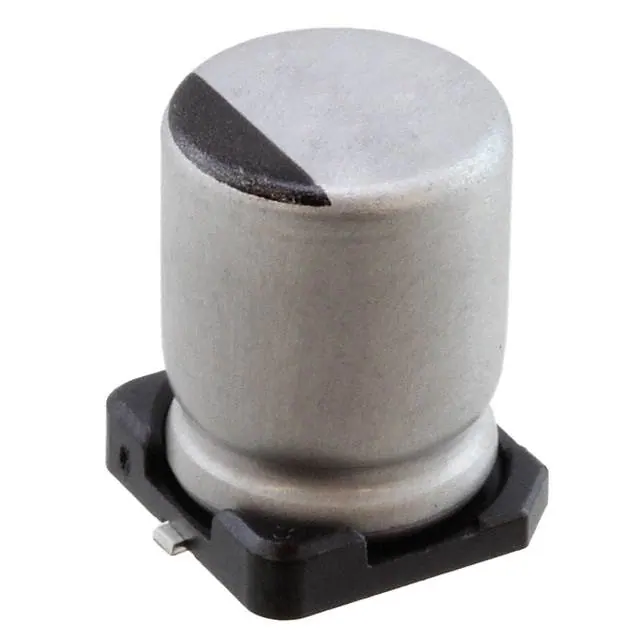

UWZ0J471MCL1GSCAP ALUM 470UF 20% 6.3V SMD |
1,909 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 210 mA @ 120 Hz | 315 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPA1A821MPDCAP ALUM 820UF 20% 10V RADIAL TH |
1,889 |
|
Datasheet |
UPA | Bulk | Active | 820 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 860 mA @ 100 kHz | 62 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
400LEX3.3MEFC8X11.5CAP ALUM 3.3UF 20% 400V RADIAL |
1,515 |
|
Datasheet |
LEX | Bulk | Active | 3.3 µF | ±20% | 400 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 47 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
