Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALF70C432EL200CAP ALUM 4300UF 20% 200V PRESS |
751 |
|
Datasheet |
ALF70 | Bulk | Active | 4300 µF | ±20% | 200 V | 58.27mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.04 A @ 100 Hz | 11.13 A @ 10 kHz | 39 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole, Press-Fit | |
|
381LX201M550A042CAP ALUM 200UF 20% 550V SNAP TH |
155 |
|
Datasheet |
381LX | Bulk | Active | 200 µF | ±20% | 550 V | 935mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.59 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
80MXG4700MEFCSN30X35CAP ALUM 4700UF 20% 80V SNAP TH |
147 |
|
Datasheet |
MXG | Bulk | Active | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.38 A @ 120 Hz | 3.887 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
382LX333M035A052CAP ALUM 33000UF 20% 35V SNAP TH |
236 |
|
Datasheet |
382LX | Bulk | Active | 33000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
420MXK680MEFCSN30X50CAP ALUM 680UF 20% 420V SNAP TH |
138 |
|
Datasheet |
MXK | Tray | Active | 680 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGG2W561MELC45CAP ALUM 560UF 20% 450V SNAP TH |
200 |
|
Datasheet |
LGG | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.431 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43505C9337M000CAP ALUM 330UF 20% 400V SNAP TH |
241 |
|
Datasheet |
B43505 | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | 270mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 100 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

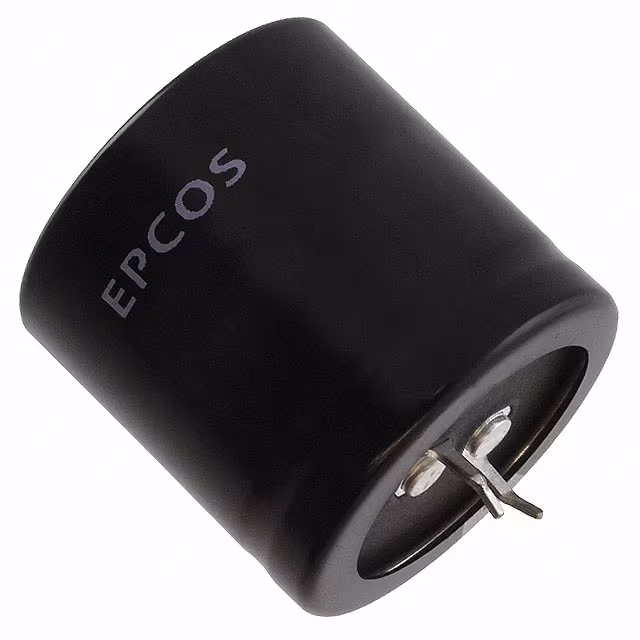

B43505C5227M000CAP ALUM 220UF 20% 450V SNAP TH |
340 |
|
Datasheet |
B43505 | Bulk | Not For New Designs | 220 µF | ±20% | 450 V | 620mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | - | 730 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC10A681DL450CAP ALUM 680UF 20% 450V SNAP TH |
910 |
|
Datasheet |
ALC10 | Bulk | Active | 680 µF | ±20% | 450 V | 190mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.61 A @ 100 Hz | 6.09 A @ 10 kHz | 131 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALA7DA681DF450CAP ALUM 680UF 20% 450V SNAP TH |
931 |
|
Datasheet |
ALA7D | Bulk | Active | 680 µF | ±20% | 450 V | 227.8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.9 A @ 100 Hz | 3.7 A @ 10 kHz | 567.8 mOhms | - | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
35USG33000MEFCSN35X50CAP ALUM 33000UF 20% 35V SNAP TH |
138 |
|
Datasheet |
USG | Bulk | Active | 33000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.49 A @ 120 Hz | 8.614 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL205017472E3CAP ALUM 4700UF 40V SOLDER LUG |
1,019 |
|
Datasheet |
050 PED-PW | Cut Tape (CT) | Active | 4700 µF | -10%, +30% | 40 V | 48mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 100 Hz | - | 35 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Chassis Mount | |
|
ALC70A473EH040CAP ALUM 47000UF 20% 40V SNAP TH |
245 |
|
Datasheet |
ALC70 | Bulk | Active | 47000 µF | ±20% | 40 V | 21.17mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.02 A @ 100 Hz | 12.52 A @ 10 kHz | 18 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
383LX562M100A062CAP ALUM 5600UF 20% 100V SNAP TH |
139 |
|
Datasheet |
383LX | Bulk | Active | 5600 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 2.559" (65.00mm) | - | Through Hole | |
|
ALT22A223DD040CAP ALUM 22000UF 20% 40V SNAP TH |
349 |
|
Datasheet |
ALT22 | Box | Active | 22000 µF | ±20% | 40 V | - | - | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|

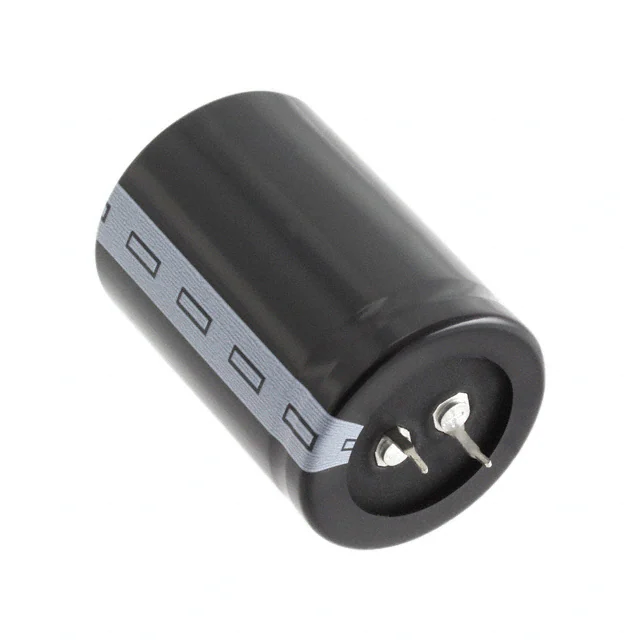

B43504A9567M000CAP ALUM 560UF 20% 400V SNAP TH |
161 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 560 µF | ±20% | 400 V | 160mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 100 Hz | - | 200 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
.jpg)
|
ALC80C102EJ400CAP ALUM 1000UF 20% 400V SNAP TH |
1,113 |
|
Datasheet |
ALC80 | Bulk | Active | 1000 µF | ±20% | 400 V | 128.4mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.34 A @ 100 Hz | 10.32 A @ 10 kHz | 60 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
380LX331M550A052CAP ALUM 330UF 20% 550V SNAP TH |
132 |
|
Datasheet |
380LX | Bulk | Active | 330 µF | ±20% | 550 V | 562mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 2.01 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL225727471E3CAP ALUM 470UF 20% 450V SNAP TH |
1,509 |
|
Datasheet |
257 PRM-SI | Box | Active | 470 µF | ±20% | 450 V | 420mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 100 Hz | 3.346 A @ 10 kHz | 350 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

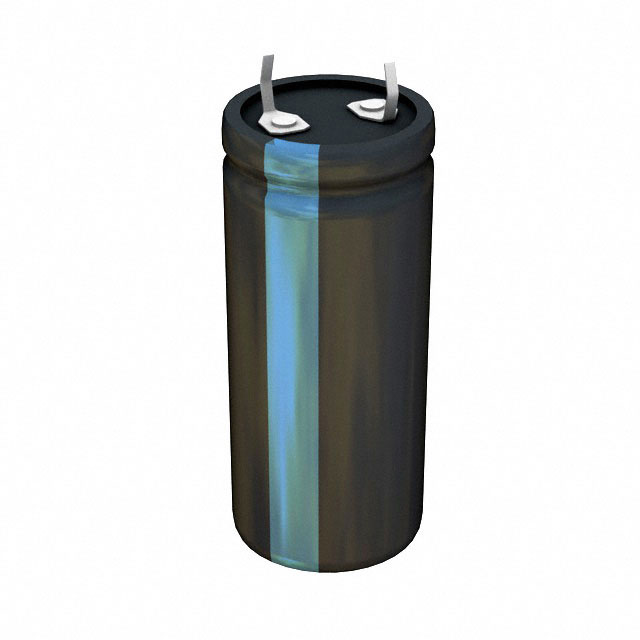

380LX683M025A082CAP ALUM 68000UF 20% 25V SNAP TH |
145 |
|
Datasheet |
380LX | Bulk | Active | 68000 µF | ±20% | 25 V | 13mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 3.228" (82.00mm) | - | Through Hole |
