Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
080MD22ABMK1STDCAP ALUM 80UF 10% 220V QC CHAS M |
283 |
|
Datasheet |
MD | Box | Active | 80 µF | ±10% | 220 V | - | 500 Hrs @ 70°C | -20°C ~ 70°C | - | - | Motor Start | - | - | - | - | 1.535" Dia (39.00mm) | 3.543" (90.00mm) | - | Chassis Mount | |
|
229TTA016MCAP ALUM 22000UF 20% 16V AXIAL |
243 |
|
Datasheet |
TTA | Bulk | Active | 22000 µF | ±20% | 16 V | 46.7mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.608 A @ 50 kHz | - | - | 0.866" Dia x 2.010" L (22.00mm x 51.00mm) | - | - | Through Hole | |
|
MAL211816472E3CAP ALUM 4700UF 20% 25V AXIAL TH |
797 |
|
Datasheet |
118 AHT | Bulk | Active | 4700 µF | ±20% | 25 V | 95mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.052 A @ 10 kHz | 100 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
PEH227KMP4420QE4CAP ALUM 4200UF 40V SOLDER LUG |
264 |
|
Datasheet |
PEH227 | Tray | Active | 4200 µF | -10%, +30% | 40 V | 27mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.15 A @ 100 Hz | 9.36 A @ 100 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.445" (36.70mm) | - | Through Hole | |
|
LGGW6561MELC40CAP ALUM 560UF 20% 420V SNAP TH |
296 |
|
Datasheet |
LGG | Bulk | Active | 560 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205656682E3CAP ALUM 6800UF 20% 25V SNAP TH |
759 |
|
Datasheet |
056 PSM-SI | Bulk | Active | 6800 µF | ±20% | 25 V | 54mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.81 A @ 100 Hz | - | 41 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
382LX152M250A052CAP ALUM 1500UF 20% 250V SNAP TH |
503 |
|
Datasheet |
382LX | Bulk | Active | 1500 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
MAL211818102E3CAP ALUM 1000UF 20% 63V AXIAL TH |
991 |
|
Datasheet |
118 AHT | Bulk | Active | 1000 µF | ±20% | 63 V | 160mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 1.82 A @ 10 kHz | 200 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
PSU27015ACAP ALUM 270UF 125V QC CHAS MT |
190 |
|
Datasheet |
PSU | Bulk | Active | 270 µF | 0%, +20% | 125 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.438" Dia (36.53mm) | 3.435" (87.25mm) | - | Chassis Mount | |
|
B43501A5337M000CAP ALUM 330UF 20% 450V SNAP TH |
105 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 330 µF | ±20% | 450 V | 400mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 100 Hz | - | 490 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL219367221E3CAP ALUM 220UF 20% 450V SNAP TH |
107 |
|
Datasheet |
193 PUR-SI | Bulk | Active | 220 µF | ±20% | 450 V | 370mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | 2.25 A @ 10 kHz | 210 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

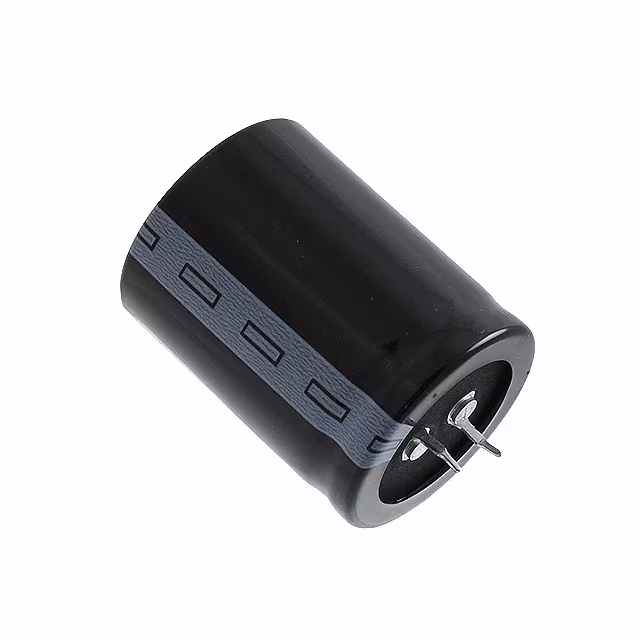

B43305A5687M000CAP ALUM 680UF 20% 450V SNAP TH |
330 |
|
Datasheet |
B43305 | Bulk | Not For New Designs | 680 µF | ±20% | 450 V | 200mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 100 Hz | - | 280 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALA7DA221CD550CAP ALUM 220UF 20% 550V SNAP TH |
147 |
|
Datasheet |
ALA7D | Bulk | Active | 220 µF | ±20% | 550 V | 772mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.6 A @ 100 Hz | 3.5 A @ 10 kHz | 533 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PSU4330CAP ALUM 43UF 330V QC CHAS MT |
148 |
|
Datasheet |
PSU | Bulk | Active | 43 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.438" Dia (36.53mm) | 3.435" (87.25mm) | - | Chassis Mount | |
|
LGZ2W221MELC40CAP ALUM 220UF 20% 450V SNAP TH |
328 |
|
Datasheet |
LGZ | Bulk | Active | 220 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC10A331DD450CAP ALUM 330UF 20% 450V SNAP TH |
807 |
|
Datasheet |
ALC10 | Bulk | Active | 330 µF | ±20% | 450 V | 364mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 100 Hz | 3.68 A @ 10 kHz | 242 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43547E2128M000CAP ALUM 1200UF 20% 250V SNAP TH |
477 |
|
Datasheet |
B43547 | Tray | Active | 1200 µF | ±20% | 250 V | 60mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.93 A @ 100 Hz | - | 85 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL215919221E3CAP ALUM 220UF 20% 500V SNAP TH |
546 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 220 µF | ±20% | 500 V | 630mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 1.918 A @ 10 kHz | 480 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LGX2H471MELC58CAP ALUM 470UF 20% 500V SNAP TH |
227 |
|
Datasheet |
LGX | Bulk | Active | 470 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9029 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.362" (60.00mm) | - | Through Hole | |
|
B43544B2228M000CAP ALUM 2200UF 20% 200V SNAP TH |
636 |
|
Datasheet |
B43544 | Tray | Active | 2200 µF | ±20% | 200 V | 40mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.64 A @ 100 Hz | - | 60 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole |
