Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100MXG4700MEFCSN30X50CAP ALUM 4700UF 20% 100V SNAP TH |
726 |
|
Datasheet |
MXG | Bulk | Active | 4700 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.37 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALA7DA301CF550CAP ALUM 300UF 20% 550V SNAP TH |
867 |
|
Datasheet |
ALA7D | Bulk | Active | 300 µF | ±20% | 550 V | 567mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2 A @ 100 Hz | 4.3 A @ 10 kHz | 392 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMS161VSN332MA50SCAP ALUM 3300UF 20% 160V SNAP TH |
189 |
|
Datasheet |
KMS | Bulk | Active | 3300 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 8.1 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
B43305B9687M000CAP ALUM 680UF 20% 400V SNAP TH |
180 |
|
Datasheet |
B43305 | Bulk | Not For New Designs | 680 µF | ±20% | 400 V | 200mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.64 A @ 100 Hz | - | 270 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
382LX223M050A052CAP ALUM 22000UF 20% 50V SNAP TH |
1,458 |
|
Datasheet |
382LX | Bulk | Active | 22000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450VXH560MEFCSN35X45CAP ALUM 560UF 20% 450V SNAP TH |
1,460 |
|
Datasheet |
VXH | Bulk | Active | 560 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.16 A @ 120 Hz | 3.024 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC70A681DF400CAP ALUM 680UF 20% 400V SNAP TH |
947 |
|
Datasheet |
ALC70 | Bulk | Active | 680 µF | ±20% | 400 V | 204.7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.99 A @ 100 Hz | 6.92 A @ 10 kHz | 109 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEG124YJ2330QE4CAP ALUM 33UF 450V AXIAL TH |
1,033 |
|
Datasheet |
PEG124 | Bulk | Active | 33 µF | -10%, +30% | 450 V | 1.6Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 306 mA @ 100 Hz | 720 mA @ 5 kHz | - | - | 0.787" Dia x 1.457" L (20.00mm x 37.00mm) | - | - | Through Hole | |
|
MAL211817222E3CAP ALUM 2200UF 20% 40V AXIAL TH |
383 |
|
Datasheet |
118 AHT | Bulk | Active | 2200 µF | ±20% | 40 V | 105mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.002 A @ 10 kHz | 100 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|

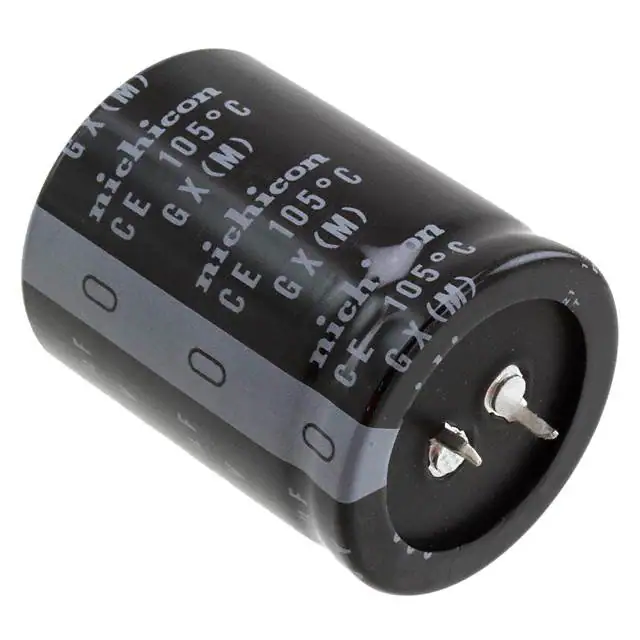

LGX2G681MELC45CAP ALUM 680UF 20% 400V SNAP TH |
1,040 |
|
Datasheet |
LGX | Bulk | Active | 680 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 3.0316 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC70A181DD630CAP ALUM 180UF 20% 630V SNAP TH |
290 |
|
Datasheet |
ALC70 | Bulk | Active | 180 µF | ±20% | 630 V | 727.3mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.79 A @ 100 Hz | 3.89 A @ 10 kHz | 501 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43634A5477M000CAP ALUM 470UF 20% 450V SNAP TH |
220 |
|
Datasheet |
B43634 | Bulk | Active | 470 µF | ±20% | 450 V | 230mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LQ391M450A042CAP ALUM 390UF 20% 450V SNAP TH |
311 |
|
Datasheet |
381LQ | Bulk | Active | 390 µF | ±20% | 450 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43547A5477M087CAP ALUM 470UF 20% 450V SNAP TH |
224 |
|
Datasheet |
B43547 | Tray | Active | 470 µF | ±20% | 450 V | 160mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.79 A @ 100 Hz | - | 240 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.055" (52.20mm) | - | Through Hole | |
|
LGUW6561MELCCAP ALUM 560UF 20% 420V SNAP TH |
200 |
|
Datasheet |
LGU | Bulk | Active | 560 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.0745 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
B43508C9337M000CAP ALUM 330UF 20% 400V SNAP TH |
358 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | 370mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | - | 530 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ALA7DA181CE600CAP ALUM 180UF 20% 600V SNAP TH |
349 |
|
Datasheet |
ALA7D | Bulk | Active | 180 µF | ±20% | 600 V | 708mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.7 A @ 100 Hz | 3.8 A @ 10 kHz | 488 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43647B5477M057CAP ALUM 470UF 20% 450V SNAP TH |
258 |
|
Datasheet |
B43647 | Bulk | Active | 470 µF | ±20% | 450 V | 240mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | - | 360 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLPX821M400H9P3CAP ALUM 820UF 20% 400V SNAP TH |
2,323 |
|
Datasheet |
SLPX | Bulk | Active | 820 µF | ±20% | 400 V | 240mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 4.25 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

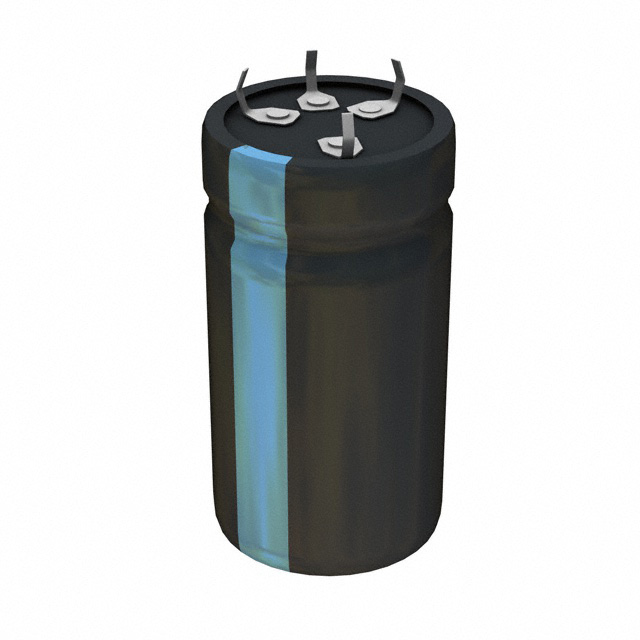

381LX821M400A062CAP ALUM 820UF 20% 400V SNAP TH |
822 |
|
Datasheet |
381LX | Bulk | Active | 820 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.44 A @ 120 Hz | 3.42 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.559" (65.00mm) | - | Through Hole |
