Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400MXK470MEFCSN22X60CAP ALUM 470UF 20% 400V SNAP TH |
199 |
|
Datasheet |
MXK | Bulk | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.08 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
450MXH470MEFCSN25X60CAP ALUM 470UF 20% 450V SNAP TH |
157 |
|
Datasheet |
MXH | Bulk | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.21 A @ 120 Hz | 3.094 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
MAL225641103E3CAP ALUM 10000UF 20% 50V SNAP TH |
174 |
|
Datasheet |
256 PMG-SI | Bulk | Active | 10000 µF | ±20% | 50 V | 46mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.55 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALH82A161CF600CAP ALUM 160UF 20% 600V SNAP TH |
388 |
|
Datasheet |
ALH82 | Tray | Active | 160 µF | ±20% | 600 V | 874mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 100 Hz | 4.44 A @ 10 kHz | 591 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
35MXG27000MEFCSN35X50CAP ALUM 27000UF 20% 35V SNAP TH |
134 |
|
Datasheet |
MXG | Bulk | Active | 27000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGN2E182MELC50CAP ALUM 1800UF 20% 250V SNAP TH |
180 |
|
Datasheet |
LGN | Bulk | Active | 1800 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LLG2D222MELB50CAP ALUM 2200UF 20% 200V SNAP TH |
122 |
|
Datasheet |
LLG | Bulk | Active | 2200 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.18 A @ 120 Hz | 6.27 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
420MXK390MEFCSN25X45CAP ALUM 390UF 20% 420V SNAP TH |
126 |
|
Datasheet |
MXK | Tray | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 120 Hz | 2.744 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGG2W331MELC30CAP ALUM 330UF 20% 450V SNAP TH |
544 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43548A6337M060CAP ALUM 330UF 20% 500V SNAP TH |
447 |
|
Datasheet |
B43548 | Bulk | Active | 330 µF | ±20% | 500 V | 210mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.52 A @ 100 Hz | - | 300 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
LGL2G391MELA40CAP ALUM 390UF 20% 400V SNAP TH |
141 |
|
Datasheet |
LGL | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELHS501VSN391MR60SCAP ALUM 390UF 20% 500V SNAP TH |
190 |
|
Datasheet |
LHS | Bulk | Active | 390 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.6741 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.461" (62.50mm) | - | Through Hole | |
|
MAL205655223E3CAP ALUM 22000UF 20% 16V SNAP TH |
1,510 |
|
Datasheet |
056 PSM-SI | Bulk | Active | 22000 µF | ±20% | 16 V | 33mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.51 A @ 100 Hz | - | 28 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43544E5477M000CAP ALUM 470UF 20% 450V SNAP TH |
399 |
|
Datasheet |
B43544 | Bulk | Active | 470 µF | ±20% | 450 V | 210mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.83 A @ 100 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

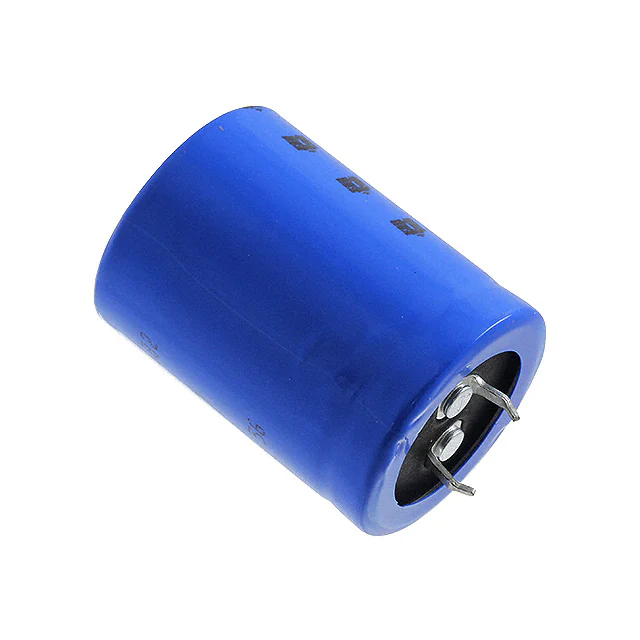

MAL215831682E3CAP ALUM 6800UF 20% 50V SNAP TH |
738 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 6800 µF | ±20% | 50 V | 52mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.17 A @ 100 Hz | - | 41 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLPX471M400H7P3CAP ALUM 470UF 20% 400V SNAP TH |
308 |
|
Datasheet |
SLPX | Bulk | Active | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.54 A @ 120 Hz | 3.73 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGG2P182MELC40CAP ALUM 1800UF 20% 220V SNAP TH |
171 |
|
Datasheet |
LGG | Bulk | Active | 1800 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
500D108M050GK2CAP ALUM 1000UF 20% 50V AXIAL TH |
491 |
|
Datasheet |
500D | Bulk | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.630" Dia x 1.752" L (16.00mm x 44.50mm) | - | - | Through Hole | |
|
30D158M050GK2ACAP ALUM 1500UF 20% 50V AXIAL TH |
382 |
|
Datasheet |
30D | Bulk | Active | 1500 µF | ±20% | 50 V | 176mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.338 A @ 100 kHz | - | - | 0.630" Dia x 1.752" L (16.00mm x 44.50mm) | - | - | Through Hole | |
|
|
500D107M160GK2ACAP ALUM 100UF 20% 160V AXIAL TH |
201 |
|
Datasheet |
500D | Bulk | Active | 100 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.630" Dia x 1.752" L (16.00mm x 44.50mm) | - | - | Through Hole |
