Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALA7DA241DC550CAP ALUM 240UF 20% 550V SNAP TH |
129 |
|
Datasheet |
ALA7D | Bulk | Active | 240 µF | ±20% | 550 V | 713mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.8 A @ 100 Hz | 3.7 A @ 10 kHz | 494 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
PEH532RDH4220M2CAP ALUM 2200UF 20% 200V SNAP TH |
616 |
|
Datasheet |
PEH532 | Box | Active | 2200 µF | ±20% | 200 V | 67mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 8.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.165" (55.00mm) | - | Through Hole | |
|
ALA8DF431CF450CAP ALUM 430UF 20% 450V SNAP TH |
1,127 |
|
Datasheet |
ALA8D | Bulk | Active | 430 µF | ±20% | 450 V | 318.2mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.91 A @ 100 Hz | 7.14 A @ 10 kHz | 147 mOhms | - | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL212019471E3CAP ALUM 470UF 20% 100V AXIAL TH |
891 |
|
Datasheet |
120 ATC | Bulk | Active | 470 µF | ±20% | 100 V | 92mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.8 A @ 10 kHz | 94 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
381LX332M100A042CAP ALUM 3300UF 20% 100V SNAP TH |
2,259 |
|
Datasheet |
381LX | Bulk | Active | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

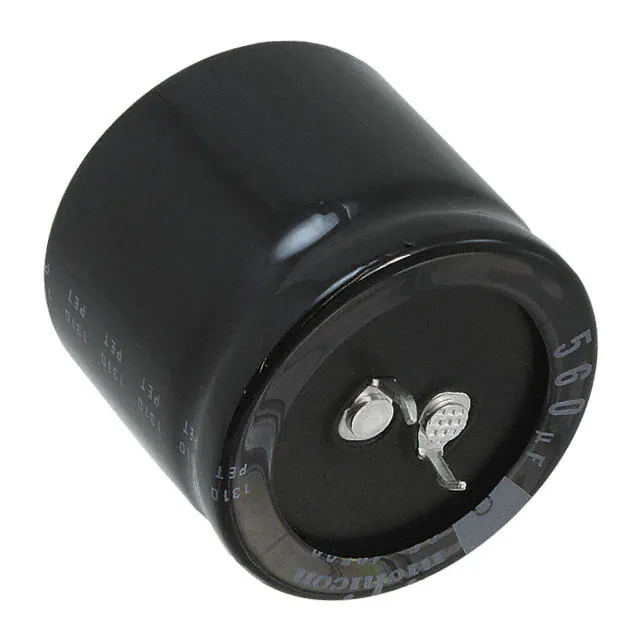

LGL2G561MELC30CAP ALUM 560UF 20% 400V SNAP TH |
106 |
|
Datasheet |
LGL | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.3738 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXS401VSN681MA45SCAP ALUM 680UF 20% 400V SNAP TH |
592 |
|
Datasheet |
LXS | Bulk | Active | 680 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.432 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
383LX183M063A082CAP ALUM 18000UF 20% 63V SNAP TH |
348 |
|
Datasheet |
383LX | Bulk | Active | 18000 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
LLG2G821MELC40CAP ALUM 820UF 20% 400V SNAP TH |
157 |
|
Datasheet |
LLG | Bulk | Active | 820 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 3.8467 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKX2W471MESC45CAP ALUM 470UF 20% 450V SNAP TH |
116 |
|
Datasheet |
LKX | Bulk | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.78 A @ 120 Hz | 2.5454 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450MXK560MEFCSN35X40CAP ALUM 560UF 20% 450V SNAP TH |
229 |
|
Datasheet |
MXK | Tray | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.01 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43416C9707A000CAP ALUM 700UF 400V SNAP TH |
110 |
|
Datasheet |
B43416 | Bulk | Active | 700 µF | -10%, +20% | 400 V | - | - | -40°C ~ 60°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450VXG470MEFCSN35X45CAP ALUM 470UF 20% 450V SNAP TH |
158 |
|
Datasheet |
VXG | Bulk | Active | 470 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.87 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ELHS501VSN561MA60SCAP ALUM 560UF 20% 500V SNAP TH |
181 |
|
Datasheet |
LHS | Bulk | Active | 560 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.21 A @ 120 Hz | 3.1603 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.461" (62.50mm) | - | Through Hole | |
|
420MXH680MEFCSN30X60CAP ALUM 680UF 20% 420V SNAP TH |
2,541 |
|
Datasheet |
MXH | Bulk | Active | 680 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.59 A @ 120 Hz | 3.626 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
400MXK680MEFCSN30X45CAP ALUM 680UF 20% 400V SNAP TH |
174 |
|
Datasheet |
MXK | Tray | Active | 680 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.29 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

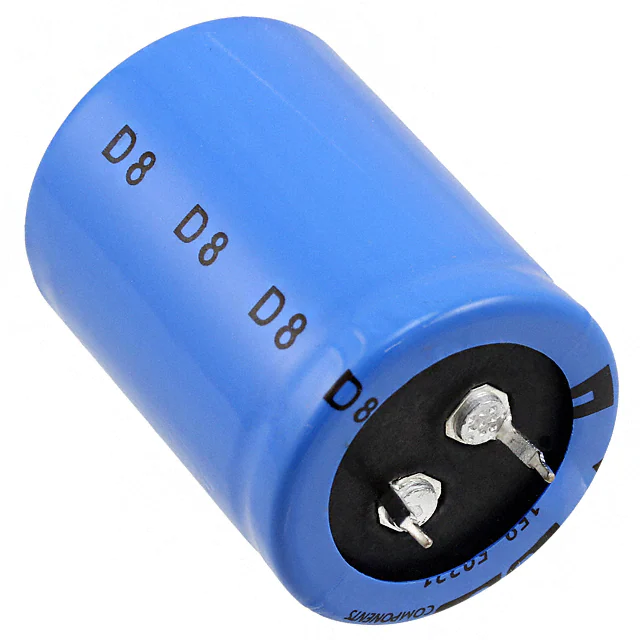

MAL215947221E3CAP ALUM 220UF 20% 450V SNAP TH |
8,539 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 220 µF | ±20% | 450 V | 740mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | - | 525 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205736221E3CAP ALUM 220UF 20% 400V SNAP TH |
805 |
|
Datasheet |
057 PSM-SI | Bulk | Active | 220 µF | ±20% | 400 V | 650mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.5 A @ 100 Hz | - | 400 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450MXK680MEFCFA30X50CAP ALUM 680UF 20% 450V SNAP TH |
633 |
|
Datasheet |
MXK | Bulk | Active | 680 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 3.374 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ821M400A052CAP ALUM 820UF 20% 400V SNAP TH |
208 |
|
Datasheet |
380LQ | Bulk | Active | 820 µF | ±20% | 400 V | 243mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole |
