Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL211819471E3CAP ALUM 470UF 20% 100V AXIAL TH |
773 |
|
Datasheet |
118 AHT | Bulk | Active | 470 µF | ±20% | 100 V | 330mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 1.47 A @ 10 kHz | 280 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
LKX2D122MESC35CAP ALUM 1200UF 20% 200V SNAP TH |
188 |
|
Datasheet |
LKX | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.65 A @ 120 Hz | 3.975 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

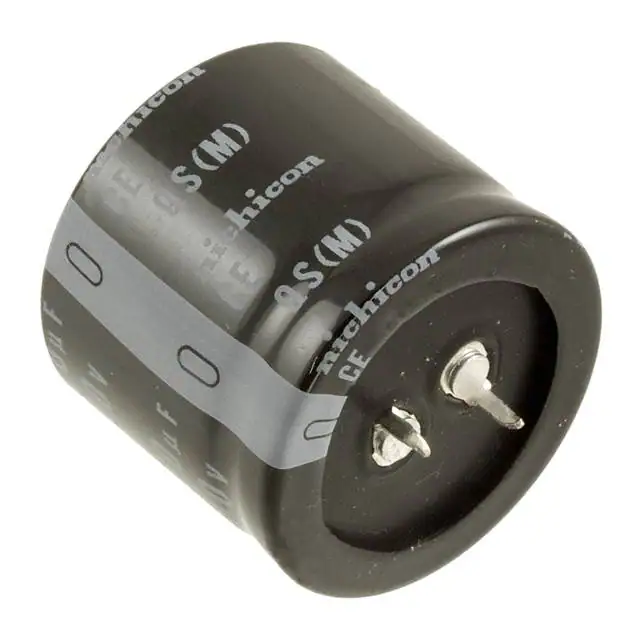

LQSW6331MELC30CAP ALUM 330UF 20% 420V SNAP TH |
142 |
|
Datasheet |
LQS | Bulk | Active | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.0306 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGG2G471MELB40CAP ALUM 470UF 20% 400V SNAP TH |
155 |
|
Datasheet |
LGG | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450HXG470MEFCSN35X45CAP ALUM 470UF 20% 450V SNAP TH |
4,500 |
|
Datasheet |
HXG | Bulk | Active | 470 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.92 A @ 120 Hz | 4.088 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL205646103E3CAP ALUM 10000UF 20% 25V SNAP TH |
1,258 |
|
Datasheet |
056 PSM-SI | Bulk | Active | 10000 µF | ±20% | 25 V | 39mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.73 A @ 100 Hz | - | 30 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALH82A331DH550CAP ALUM 330UF 20% 550V SNAP TH |
461 |
|
Datasheet |
ALH82 | Tray | Active | 330 µF | ±20% | 550 V | 400mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.77 A @ 100 Hz | 7 A @ 10 kHz | 274 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
LGL2G471MELB35CAP ALUM 470UF 20% 400V SNAP TH |
163 |
|
Datasheet |
LGL | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC10C223ED035CAP ALUM 22000UF 20% 35V SNAP TH |
443 |
|
Datasheet |
ALC10 | Box | Active | 22000 µF | ±20% | 35 V | 61mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.56 A @ 100 Hz | 5.65 A @ 10 kHz | 55 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGG2G471MELA50CAP ALUM 470UF 20% 400V SNAP TH |
412 |
|
Datasheet |
LGG | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC10C153EB035CAP ALUM 15000UF 20% 35V SNAP TH |
693 |
|
Datasheet |
ALC10 | Box | Active | 15000 µF | ±20% | 35 V | 87mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.24 A @ 100 Hz | 4.31 A @ 10 kHz | 78 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGG2C272MELC40CAP ALUM 2700UF 20% 160V SNAP TH |
174 |
|
Datasheet |
LGG | Bulk | Active | 2700 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

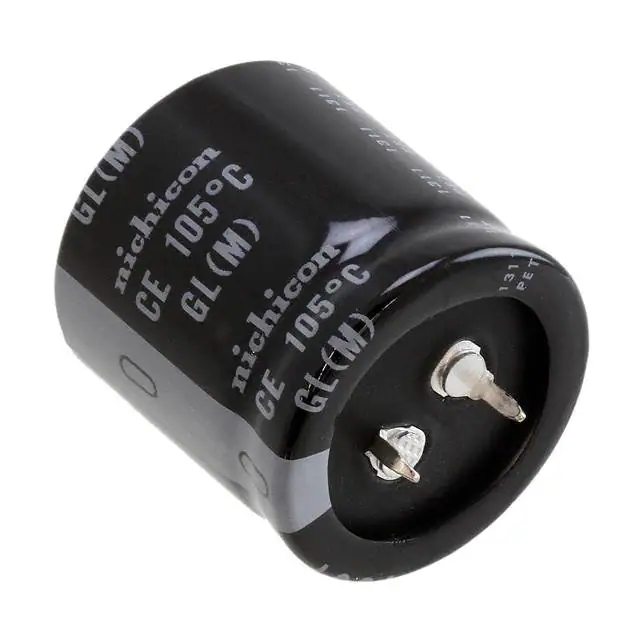

LGL2G391MELB30CAP ALUM 390UF 20% 400V SNAP TH |
148 |
|
Datasheet |
LGL | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EKMH630VSN472MQ50UCAP ALUM 4700UF 20% 63V SNAP TH |
460 |
|
Datasheet |
KMH | Bulk | Active | 4700 µF | ±20% | 63 V | 53mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.86 A @ 120 Hz | 3.432 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEH536YDG3330M3CAP ALUM 330UF 20% 450V SNAP TH |
837 |
|
Datasheet |
PEH536 | Box | Active | 330 µF | ±20% | 450 V | 220mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 100 Hz | 11.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ALA8DA361DE500CAP ALUM 360UF 20% 500V SNAP TH |
702 |
|
Datasheet |
ALA8D | Bulk | Active | 360 µF | ±20% | 500 V | 577mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.21 A @ 100 Hz | 4.59 A @ 10 kHz | 234.6 mOhms | - | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

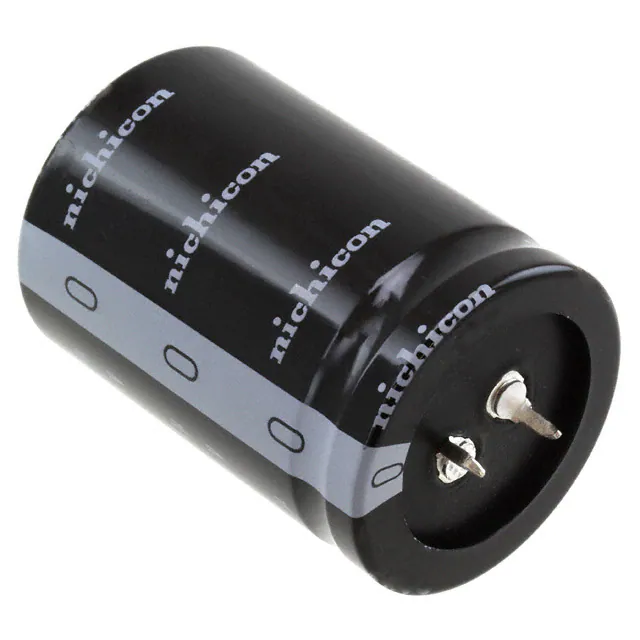

LLS2E182MELCCAP ALUM 1800UF 20% 250V SNAP TH |
189 |
|
Datasheet |
LLS | Bulk | Active | 1800 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.54 A @ 120 Hz | 6.81 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
678D257H050DM5JCAP ALUM 250UF 50V RADIAL TH |
557 |
|
Datasheet |
678D | Bulk | Active | 250 µF | - | 50 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
LGZ2W221MELB50CAP ALUM 220UF 20% 450V SNAP TH |
314 |
|
Datasheet |
LGZ | Bulk | Active | 220 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMH350VSN153MA35UCAP ALUM 15000UF 20% 35V SNAP TH |
550 |
|
Datasheet |
KMH | Bulk | Active | 15000 µF | ±20% | 35 V | 28mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.67 A @ 120 Hz | 3.9636 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
