Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL205857472E3CAP ALUM 4700UF 20% 40V SNAP TH |
688 |
|
Datasheet |
058 PLL-SI | Bulk | Active | 4700 µF | ±20% | 40 V | 59mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.96 A @ 100 Hz | - | 40 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
160MXG2700MEFCSN30X60CAP ALUM 2700UF 20% 160V SNAP TH |
182 |
|
Datasheet |
MXG | Bulk | Active | 2700 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.58 A @ 120 Hz | 5.37 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|

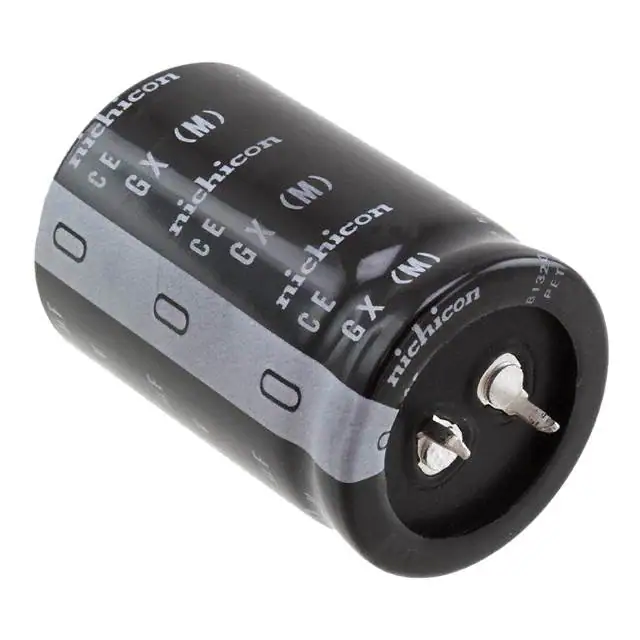

LGX2G471MELB45CAP ALUM 470UF 20% 400V SNAP TH |
360 |
|
Datasheet |
LGX | Bulk | Active | 470 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.81 A @ 120 Hz | 2.5883 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGG2W331MELA50CAP ALUM 330UF 20% 450V SNAP TH |
250 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43504A9337M000CAP ALUM 330UF 20% 400V SNAP TH |
1,817 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | 270mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
420MXK560MEFCSN30X45CAP ALUM 560UF 20% 420V SNAP TH |
1,377 |
|
Datasheet |
MXK | Tray | Active | 560 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALF80C561EF450CAP ALUM 560UF 20% 450V PRESS |
864 |
|
Datasheet |
ALF80 | Bulk | Active | 560 µF | ±20% | 450 V | 240mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 100 Hz | 7.97 A @ 10 kHz | 140 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|

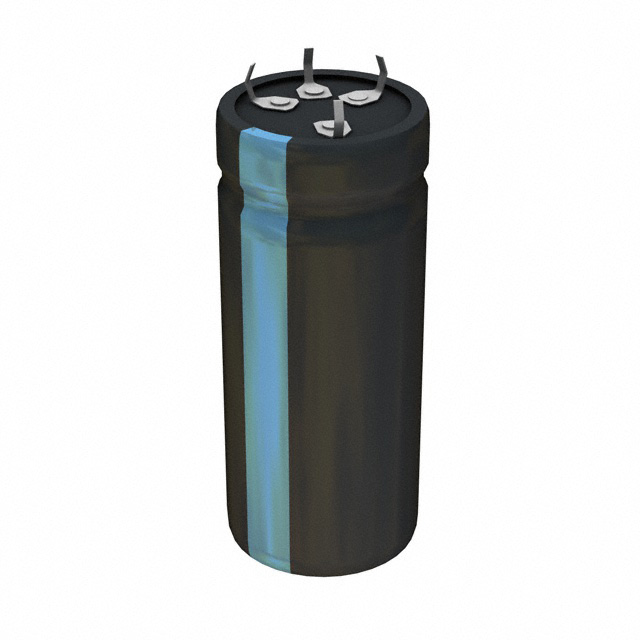

382LX183M063A082CAP ALUM 18000UF 20% 63V SNAP TH |
1,153 |
|
Datasheet |
382LX | Bulk | Active | 18000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
LGW2G471MELB50CAP ALUM 470UF 20% 400V SNAP TH |
166 |
|
Datasheet |
LGW | Bulk | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.85 A @ 120 Hz | 4.0755 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
381LX331M450A042CAP ALUM 330UF 20% 450V SNAP TH |
2,002 |
|
Datasheet |
381LX | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205952221E3CAP ALUM 220UF 20% 200V SNAP TH |
272 |
|
Datasheet |
059 PLL-SI | Bulk | Active | 220 µF | ±20% | 200 V | 610mOhm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 100 Hz | - | 430 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215831472E3CAP ALUM 4700UF 20% 50V SNAP TH |
2,019 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 4700 µF | ±20% | 50 V | 74mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.24 A @ 100 Hz | - | 57 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL212017222E3CAP ALUM 2200UF 20% 40V AXIAL TH |
640 |
|
Datasheet |
120 ATC | Bulk | Active | 2200 µF | ±20% | 40 V | 34mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 4.17 A @ 10 kHz | 31 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL225646223E3CAP ALUM 22000UF 20% 25V SNAP TH |
142 |
|
Datasheet |
256 PMG-SI | Bulk | Active | 22000 µF | ±20% | 25 V | 27mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.18 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43640E9477M000CAP ALUM 470UF 20% 400V SNAP TH |
236 |
|
Datasheet |
B43640 | Bulk | Active | 470 µF | ±20% | 400 V | 250mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43644A5477M000CAP ALUM 470UF 20% 450V SNAP TH |
280 |
|
Datasheet |
B43644 | Bulk | Not For New Designs | 470 µF | ±20% | 450 V | 220mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 100 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
MAL219376221E3CAP ALUM 220UF 20% 400V SNAP TH |
158 |
|
Datasheet |
193 PUR-SI | Bulk | Active | 220 µF | ±20% | 400 V | 390mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | 2.115 A @ 10 kHz | 230 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43501A5227MCAP ALUM 220UF 20% 450V SNAP TH |
1,454 |
|
Datasheet |
B43501 | Bulk | Active | 220 µF | ±20% | 450 V | 610mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | 730 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LAR2W471MELC45CAP ALUM 470UF 20% 450V SNAP TH |
161 |
|
Datasheet |
LAR | Bulk | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.047 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
861221485017CAP ALUM 330UF 20% 450V SNAP TH |
140 |
|
Datasheet |
WCAP-AIE8 | Tray | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 2.9256 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.693" (43.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
